| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.05mm Polyurethane Red Color Enameled Copper Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | 0.05mm Polyurethane Red Color Enameled Copper Winding Wire |
| Type: | 0.05mm Polyurethane Red Color Enameled Copper Winding Wire | ||
| High Light: | 0.05mm insulated copper winding wire,polyurethane insulated copper winding wire,polyurethane insulated magnet wire |
||

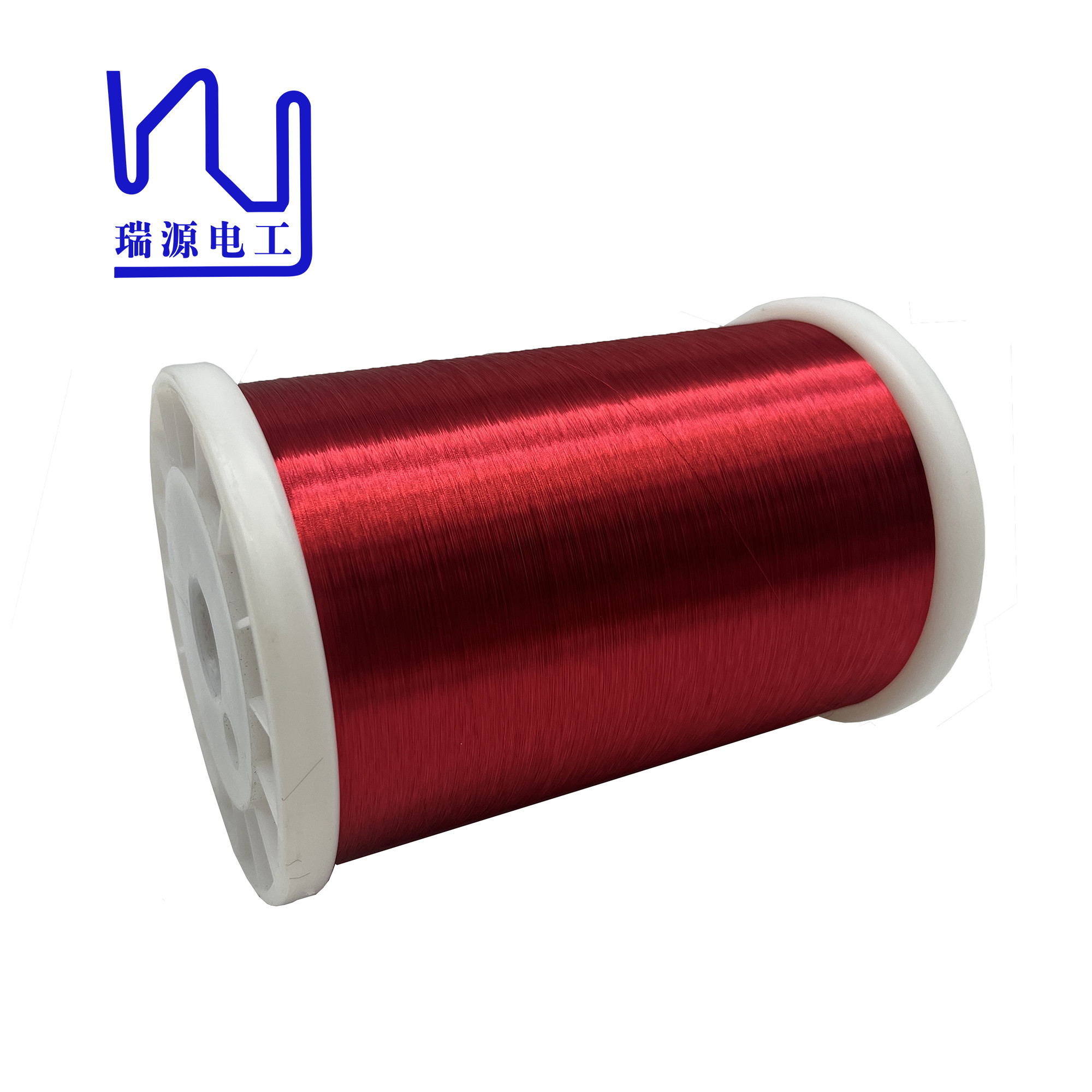

0.05mm Polyurethane Red Color Enameled Copper Winding Wire
We offer different types of enameled copper wires including self-adhesive, hot air self-adhesive and solvent self-adhesive. Self-adhesive enameled copper wire has good stickiness and can be fixed and connected easily and quickly. Hot air self-adhesive enameled copper wire can bond itself after heating and is suitable for various repair and connection operations. Solvent self-adhesive enameled copper wire uses solvent dissolution and solidification to provide reliable connection effects.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
0.05mm Polyurethane Red Color Enameled Copper Winding Wire |
|
Key word |
0.05mm Polyurethane Red Color Enameled Copper Winding Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
