| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | 0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire |
| Type: | 0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire | ||
| High Light: | enamelled copper wire 2uew 155,insulated enamelled copper wire factory,enamel insulated copper wire 0.05mm |
||

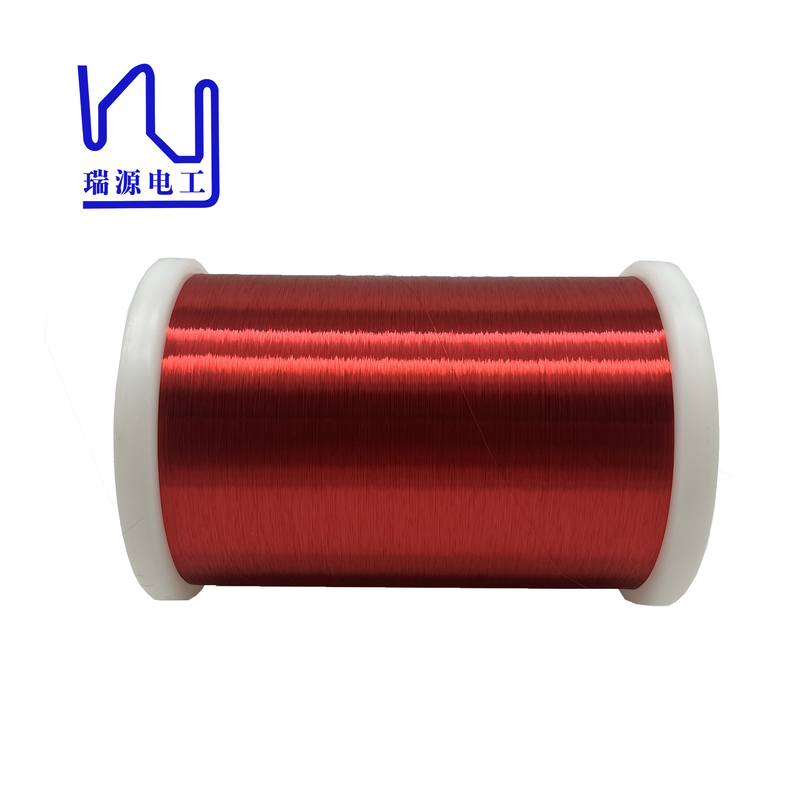

0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire
The enameled copper wire can work in high temperature environments, has good heat resistance, and is not easy to deform or melt. Whether in the fields of automotive electronics, communication equipment or household appliances, this high-temperature enameled copper wire can play an outstanding role.
We offer different types of enameled copper wires including self-adhesive, hot air self-adhesive and solvent self-adhesive. Self-adhesive enameled copper wire has good stickiness and can be fixed and connected easily and quickly.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire |
|
Key word |
0.05mm 2UEW 155 Red Color Magnet Wire Enameled Copper Winding Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
