| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.06mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.06mm |
| Conductor Material: | Copper | Key Word: | 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire |
| Type: | 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire | ||
| High Light: | varnished blue enamel covered wire,56 awg enamel covered wire,enamel covered magnet wire 20 awg |
||

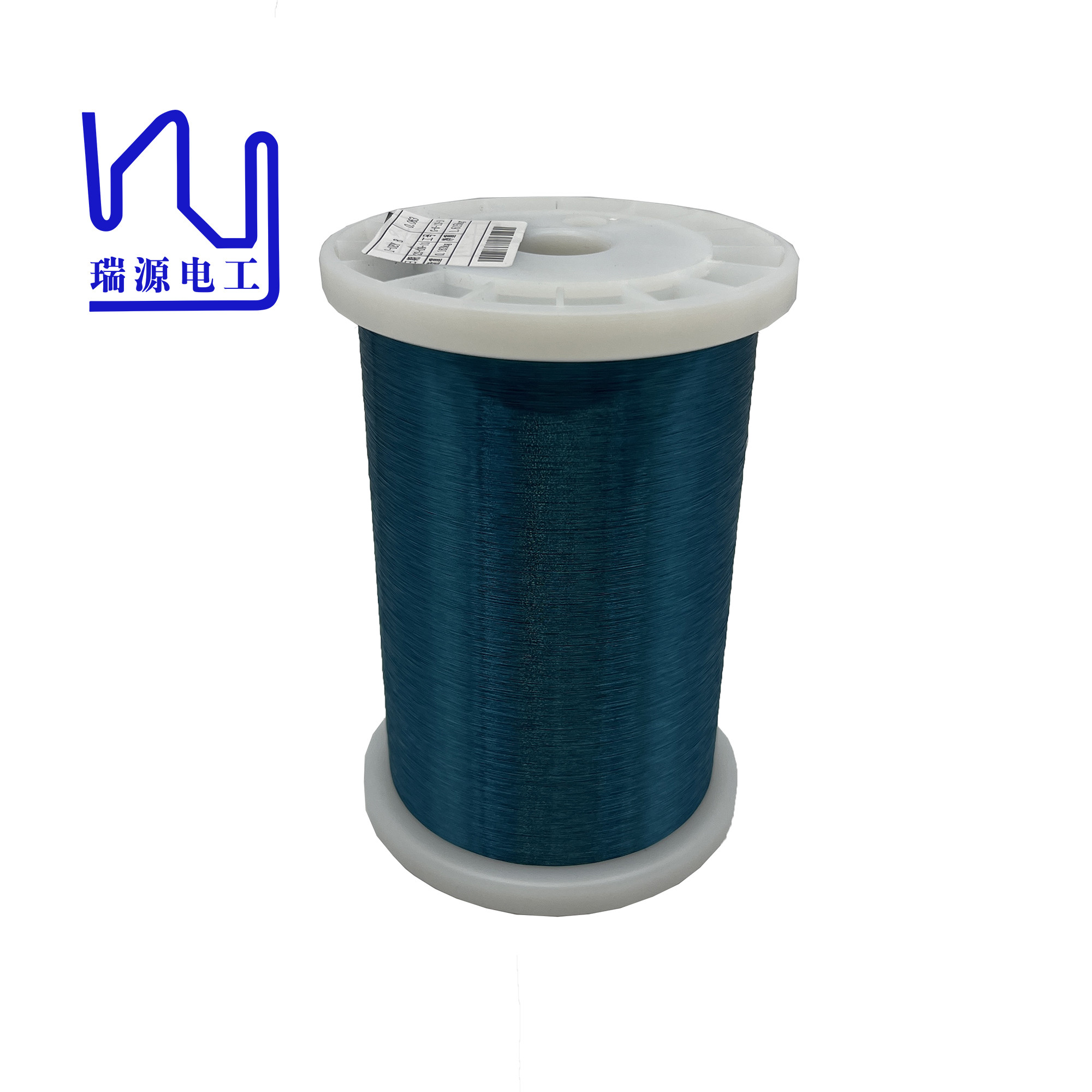

20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire
The enameled copper wire is widely used in electronic equipment manufacturing, electrical products, communication systems, automation equipment and other fields. They can be used for wiring, winding coils, electric heating products, inductors, transformers and other circuit components.
| Test Items | Requirements | Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.060mm ± | 0.002mm | 0.0600 | 0.0600 | 0.0600 |
| Thickness of Insulation | ≥ 0.008mm | 0.0120 | 0.0120 | 0.0110 | |
| Overall Diameter | ≤ 0.074mm | 0.0720 | 0.0720 | 0.0710 | |
| DC Resistance | ≤6.415 Ω/m | 6.123 | 6.116 | 6.108 | |
| Elongation | ≥ 14% | 21.7 | 20.3 | 22.6 | |
| Breakdown Voltage | ≥500V | 1725 | 1636 | 1863 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | ≤ 60(faults)/30m | 0 | 0 | 0 | |
|
Name |
20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire |
|
Key word |
20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.06mm |
