| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.06mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.06mm |
| Conductor Material: | Copper | Key Word: | 2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire |
| Type: | 2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire | ||
| High Light: | insulated polyurethane enameled copper wire,0.06mm polyurethane enameled copper wire,soldering enamel coated magnet wire |
||

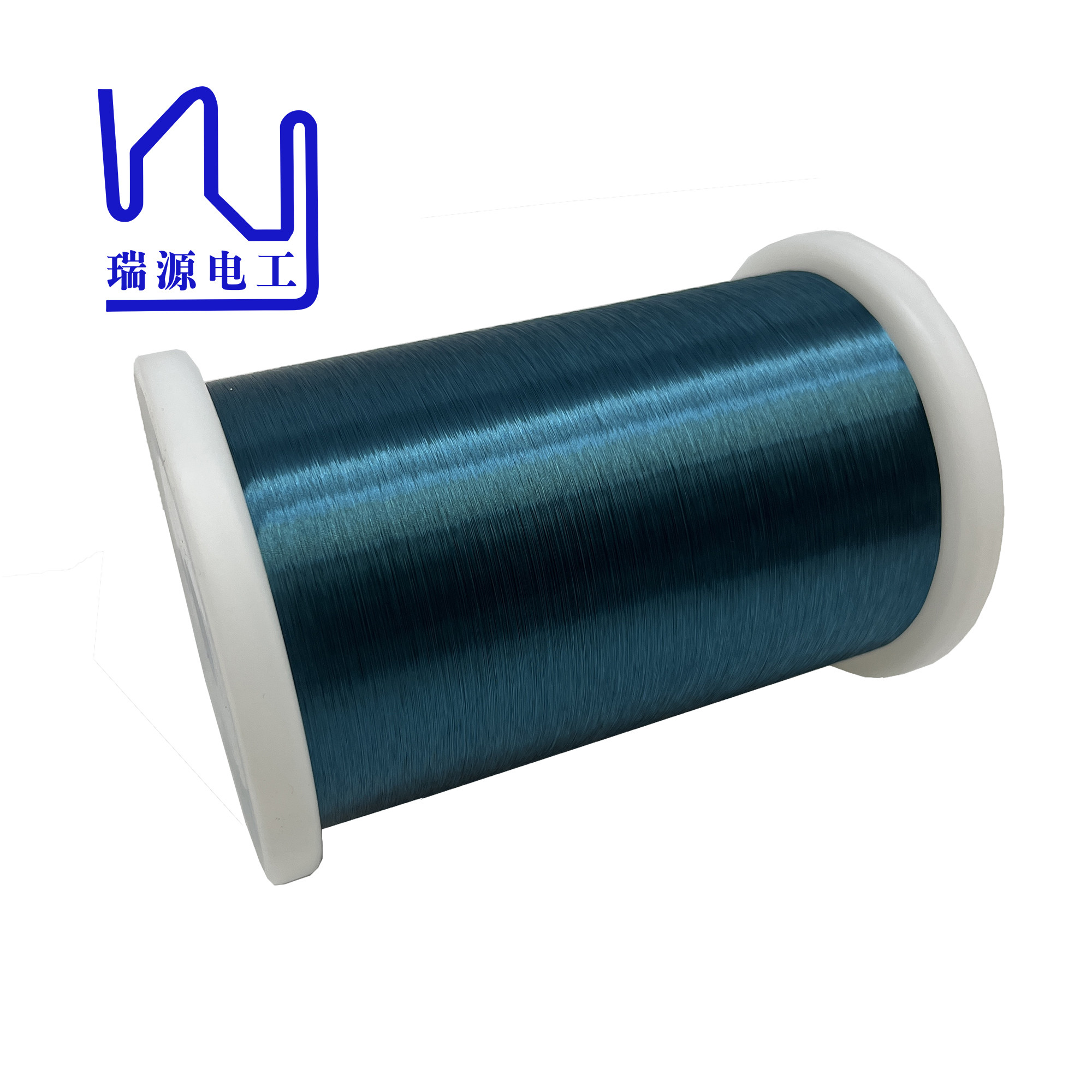

2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire
We provides high-quality enameled copper wire with excellent performance and wide range of applications. The insulating layer of this film is usually made of polyurethane, which can effectively isolate conductive copper wires to prevent current leakage and short circuits.
| Test Items | Requirements | Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.060mm ± | 0.002mm | 0.0600 | 0.0600 | 0.0600 |
| Thickness of Insulation | ≥ 0.008mm | 0.0120 | 0.0120 | 0.0110 | |
| Overall Diameter | ≤ 0.074mm | 0.0720 | 0.0720 | 0.0710 | |
| DC Resistance | ≤6.415 Ω/m | 6.123 | 6.116 | 6.108 | |
| Elongation | ≥ 14% | 21.7 | 20.3 | 22.6 | |
| Breakdown Voltage | ≥500V | 1725 | 1636 | 1863 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | ≤ 60(faults)/30m | 0 | 0 | 0 | |
|
Name |
2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire |
|
Key word |
2UEWF/H 0.06mm Blue Color Polyurethane Enameled Copper Wire Magnet Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.06mm |
