| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC/UDTC Class 155 0.05mm*330 Silk Covered Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC/UDTC Class 155 0.05mm*330 Silk Covered Copper Litz Wire |
| No. Of Strands: | 330 | ||
| High Light: | soldering ustc litz wire,ustc litz wire 0.05 mm,ustc soldering enameled wire |
||

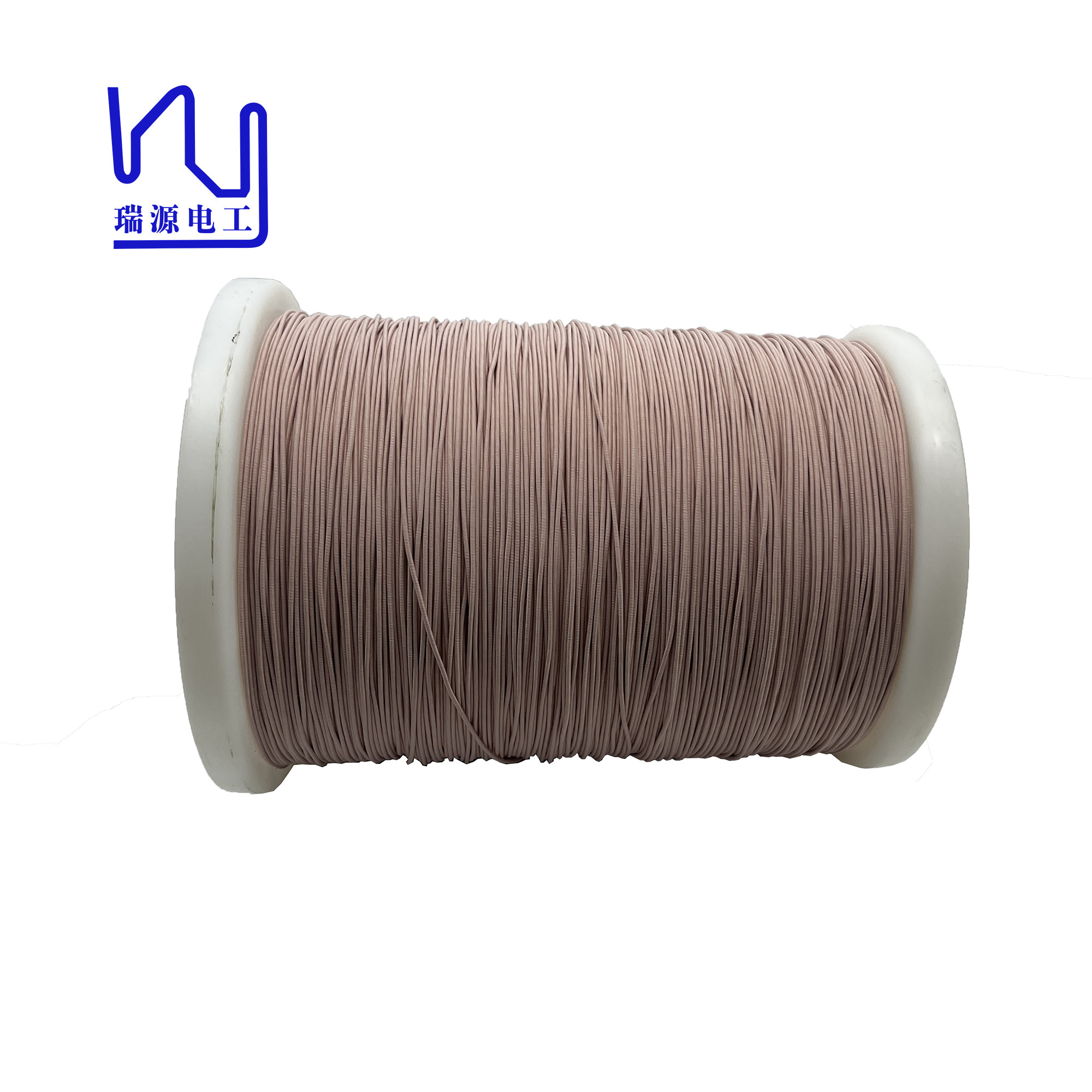

USTC/UDTC Class 155 0.05mm*330 Silk Covered Copper Litz Wire
The nylon jacket also reflects the advantages of its products, it provides good wear resistance and cut resistance, allowing the silik covered Litz wire to be used in harsh industrial environments and preventing the wire sheath from being damaged by external factors. For special needs, polyester yarn and real silk are also optional materials to meet the needs of different industries.
|
Description Conductor diameter*Strand number |
1USTC-F 0.05*330 |
|
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.086 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 66*5 |
| Pitch(mm) | 29±5 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 1.55 |
| Max pin holes faults/6m | 36 | |
| Max resistance (Ω/Km at20℃) | 31.03 | |
| Mini breakdown voltage (V ) | 1300 | |
| Meter per kilogram | 166 | |
|
Key word |
USTC/UDTC Class 155 0.05mm*330 Silk Covered Copper Litz Wire |
||
