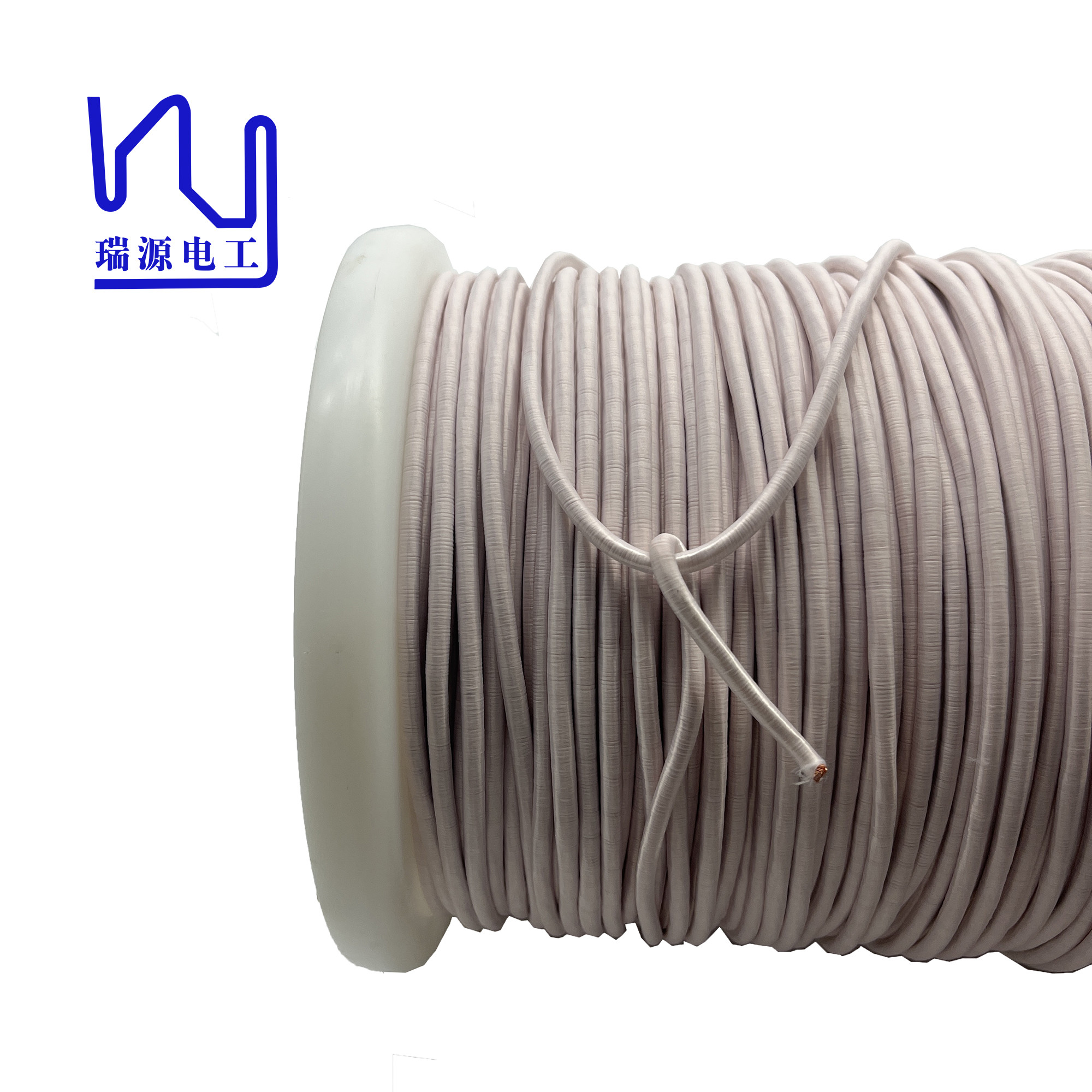

38 Awg Enameled Stranded Ustc Litz Wire Silk Covered

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	38 AWG Enameled Stranded Wire Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	38 AWG Enameled Stranded Wire Silk Covered Litz Wire
No. Of Strands:	75
Highlight:	38 gauge ustc litz wire , enameled ustc litz wire

Product Description

38 AWG Enameled Stranded Wire Silk Covered Litz Wire

The single wire is solderable polyurethane enamel copper conductor.
0.1mm*75 strands

Silk cover an extra layer of insulation and protection to wires, making it ideal for applications that require enhanced signal shielding and noise reduction.

Description Conductor diameter*Strand number		1 USTC- F 0.10*75
Single wire	Conductor diameter( mm)	0. 100
	Conductor diameter tolerance ( mm)	±0.003
	Minimal insulation thickness( mm)	0.009
	Maximal overall diameter ( mm)	0. 140
	Thermal Class(℃)	155
Strand Composition	Strand number	75
	Pitch(mm)	29± 5
	Stranding direction	S
Insulation layer	Category	Nylon
	Material specs( mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%)or thickness( mm), mini	0 02
	Wrapping direction	S
Characteristics	Max O. D ( mm)	1.33
	Max pin holes faults/6m	20
	Max resistance ( Ω/ Km at20℃)	31.75
	Mini breakdown voltage(V )	2000

Key word

38 AWG Enameled Stranded Wire Silk Covered Litz Wire
