Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | Copper litz wire |
Minimum Order Quantity: | 10kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Name: | USTC Litz Wire UEW155 Solderable 0.071mm 0.08mm Natural Silk Served Litz Wire Copper Conductor | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
Conductor: | Copper | Insulation: | Enamel |
Rated Temperature: | 155/180 | Key Word: | USTC Litz Wire UEW155 Solderable 0.071mm 0.08mm Natural Silk Served Litz Wire Copper Conductor |
No. Of Strands: | 84 | ||
Highlight: | uew155 ustc litz wire,solderable ustc litz wire,0.08 mm litz copper wire |

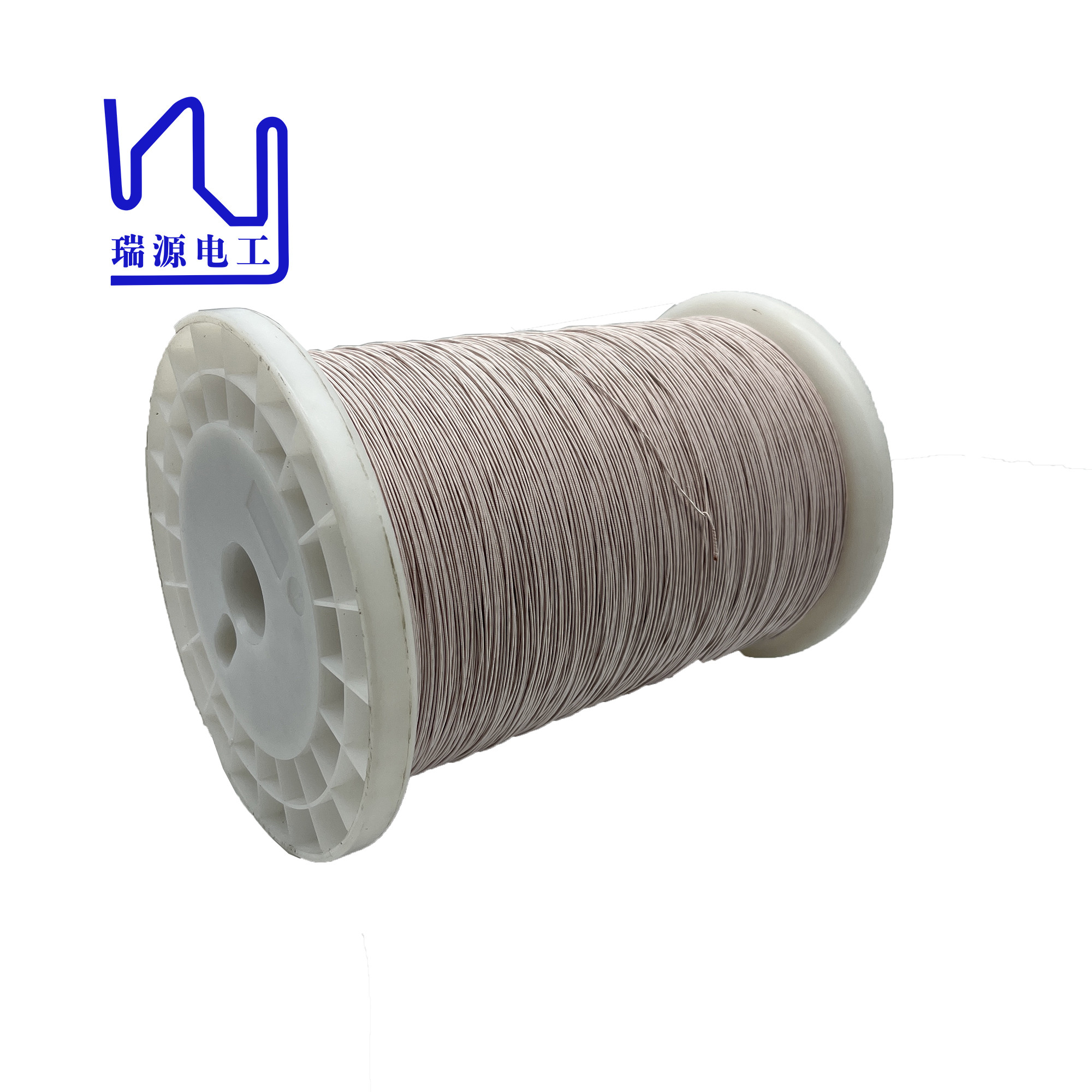

USTC Litz Wire UEW155 Solderable 0.071mm 0.08mm natural silk served litz wire copper conductor
Advantages: Natural silk has many advantages over polyester and nylon.
First of all, silk has excellent insulating properties and thus has a higher degree of safety.
Secondly, compared with polyester and nylon, real silk is softer, smoother, less prone to knotting, and has better wear resistance and tensile strength, which can make the wire more durable and easier to route.
USTC Litz Wire UEW155 Solderable 0.071mm 0.08mm natural silk served litz wire copper conductor | |||
Item | Technical requirement(mm) | Sample 1 | Sample 2 |
Outer diameter | 0.077-0.084 | 0.078 | 0.081 |
Conductor diameter(mm) | 0.071±0.003 | 0.068 | 0.07 |
Pitch(mm) | 29±5 | √ | √ |
Conductor Resistance(Ω/km at 20℃) | Max. 0.05940 | 0.0541 | 0.0540 |
Breakdow Voltage(v) | Min.950 | 3400 | 3000 |
Key word | USTC Litz Wire UEW155 Solderable 0.071mm 0.08mm natural silk served litz wire copper conductor |
