| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | Customized USTC UDTC Class 155C 0.08mm 10 Strands Nylon Silk Covered Wire |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Customized USTC UDTC Class 155C 0.08mm 10 Strands Nylon Silk Covered Wire |
| No. Of Strands: | 10 | ||
| High Light: | customized 0.08 mm wire,nylon silk covered 0.08 mm wire,0.08 mm ustc wire |
||

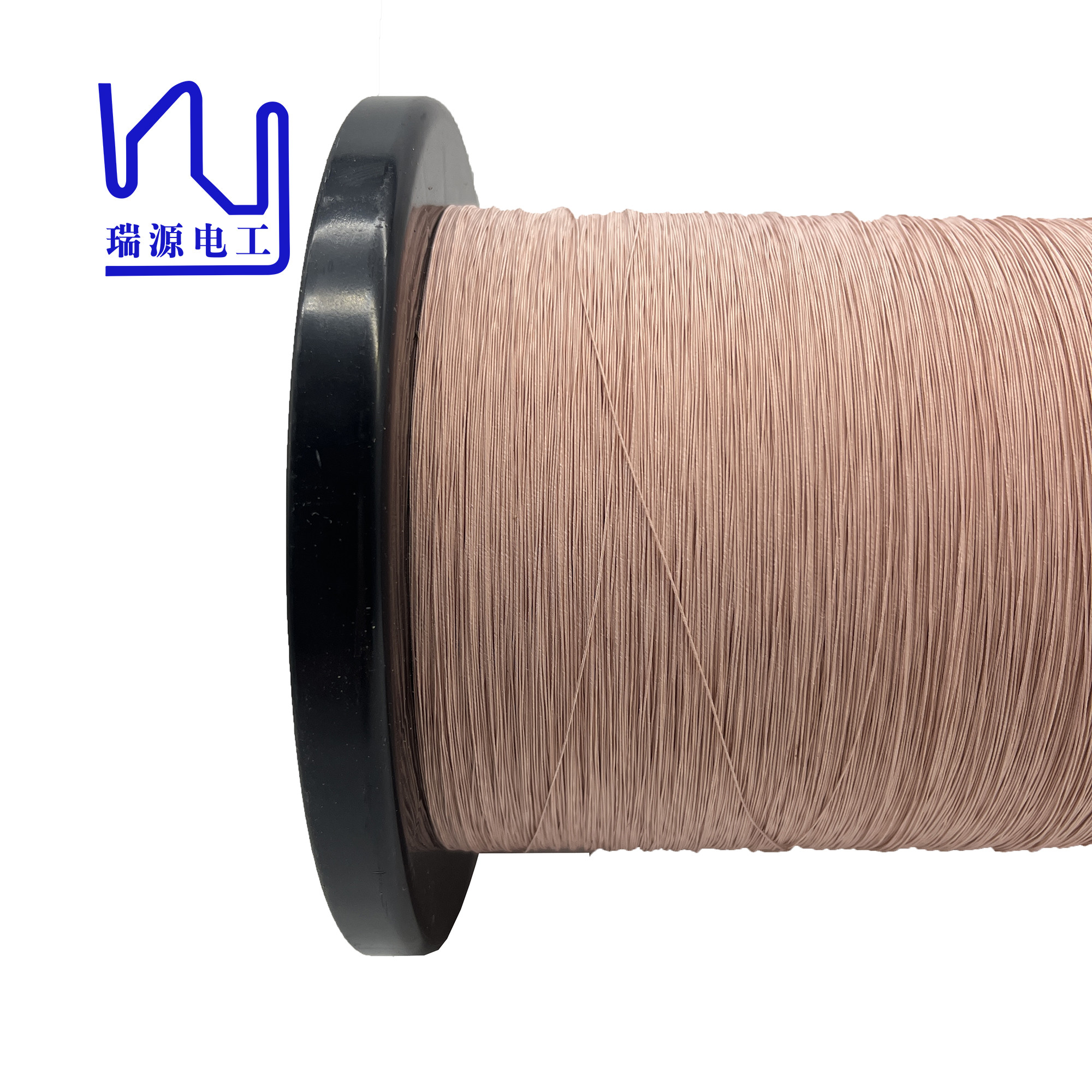

Customized USTC UDTC Class 155C 0.08mm 10 Strands Nylon Silk Covered Wire
Compared with other electronic wires, silk covered Litz wire has a longer service life, is durable, less prone to failure, and has a wide range of applicability. It has high quality, high performance and reliability, and has become one of the widely used wire materials in the electronics field.
|
Customized USTC UDTC Class 155C 0.08mm 10 Strands Nylon Silk Covered Wire |
||
|
Key word:Customized USTC UDTC Class 155C 0.08mm 10 Strands Nylon Silk Covered Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
