| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | High Frequency 0.08mm 2UDTC180 Dacron Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | High Frequency 0.08mm 2UDTC180 Dacron Copper Litz Wire |
| No. Of Strands: | 980 | ||
| High Light: | udtc litz copper wire,0.08 litz copper wire,0.08 mm hf litz wire |
||

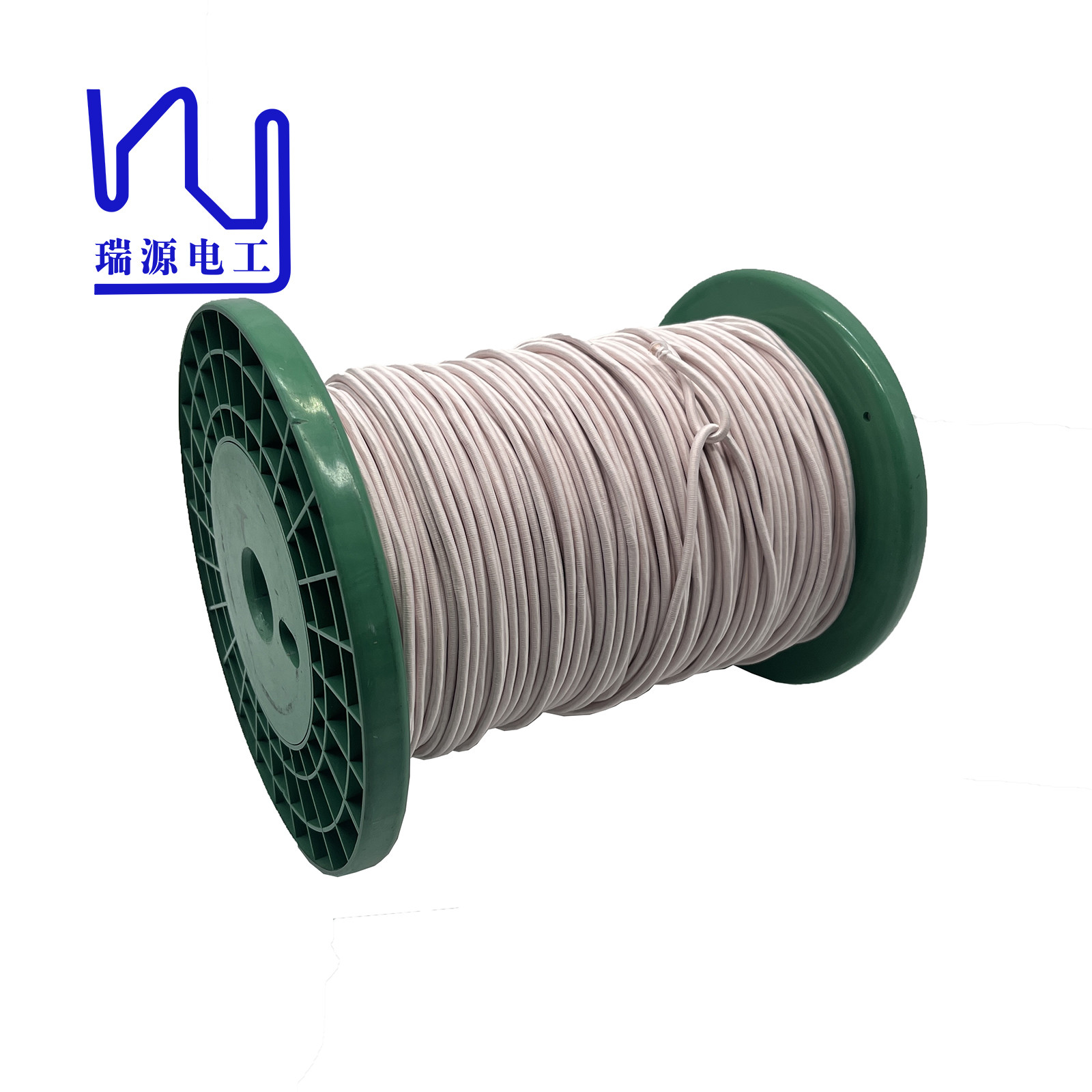

High Frequency 0.08mm 2UDTC180 Dacron Copper Litz Wire
Advantage:
The silk covered litz wir has the following superior properties:
1.High temperature resistance: the thermal grade of this silk covered wire is 180 degrees, which is suitable for various high temperature environments;
2.Can be directly welded: the surface of the single wire is coated with polyurethane, so that it can be directly welded;
3.Strong bearing capacity: 960-strand conductor design enhances its mechanical strength;
|
High Frequency 0.08mm 2UDTC180 Dacron Copper Litz Wire |
||
|
Item |
Standard |
Test Result |
|
Outer diameter of single wire(mm) |
0.087-0.103 |
0.090-0.093 |
|
Conductor diameter(mm) |
0.08±0.003 |
0.078-0.08 |
|
Overall dimension(mm) |
Max.4.36 |
3.35-.3.57 |
|
Pitch(mm) |
40±3 |
√ |
|
Conductor Resistance (Ω/km at 20℃) |
Max.0.003932 |
0.00368 |
|
Breakdown Voltage(V) |
Min. 1100 |
2700 |
|
Pinhole(6m) |
Max. 124 |
45 |
|
Key word |
High Frequency 0.08mm 2UDTC180 Dacron Copper Litz Wire |
|
