Name: 44 Gauge 0.050mm Enamelled Copper Winding Wire For Motor
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: UEWF/H
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.05mm
Conductor Material:	Copper	Key Word:	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor
Highlight:	44 gauge winding wire copper , 0.050mm enamelled copper winding wire , bondable enamelled copper winding wire

Product Description

44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

we provide high quality enameled copper wire, size range from 0.012mm-1.2mm.

Features and advantages of enameled copper wire

1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others

Name
44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

Key word
Enameled copper wire

Insulationh
Enamel

Thermal rating
155/180

Diameter of the enameled copper wire
0.05mm

Type
44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

Characteristics

Test Standard

Conclusion

Bare Wire Diameter

0.05±0.002MM

0.050

Overall Diameter

≤0.081MM

0.077

Conductor Resistance

MAX: 9.528Ω/M

8.754Ω/M

Breakdown voltage

≥3000V

4245V

Solderability

390± 5℃ 2 Secs No Slags

OK

Conclusion

Qualified

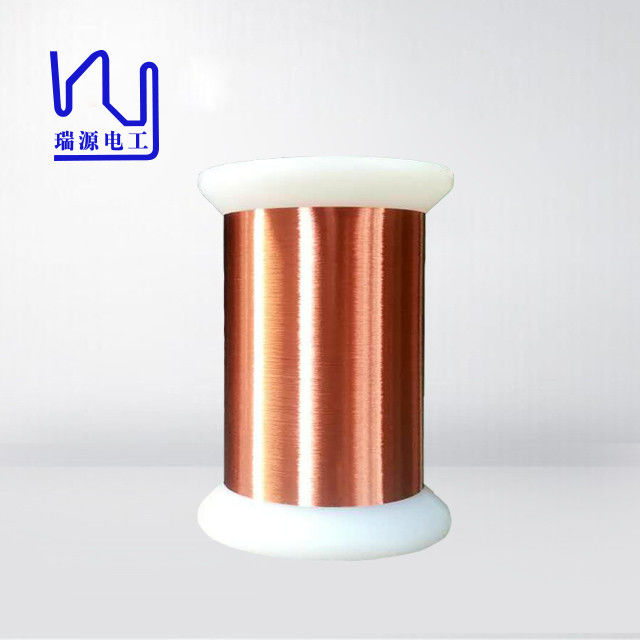

44 Gauge 0.050mm Enamelled Copper Winding Wire For Motor 0

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	UEWF/H

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	3 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

44 Gauge 0.050mm Enamelled Copper Winding Wire For Motor

44 gauge winding wire copper

0.050mm enamelled copper winding wire

bondable enamelled copper winding wire

soft copper wire,

enameled copper magnet wire,

self solderable copper wire

Winding Coils Solderable Magnet Wire Blue / Green / Red / Brown Color

2UEW 155 0.02mm Enamelled Copper Wire

0.011mm Enameled Copper Winding Wire

0.045mm Polyurethane Enameled Magnet Wire

39 AWG 0.09mm 2UEW155 Magnet Winding Wire Enamel Insulated Copper Conductor

0.011mm 2UEW155 Enamel Coated Copper Wire For Motor Winding

Ruiyuan Super Thin Winding Coils Enameled Copper Wire 0.012mm-0.08mm

UEW-F Hot Wind Self Adhesive Self Bonding Enameled Copper Wire For Coils

Name	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.05mm
Type	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

Characteristics	Test Standard	Conclusion
Bare Wire Diameter	0.05±0.002MM	0.050
Overall Diameter	≤0.081MM	0.077
Conductor Resistance	MAX: 9.528Ω/M	8.754Ω/M
Breakdown voltage	≥3000V	4245V
Solderability	390± 5℃ 2 Secs No Slags	OK
Conclusion	Qualified
