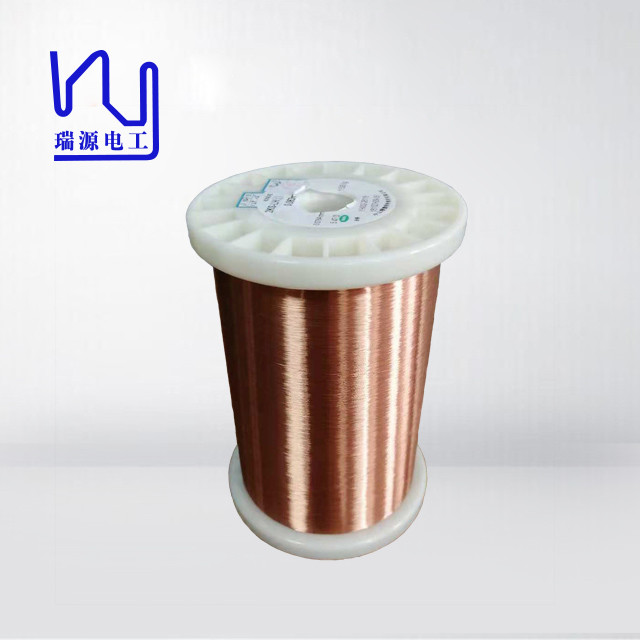

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm
Minimum Order Quantity: 20 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 2uew155 Polyurethane Enameled Copper Wire High Quality Thermal Rating: 155/180
Insulation Material: Amide Imide Diameter: 0.3mm
Conductor Material: Copper Key Word: 2uew155 Polyurethane Enameled Copper Wire High Quality
High Light:

uew soldering magnet wire

,

polyurethane soldering magnet wire

,

0.3mm copper magnet wire


Product Description

2uew155 Polyurethane enameled copper wire high quality



The selection of copper materials and the process of wire drawing are the keys to fine wire drawing. From the material 0.80mm copper wire to 0.011mm, it has to go through several procedures such as middle drawing annealing, small drawing annealing, fine drawing annealing, micro drawing annealing, etc. In order to ensure the softness of the enameled wire, the copper wire cross-sectional area is compressed by 90% every time. Annealed once. The copper wire after drawing must be kept bright, not oxidized and discolored, with oil stains, and can be flat and tightly coiled on the take-up reel. We have stepped up to the step of drawing 0.011mm, and the next step is 0.010mm.

Name 2uew155 Polyurethane enameled copper wire high quality
Key word Enameled copper wire
Insulationh Enamel
Thermal rating 155/180
Diameter of the enameled copper wire 0.3mm
Type 2uew155 Polyurethane enameled copper wire high quality
Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good
OK
OK
OK
Conductor Diameter
03mm±0.003
0.3mm
03mm
OK
Basecoat dimensions
Max.0.337mm
0.334
0.334
OK
Insulation film thickness
Min. 0.011 mm
0.016
0.016
OK
Continuity (50V/30M)PCS
Max.60
0
OK
Flexibility
/
/
OK
Conductor Resistance
Max. 248.8 Ω/km
241.5
241.6
OK
Elongation
≥ 28%
31
31
OK
Breakdown Voltage
≥ 5000 V
6396
OK
Bonding strength (g)
Min. 150
230
OK
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK
