2uew155 0.18mm Super Enamelled Copper Wire For Transformers

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.18mm
Minimum Order Quantity: 20 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 2UEW155 0.18mm Enameled Copper Wire Magnetic Winding Wire For Transformers Thermal Rating: 155/180
Insulation Material: Amide Imide Diameter: 0.28mm
Conductor Material: Copper Key Word: 2UEW155 0.18mm Enameled Copper Wire Magnetic Winding Wire For Transformers
High Light:

0.18mm super enamelled copper wire

,

transformers super enamelled copper wire

,

33 awg plain enamel magnet wire


Product Description

2UEW155 0.18mm Enameled Copper Wire Magnetic Winding Wire For Transformers

Enameled wire is a main variety of winding wire. It consists of conductor and insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. However, it is not easy to produce products that meet both standard requirements and customer requirements. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but all have Mechanical properties, chemical properties, electrical properties, thermal properties of four properties.

Test Items
Requirements
Test Data
1st Sample
2nd Sample
Appearance
Smooth & Clean
OK
OK
Conductor Diameter
0.18mm ±0.003mm
0.181
0.181
Thickness of Insulation
≥ 0.015 mm
0.021
0.022
Overall Diameter
≤ 0.207mm
0.202
0.203
DC Resistance
≤ 0.701Ω/m
0.6615
0.6671
Elongation
≥ 20%
26.1
28.6
Breakdown Voltage
≥2000 V
4589
4723
Pin Hole
≤ 5 faults/5m
0
0
Adherence
No cracks visible
OK
OK
Cut-through
200℃ 2min No breakdown
OK
OK
Heat Shock
175±5℃/30min No cracks
OK
OK
Solderability
390± 5℃ 2 Sec No slags
OK
OK

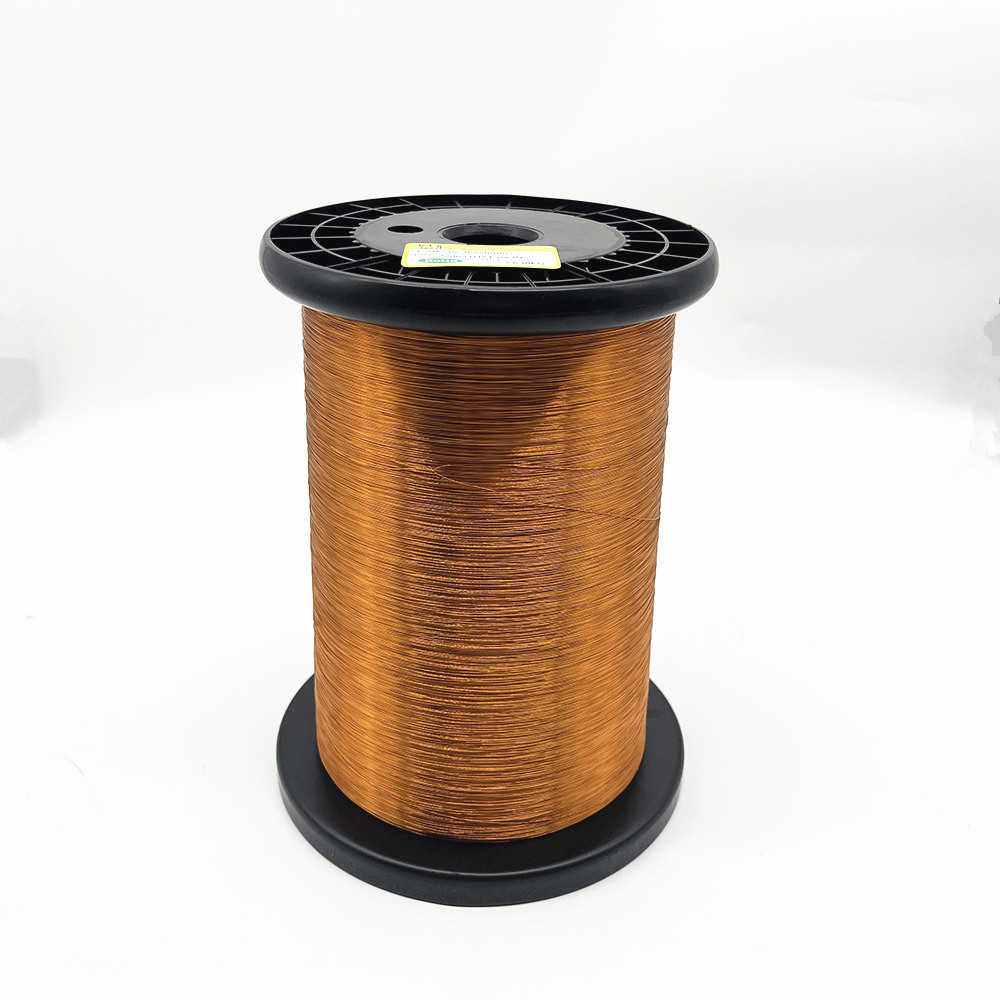

2uew155 0.18mm Super Enamelled Copper Wire For Transformers 0

2uew155 0.18mm Super Enamelled Copper Wire For Transformers 1

2uew155 0.18mm Super Enamelled Copper Wire For Transformers 2

2uew155 0.18mm Super Enamelled Copper Wire For Transformers 3
