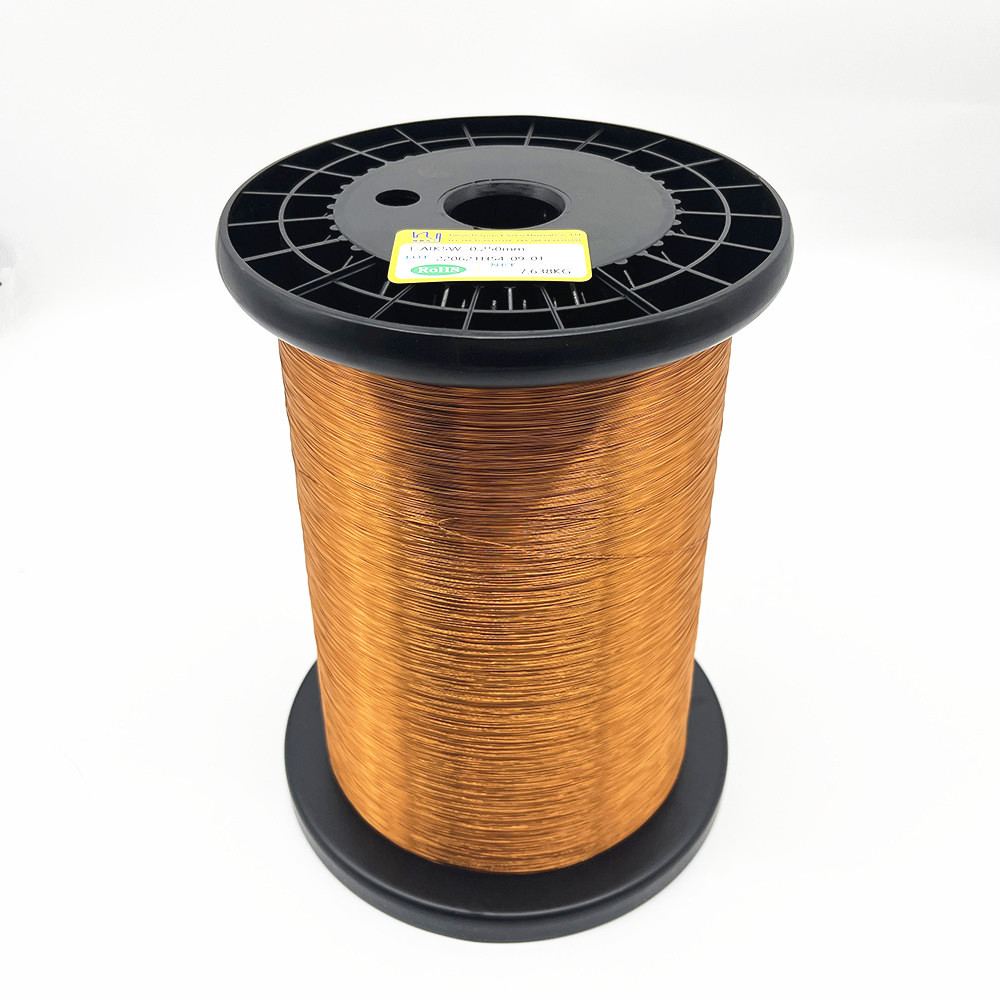

Name: 0.3mm 2uew155 Copper Magnet Wire Self Adhesive Solderable
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.30mm
Price: 24.06 USD
Availability: InStock

0.3mm 2uew155 Copper Magnet Wire Self Adhesive Solderable

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.30mm

Minimum Order Quantity:	20 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.3mm 2UEW155 Self Adhesive Enameled Copper Wire Solderable	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.30mm
Conductor Material:	Copper	Key Word:	0.3mm 2UEW155 Self Adhesive Enameled Copper Wire Solderable
Highlight:	uew copper magnet wire , self adhesive copper magnet wire , 0.3mm magnet wire

Product Description

0.3mm 2UEW155 Self adhesive Enameled Copper Wire Solderable

We provide high quality magnet wire with UEW insulation, size range from 0.011mm to 2.00mm.

As a leading supplier of enamel copper wire, we have earned a reputation for providing a superior customer experience and first-class quality and cooperation.
All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.


			Name
			0.3mm 2UEW155 Self adhesive Enameled Copper Wire Solderable

			Key word
			Enameled copper wire

			Insulationh
			Enamel

			Thermal rating
			155/180

			Diameter of the enameled copper wire
			0.30mm

			Type
			0.3mm 2UEW155 Self adhesive Enameled Copper Wire Solderable

			Characteristics

			Technical requests

			Test Results

			Conclusion

			Sample 1

			Sample 2

			Surface

			Good

			OK

			OK

			OK

			Conductor Diameter

			0.3mm±0.003

			0.3mm

			03mm

			OK

			Basecoat dimensions

			Max.0.337mm

			0.334

			0.334

			OK

			Insulation film thickness

			Min. 0.011 mm

			0.016

			0.016

			OK

			Continuity (50V/30M)PCS

			Max.60

			0

			OK

			Flexibility

			/

			/

			OK

			Conductor Resistance

			Max. 248.8 Ω/km

			241.5

			241.6

			OK

			Elongation

			≥ 28%

			31

			31

			OK

			Breakdown Voltage

			≥ 5000 V

			6396

			OK

			Bonding strength (g)

			Min. 150

			230

			OK

			Adhesive

			Coating layer is good

			OK

			Solder Ability

			390± 5℃ 2 Sec Smooth

			OK

Tag:

0.3mm 2uew155 Copper Magnet Wire Self Adhesive Solderable

uew copper magnet wire

self adhesive copper magnet wire

0.3mm magnet wire

solderable magnet wire,

magnetic coil wire,

self bonding magnet wire

UEW 0.35mm Magnet Wire

AWG 50 / 0.025mm Magnet Wire

44 AWG / 0.05mm Polyurethane Copper Magnet Wire

Enameled Copper Magnet Wire

0.15mm Enamel Coated Copper Winding Wire Enameled Wire Gauge Chart

0.036mm Enameled Copper Magnet Wire For Watch / Coils

46 AWG 0.04mm Enameled Copper Magnet Wire Polyurethane

44 AWG Enameled Copper Wire 1UEW / 2UEW / 3UEW Magnet Wire Direct Soldering

Name	0.3mm 2UEW155 Self adhesive Enameled Copper Wire Solderable
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.30mm
Type	0.3mm 2UEW155 Self adhesive Enameled Copper Wire Solderable

Characteristics	Technical requests	Test Results		Conclusion
Characteristics	Technical requests	Sample 1	Sample 2	Conclusion
Surface	Good	OK	OK	OK
Conductor Diameter	0.3mm±0.003	0.3mm	03mm	OK
Basecoat dimensions	Max.0.337mm	0.334	0.334	OK
Insulation film thickness	Min. 0.011 mm	0.016	0.016	OK
Continuity (50V/30M)PCS	Max.60	0		OK
Flexibility	/	/		OK
Conductor Resistance	Max. 248.8 Ω/km	241.5	241.6	OK
Elongation	≥ 28%	31	31	OK
Breakdown Voltage	≥ 5000 V	6396		OK
Bonding strength (g)	Min. 150	230		OK
Adhesive	Coating layer is good			OK
Solder Ability	390± 5℃ 2 Sec Smooth			OK
