28.5 Awg 2uew155 Enamelled Copper Wire Solderable Magnet Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm
Minimum Order Quantity: 20 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 28.5 AWG 2UEW155 Enameled Copper Wire Solderable Magnet Winding Wire Thermal Rating: 155/180
Insulation Material: Amide Imide Diameter: 0.3mm
Conductor Material: Copper Key Word: 28.5 AWG 2UEW155 Enameled Copper Wire Solderable Magnet Winding Wire
High Light:

magnet enamelled copper wire

,

solderable enamelled copper wire

,

magnet wire 28.5 awg


Product Description

28.5 AWG 2UEW155 Enameled Copper Wire Solderable Magnet Winding Wire



We provide high quality magnet wire with UEW, AIW, EIAIW and PIW insulation, size range from 0.011mm to 2.00mm.



This type of enameled copper wire is mainly used for motor winding, transformer, thermal rating are 155 degree and 180 degree.



Package: 15kg/ spool. Sample is availble.

Name 28.5 AWG 2UEW155 Enameled Copper Wire Solderable Magnet Winding Wire
Key word Enameled copper wire
Insulationh Enamel
Thermal rating 155/180
Diameter of the enameled copper wire 0.3mm
Type 28.5 AWG 2UEW155 Enameled Copper Wire Solderable Magnet Winding Wire
Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good
OK
OK
OK
Conductor Diameter
03mm±0.003
0.3mm
03mm
OK
Basecoat dimensions
Max.0.337mm
0.334
0.334
OK
Insulation film thickness
Min. 0.011 mm
0.016
0.016
OK
Continuity (50V/30M)PCS
Max.60
0
OK
Flexibility
/
/
OK
Conductor Resistance
Max. 248.8 Ω/km
241.5
241.6
OK
Elongation
≥ 28%
31
31
OK
Breakdown Voltage
≥ 5000 V
6396
OK
Bonding strength (g)
Min. 150
230
OK
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK

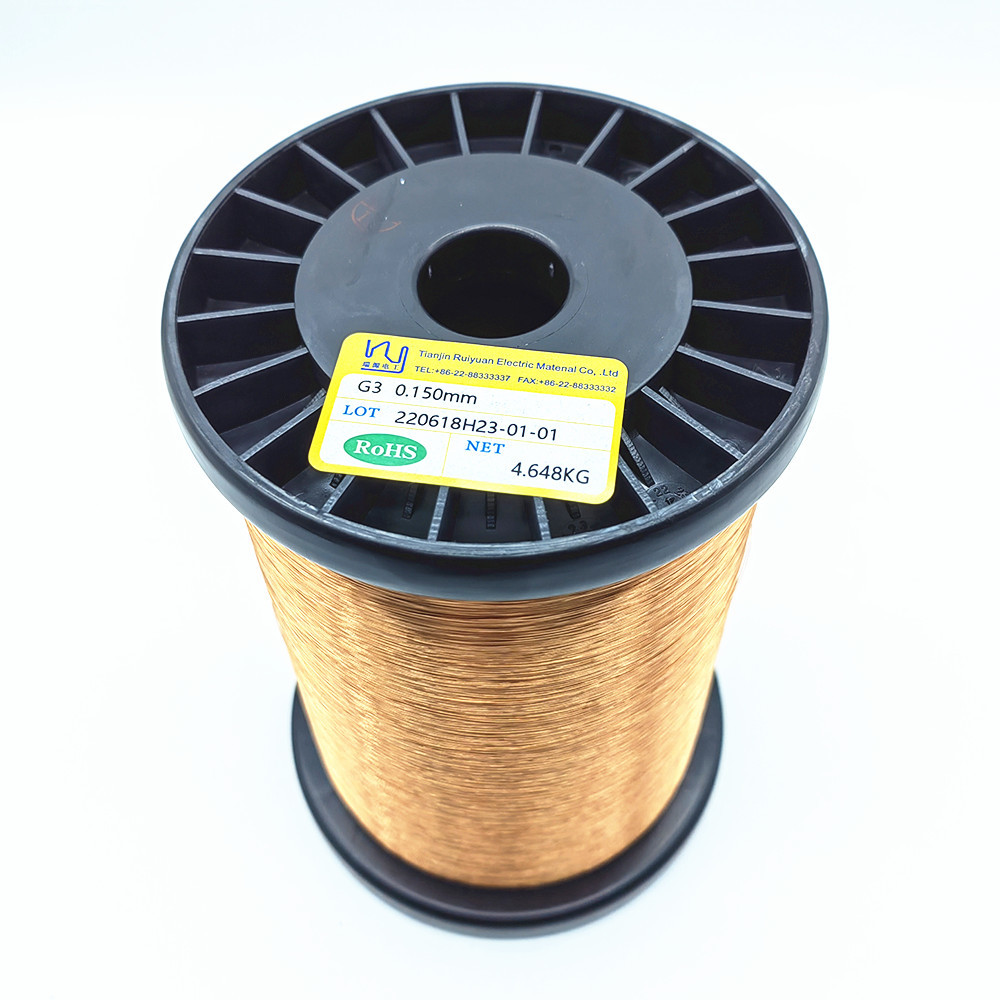

28.5 Awg 2uew155 Enamelled Copper Wire Solderable Magnet Winding 0

28.5 Awg 2uew155 Enamelled Copper Wire Solderable Magnet Winding 1

28.5 Awg 2uew155 Enamelled Copper Wire Solderable Magnet Winding 2

28.5 Awg 2uew155 Enamelled Copper Wire Solderable Magnet Winding 3
