Detail Information

Name:	24 AWG UEWH Thin Enameled Copper Wire For Transformer Winding	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.5mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	24 AWG UEWH Thin Enameled Copper Wire For Transformer Winding
Highlight:	24 awg solderable wire , thin solderable wire , 24 gauge copper winding wire

Product Description

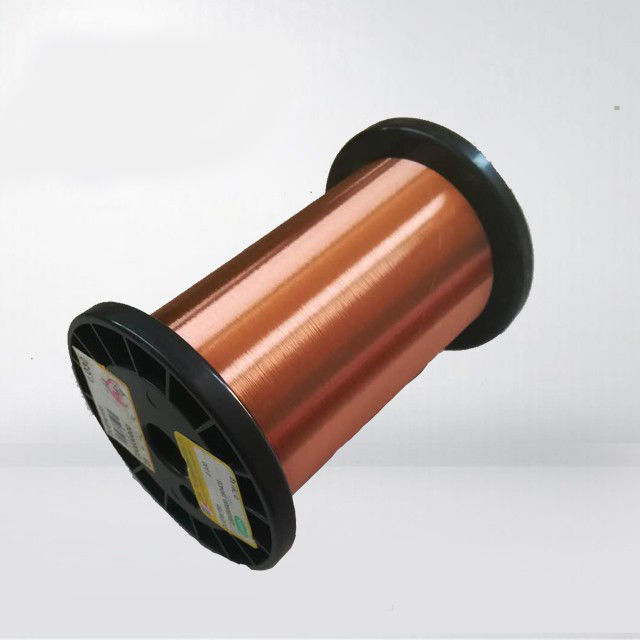

24 AWG UEWH thin enameled copper wire for transformer winding

Polyesterimide/polyamideimide composite layer enameled wire is a widely used heat-resistant enameled wire with a thermal class of 200. High strength, stable electrical properties, good chemical resistance and refrigerant resistance, and strong overload capacity. Widely used in refrigerator compressors, air-conditioning compressors, power tools, explosion-proof motors and motors and electrical appliances used in high temperature, high cold, radiation resistance, overload and other conditions.

Name	24 AWG UEWH thin enameled copper wire for transformer winding
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.5mm
Key word	24 AWG UEWH thin enameled copper wire for transformer winding

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.500±0.004	0.5	0.5
Coating Thickness	≥ 0.043 mm	0.48	0.48
Overall Diameter	≤ 0.555 mm	0.548	0.548
Conductor resistance	≤ 0.08923 Ω/m	0.08726	0.08763
Elongation	≥ 27 %	36	35
Breakdown Voltage	≥ 4300 V	5533	5647
Pinhole Test	≤ 3 holes/5m	0	0
Continuity	≤ 5 holes/30m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2mins no breakdown	OK
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390± 5℃ 2SecSmooth	OK
Solvent resistance	No foam, no swelling, no falling off	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

24 Awg Uewh Thin Solderable Wire For Transformer Winding 0

24 Awg Uewh Thin Solderable Wire For Transformer Winding 1

24 Awg Uewh Thin Solderable Wire For Transformer Winding 2

24 Awg Uewh Thin Solderable Wire For Transformer Winding 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
