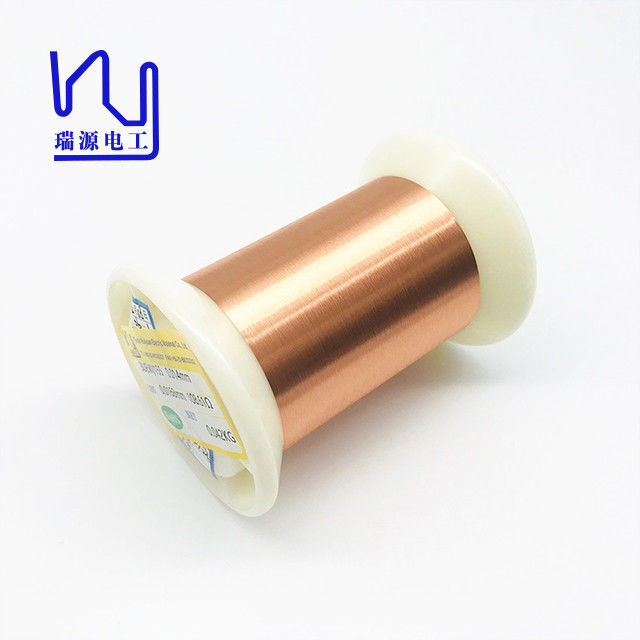

Solderable Enamelled Copper Wire For Relays / Transformer / Solenoids Coil

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	2UEW / 3UEW 45 AWG Solderable Enameled Copper Winding Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.45m
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	solderable enamelled copper wire , relays enamelled copper wire , solderable winding wire of copper

Product Description

Enamelled Copper Wire for Relays/Transformer/Solenoids Coil/Motor winding

We supply enamelled cooper wire range from AWG 20-56.

Under the respective standard (customized to the region where appropriate), the typical technical values are given for the different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimid etc

Name	Enamelled Copper Wire for Relays/Transformer/Solenoids Coil/Motor winding
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.045mm
Type	Enameled copper wire

Test Items	Requirements	Test Data
Test Items	Requirements	1st Sample	2nd Sample
Appearance	Smooth & Clean	OK	OK
Conductor Diameter	0.045mm ±0.001mm	0.045	0.045
Thickness of Insulation	≥ 0.006 mm	0.009	0.008
Overall Diameter	≤ 0.056 mm	0.054	0.053
DC Resistance	≤ 11.339 Ω/m	10.74	10.698
Elongation	≥ 11%	22	20
Breakdown Voltage	≥350 V	1764	1567
Pin Hole	≤ 5 faults/5m	0	0
Adherence	No cracks visible	OK	OK
Cut-through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Solderable Enamelled Copper Wire For Relays / Transformer / Solenoids Coil 0

Solderable Enamelled Copper Wire For Relays / Transformer / Solenoids Coil 1

Solderable Enamelled Copper Wire For Relays / Transformer / Solenoids Coil 2

Solderable Enamelled Copper Wire For Relays / Transformer / Solenoids Coil 3
