Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	Customized 0.02mm Ultra Fine Enameled Copper Wire Polyurethane Copper
Color:	Red/Green/Normal	Diameter:	0.02m
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
High Light:	customized enamelled copper wire , enamelled copper wire ultra fine , 0.02mm enamel coated copper wire

Product Description

Customized 0.02mm Ultra Fine Enameled Copper Wire Polyurethane Copper

Characteristics of enameled copper wire

Description:Polyyrethane Enameled Copper WireDesignation:0UEW/1UEW/2UEW/3UEW enameled copper wire
Thermal Grade:155~180℃
Diameter:0.012mm~0.4mm enameled copper wire
Feature of enameled copper wire
√Directly solderable
√Flexibility
√Good insulated
√Uniform thickness of insulation,evenly woumd on spool
√Various coloring options:Natural,Red, Green,Blue,Black

Name	IEC Standard Grade 2 0.011mm Enameled Copper Motor Winding Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.025mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.02±	0.001	0.02	0.02	0.02	OK
			0.001
3	Overall diameter	≤ 0.027 mm		0.026	0.026	0.026	OK
4	Insulation thickness	≥0.004mm		0.006	0.006	0.006	OK
5	Elongation	≥ 7 %		11	11	11	ok
6	Enamel continuity	≤ 5 hole/5m		0	0	0	OK
7	Breakdown voltage	≥250V		565	565	565	OK
8	Electrical Resistance	≤60.81Ω/m		56.245	56.245	56.245	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Aprroved
2	Heat Shock		200℃/2min no crack		OK
3	Solder Ability		390℃±5C/2S Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

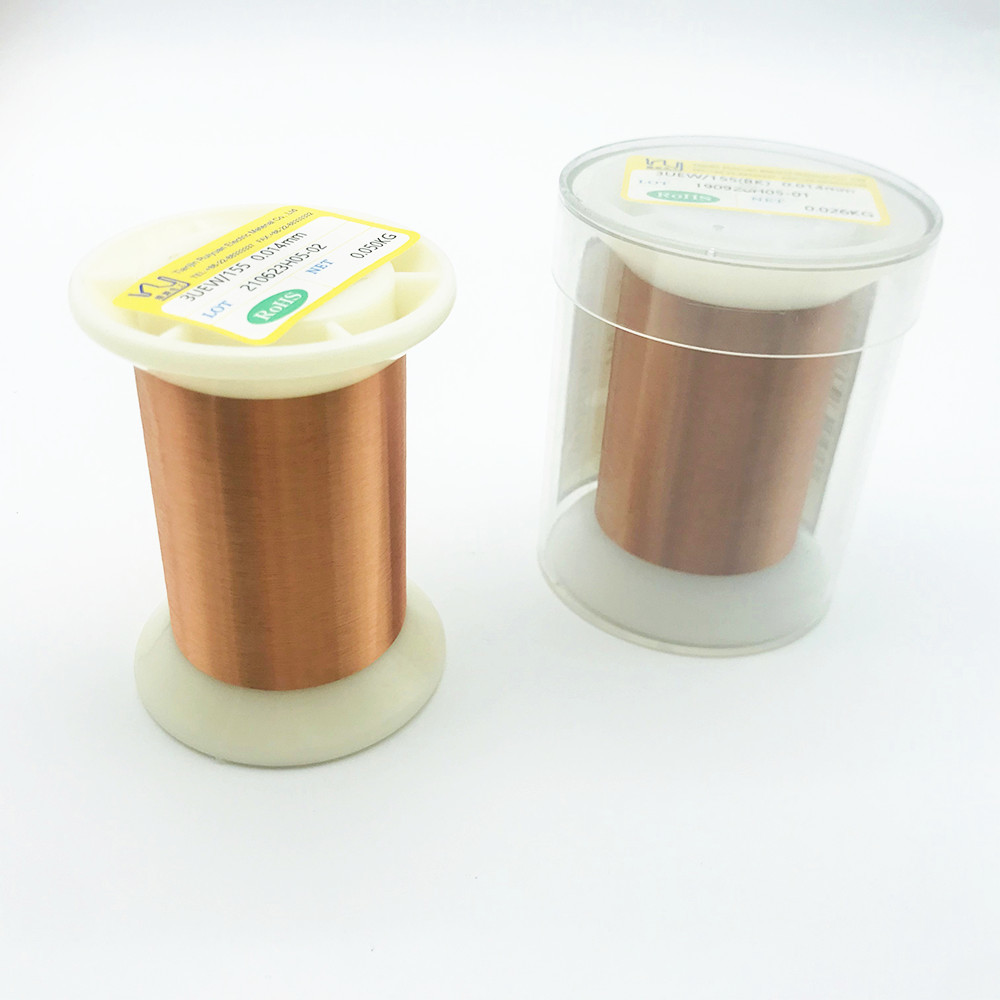

Customized 0.02mm Enamelled Copper Wire Ultra Fine Polyurethane 0

Customized 0.02mm Enamelled Copper Wire Ultra Fine Polyurethane 1

Customized 0.02mm Enamelled Copper Wire Ultra Fine Polyurethane 2

Customized 0.02mm Enamelled Copper Wire Ultra Fine Polyurethane 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
