Name: 50 Awg Winding Wire Copper Ultra Fine Uew 155
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: UEW
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	50 AWG Ultra Fine UEW 155 Enameled Copper Winding Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.025mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	50 awg winding wire copper , ultra fine winding wire copper , uew 155 enamelled copper wire

Product Description

50 AWG Ultra Fine UEW 155 Enameled Copper Winding Wire

Features of enameled copper wire

Solid enough, the enameled copper wire is not easy to be broken

Insulation thickness of enameled copper wire can be customized

Enameled copper wire can reach almost 0 pinhole

High consistency of the enameled copper wire.

The enameled copper wire is even and tidy, which is convenient for users to wind

Low temperature soldering

Bonding method options: Hot air,Solvent and others

Name	50 AWG Ultra Fine UEW 155 Enameled Copper Winding Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.025mm
Type	Enameled copper wire

ype" 3UEW 155 0.025mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Appearance	Smooth&Clean	OK	OK
Conductor Diameter	0.025±0.001mm	0.0250	0.0250
Thickness of insulation	≥ 0.003 mm	0.0050	0.0040
Overall Diameter	≤ 0.032 mm	0.0300	0.0290
DC Resistance	≤ 38.112 Ω/m	35.523	35.489
Elongation	≥9%	15	13
Breakdown Voltage	≥ 190 V	551	399
Pinhole Test	≤8 hole/5m	0	1
Adherence	No cracks visible	OK	OK
Cut- through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min no cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

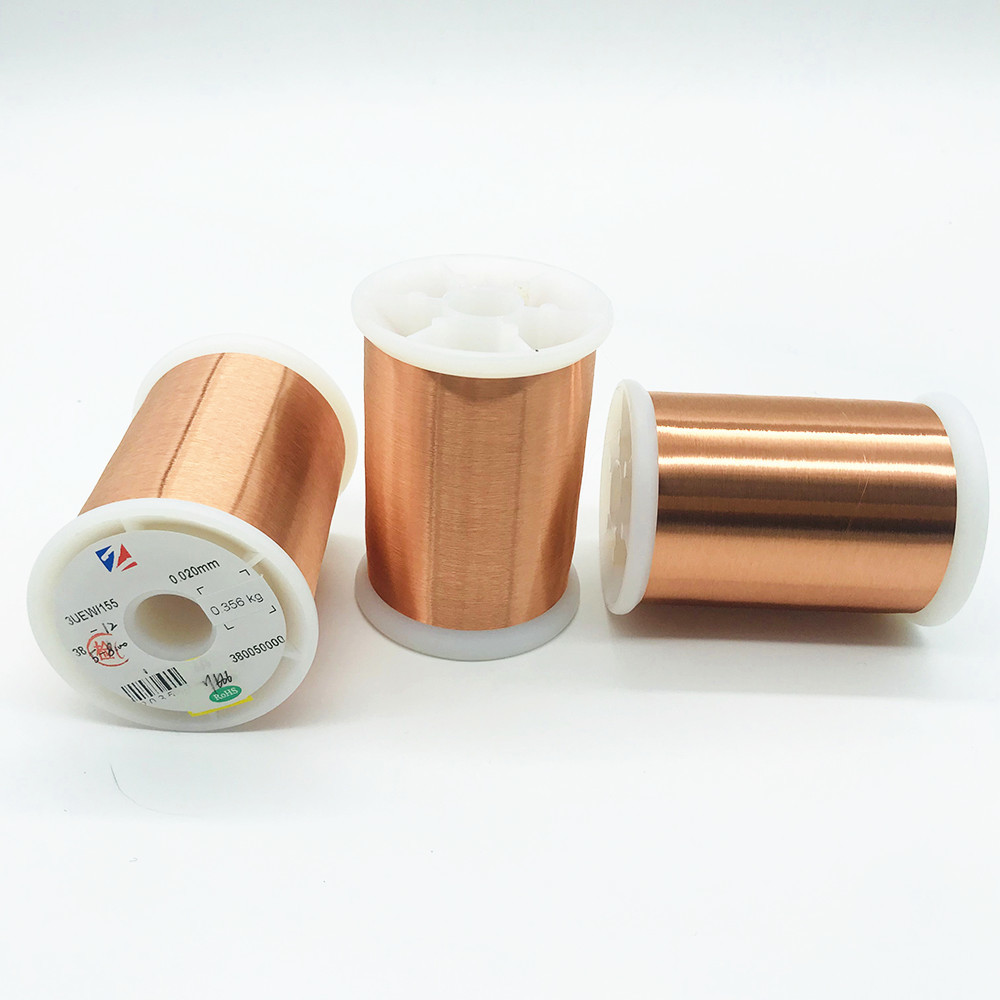

50 Awg Winding Wire Copper Ultra Fine Uew 155 0

50 Awg Winding Wire Copper Ultra Fine Uew 155 1

50 Awg Winding Wire Copper Ultra Fine Uew 155 2

50 Awg Winding Wire Copper Ultra Fine Uew 155 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
