Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	AWG 42 Class 155 Solderable Magnet Wire Enameled Copper Wire
Color:	Red/Green/Normal	Diameter:	0.071mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
High Light:	solderable insulated copper winding wire , awg 41 insulated copper winding wire , awg 41 enamelled copper wire

Product Description

AWG 42 Class 155 Solderable Magnet Wire Enameled Copper Wire

Size of enameled copper wire from 0.011mm-0.8mm, class 155/ class 180, the enameled copper wire is widely used in transformer, motor and other electric devices.We offer samples of enameled copper wire, also with self bonding layer, hot wind and solvent. around 5-10kg/spool. The insulation of the enameled copper wire is polyurethane.

Name	AWG 41 Class 155 Solderable Magnet Wire Enameled Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.071±	0.002	0.071	0.071	0.071	OK
			0.002
3	Insulation thickness	≥ 0.007 mm		0.0110	0.0110	0.0110	OK
4	Overall diameter	≤ 0.085mm		0.0820	0.0820	0.0820	OK
5	Electrical Resistance	≤4.611Ω/m		4.278	4.254	4.253	OK
6	Elongation	≥ 15 %		19	18	18	OK
7	Breakdown voltage	≥400 V		1542	1442	1486	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 60 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

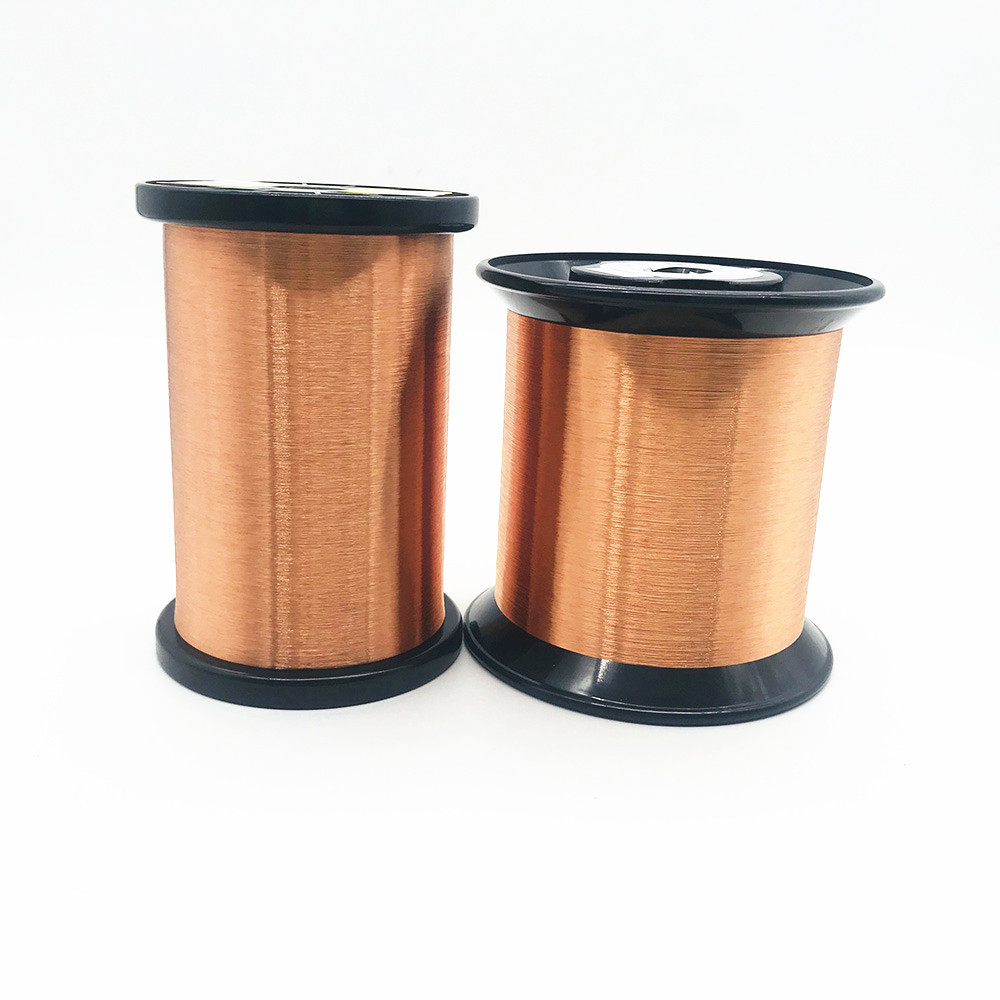

Awg 41 Class 155 Insulated Copper Winding Wire Solderable Magnet 0

Awg 41 Class 155 Insulated Copper Winding Wire Solderable Magnet 1

Awg 41 Class 155 Insulated Copper Winding Wire Solderable Magnet 2

Awg 41 Class 155 Insulated Copper Winding Wire Solderable Magnet 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
