Detail Information

Name:	High Quality Grade 2 Ultra Fine 0.071mm Enameled Copper Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.071mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	0.071mm enamelled copper wire , guitar pickup winding enamelled copper wire , 0.071mm guitar pickup winding wire

Product Description

High Quality Grade 2 Ultra Fine 0.071mm Enameled Copper Wire

Ruiyuan enameled copper wire including Anti-corona enameled round copper wires, Self-fluxing polyurethane enameled round copper wire, Multilayer compound enameled round copper wires for air conditioner compressors, Polyester enameled wires with a temperature index of 180 centigrade, these products are widely applied in the refrigerator, air conditioner compressors, TV FBT, DY and electrical tools, special motors and electrical appliances and so on.

Name	Super Thin 0.071mm Class 155 Enameled Copper Wire For Motor Winding
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.071±	0.002	0.071	0.071	0.071	OK
			0.002
3	Insulation thickness	≥ 0.007 mm		0.0110	0.0110	0.0110	OK
4	Overall diameter	≤ 0.085mm		0.0820	0.0820	0.0820	OK
5	Electrical Resistance	≤4.611Ω/m		4.278	4.254	4.253	OK
6	Elongation	≥ 15 %		19	18	18	OK
7	Breakdown voltage	≥400 V		1542	1442	1486	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 60 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

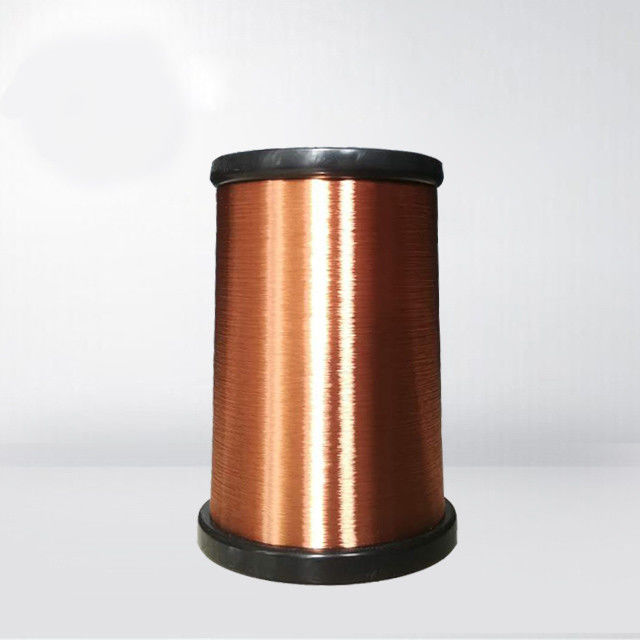

Grade 2 Ultra Fine 0.071mm Enamelled Copper Wire Guitar Pickup Winding 0

Grade 2 Ultra Fine 0.071mm Enamelled Copper Wire Guitar Pickup Winding 1

Grade 2 Ultra Fine 0.071mm Enamelled Copper Wire Guitar Pickup Winding 2

Grade 2 Ultra Fine 0.071mm Enamelled Copper Wire Guitar Pickup Winding 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Grade 2 Ultra Fine 0.071mm Enamelled Copper Wire Guitar Pickup Winding

0.071mm enamelled copper wire

guitar pickup winding enamelled copper wire

0.071mm guitar pickup winding wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
