Detail Information

Name:	48 AWG Polyurethane Super Thin Winding Wire Enameled Copper WireAWG 41 G2 0.071mm Enameled Copper Magnet Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.071mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	awg 41 enamelled copper wire , 0.071mm enamelled copper wire , magnet enamelled copper winding wire

Product Description

AWG 41 G2 0.071mm Enameled Copper Magnet Wire

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.071mm round enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 155,180 degree

Diameters of enameled copper wire ranging from 0,011mm to 1.2 mm, which is 58 - 24 AWG. The enameled copper Wire thinner than 0,04 mm or 46 AWG is typically called ultrafine enameled copper wire.



Name	AWG 41 G2 0.071mm Enameled Copper Magnet Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.071±	0.002	0.071	0.071	0.071	OK
			0.002
3	Insulation thickness	≥ 0.007 mm		0.0110	0.0110	0.0110	OK
4	Overall diameter	≤ 0.085mm		0.0820	0.0820	0.0820	OK
5	Electrical Resistance	≤4.611Ω/m		4.278	4.254	4.253	OK
6	Elongation	≥ 15 %		19	18	18	OK
7	Breakdown voltage	≥400 V		1542	1442	1486	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 60 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

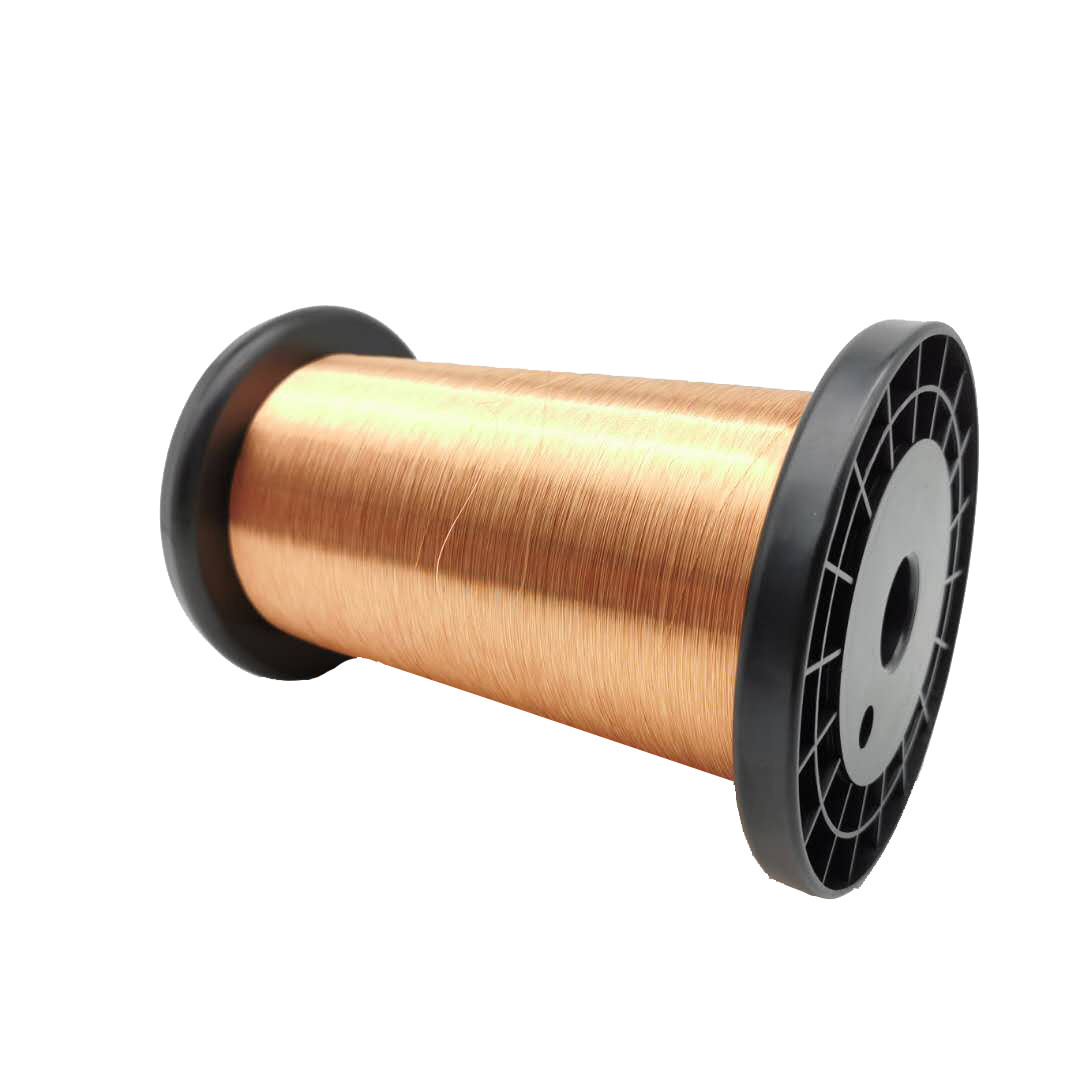

Awg 41 G2 0.071mm Enamelled Copper Wire Magnet 0

Awg 41 G2 0.071mm Enamelled Copper Wire Magnet 1

Awg 41 G2 0.071mm Enamelled Copper Wire Magnet 2

Awg 41 G2 0.071mm Enamelled Copper Wire Magnet 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
