Detail Information

Name:	48 AWG Polyurethane Super Thin Winding Wire Enameled Copper Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.06mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	48 awg enamelled copper winding wire , super thin enamelled copper winding wire , insulation polyurethane enamelled copper wire

Product Description

48 AWG Polyurethane Super Thin Winding Wire Enameled Copper Wire

Diameters of enameled copper wire ranging from 0,011mm to 1.2 mm, which is 58 - 24 AWG. The enameled copper Wire thinner than 0,04 mm or 46 AWG is typically called ultrafine enameled copper wire.

Enamels such as Polyurethane, Polyesterimide, Polyamidimide, Polyimide of different temperature classes and self bonding enamel.

Name	48 AWG Polyurethane Super Thin Winding Wire Enameled Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.060±	0.002	0.0600	0.0600	0.0600	OK
			0.002
3	Insulation thickness	≥ 0.008 mm		0.0100	0.0120	0.0110	OK
4	Overall diameter	≤ 0.074 mm		0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤6.415Ω/m		6.009	6.081	6.013	OK
6	Elongation	≥ 14 %		21.7	22.6	21.9	OK
7	Breakdown voltage	≥500 V		1769	1961	1886	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 15 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

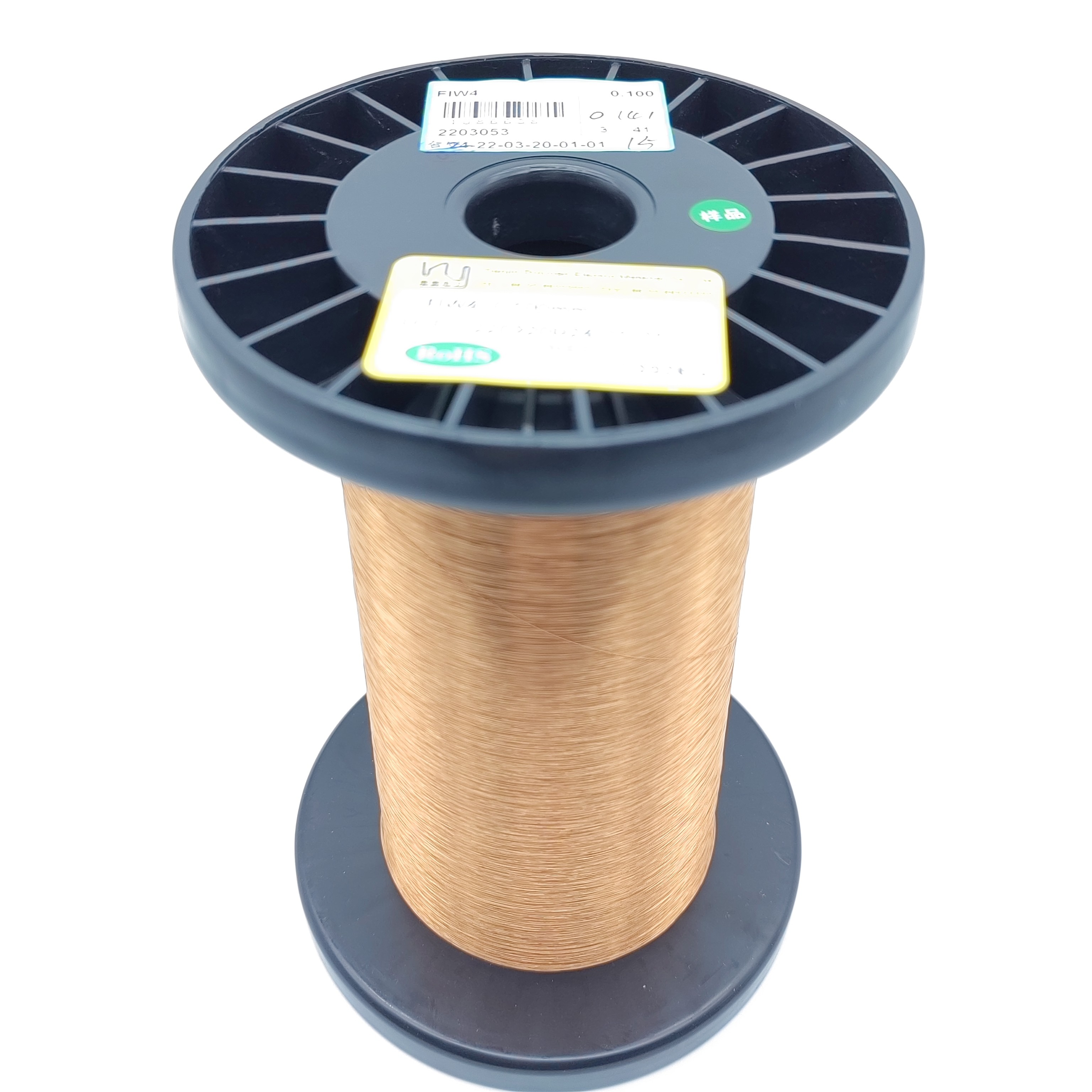

48 Awg Enamelled Copper Winding Wire Polyurethane Super Thin 0

48 Awg Enamelled Copper Winding Wire Polyurethane Super Thin 1

48 Awg Enamelled Copper Winding Wire Polyurethane Super Thin 2

48 Awg Enamelled Copper Winding Wire Polyurethane Super Thin 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
