Detail Information

Name:	UEW 155 Degree Solderable Magnet Wire Enameled Copper Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.06mm
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	uew super enamelled copper wire , solderable magnet super enamelled copper wire , 155 degree enamelled copper wire

Product Description

UEW 155 Degree Solderable Magnet Wire Enameled Copper Wire

Size of enameled copper wire range from 0.011mm-0.8mm, class 155/ class 180, the enameled copper wire widely used in transformer, motor and other electric devices.We offer enameled copper wire samples, around 5-10kg/spool.

If you demand a customized enameled copper wire, please feel free to contact us.

Name	UEW 155 Degree Solderable Magnet Wire Enameled Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.060±	0.002	0.0600	0.0600	0.0600	OK
3	Insulation thickness	≥ 0.008 mm		0.0100	0.0120	0.0110	OK
4	Overall diameter	≤ 0.074 mm		0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤6.415Ω/m		6.009	6.081	6.013	OK
6	Elongation	≥ 14 %		21.7	22.6	21.9	OK
7	Breakdown voltage	≥500 V		1769	1961	1886	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 15 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

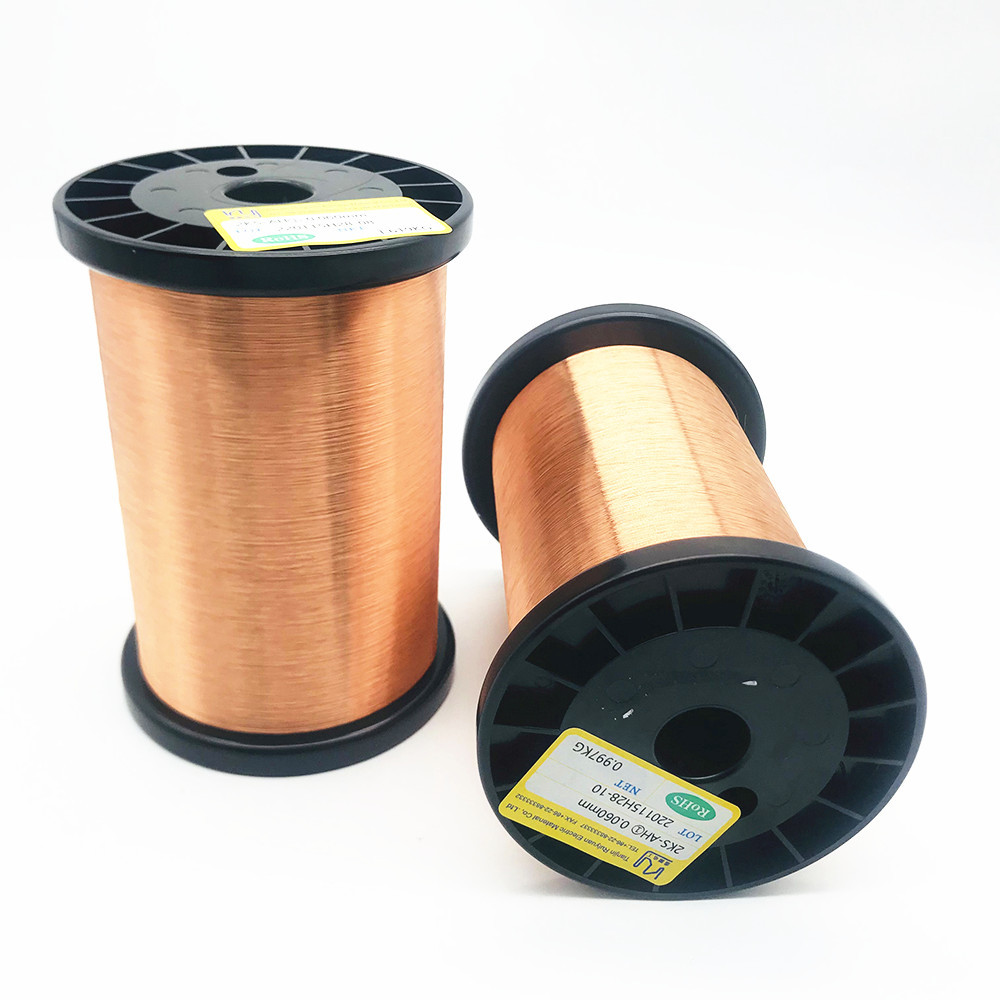

Uew 155 Degree Super Enamelled Copper Wire Solderable Magnet 0

Uew 155 Degree Super Enamelled Copper Wire Solderable Magnet 1

Uew 155 Degree Super Enamelled Copper Wire Solderable Magnet 2

Uew 155 Degree Super Enamelled Copper Wire Solderable Magnet 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
