2uew 155 / 180 0.05mm High Temp Magnet Wire Polyurethane Enameled Copper

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.05mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Magnet Wire Diameter: 0.05mm
Insulation: Polyurethane Thermal Rating: 155/180
Conductor Material: Copper Size Range: 0.011mm-1.2mm
High Light:

0.05mm high temp magnet wire

,

polyurethane high temp magnet wire

,

2uew ultra high temperature magnet wire


Product Description

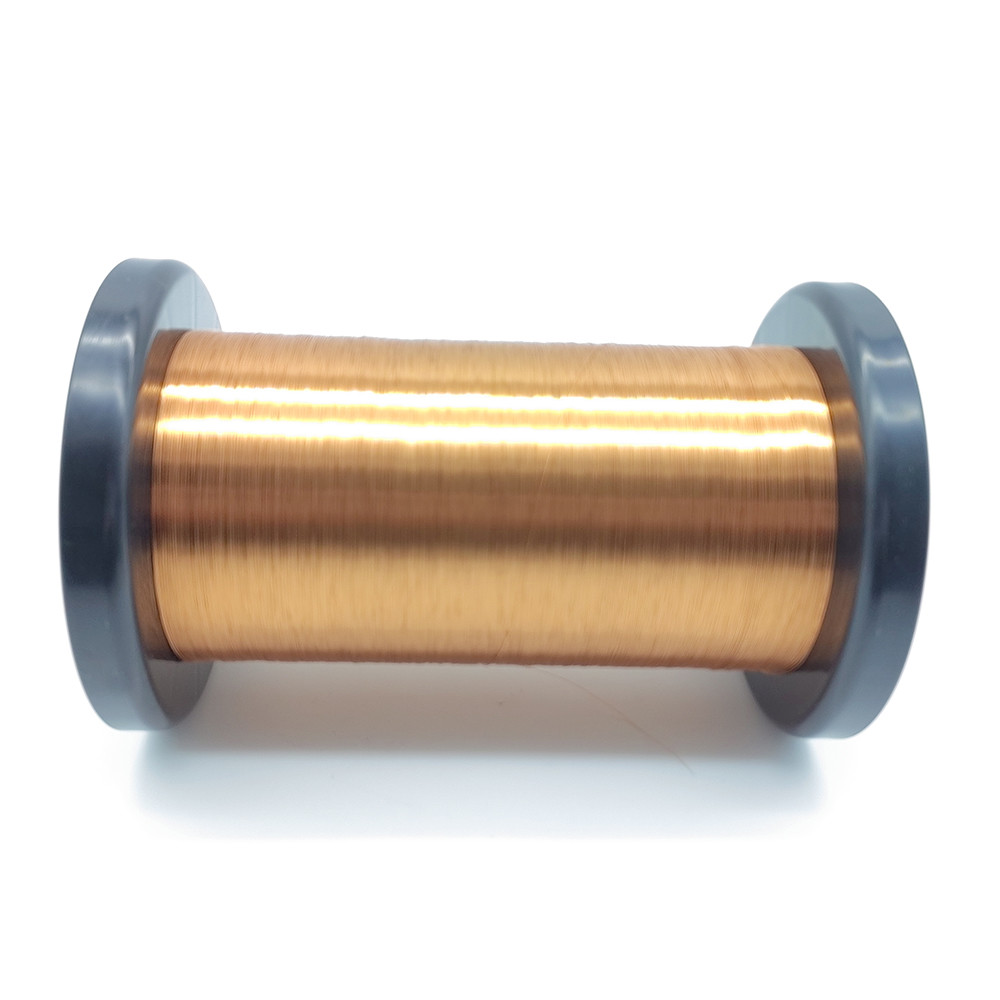

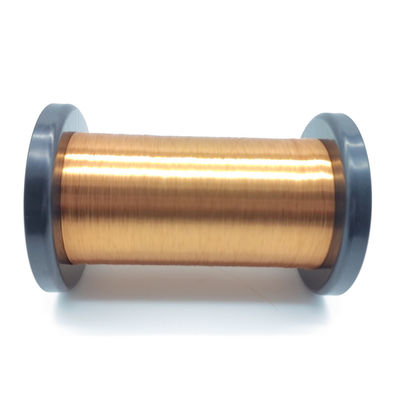

2UEW 155 / 180 0.05mm Polyurethane Enameled Copper Magnet Wire



The polyurethan wire is the conducting wire coated with uniform polyurethan enamel varnish and spooled with harmless, scratch free and clean finish. The coating is durable. It is classified in 3 levels of 1, 2 and 3 by the thickness of finish. The soldering and coloring are possible without stripping the finish.



The heat shock and chemical characteristics of this wire are better than that of formal enameled wire, but the durability is moderately low. It is applicable to the communication equipment within the upper limit of 130℃ using ultra thin conductor with 0.04mm or thicker diameter
Characteristics Technical requests Test result Result
Sample a Sample 2 Sample 3
Surface Good OK OK OK
Bare Wire Diameter 0.050±0.002 0.050 0.050 0.050 OK
Coating Thickness ≥ 0.011 mm 0.014 0.014 0.015 OK
Overall Diameter ≤ 0.067 mm 0.064 0.064 0.065 OK
Conductor Resistance ≤9.528Ω/m 8.763 8.754 8.741 OK
Elongation ≥ 12 % 18 17 16 OK
Breakdown Voltage ≥800V 2741 2501 2608 OK
Pinhole Test ≤ 5 holes/5m 0 0
Continuity ≤ 3 hole/5m 0 0 0 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Solder Ability 390℃ ±5℃ Smooth OK
Heat Shock 200±5℃/30min no crack OK
