Product Name: | Magnet Wire | Diameter: | 45AWG |
---|---|---|---|
Insulation: | Polyurethane | Thermal Rating: | 155/180 |
Conductor Material: | Copper | Size Range: | 0.011mm-1.2mm |
Highlight: | awg 45 soldering enameled wire,polyurethane soldering enameled wire,155 degree self bonding magnet wire |

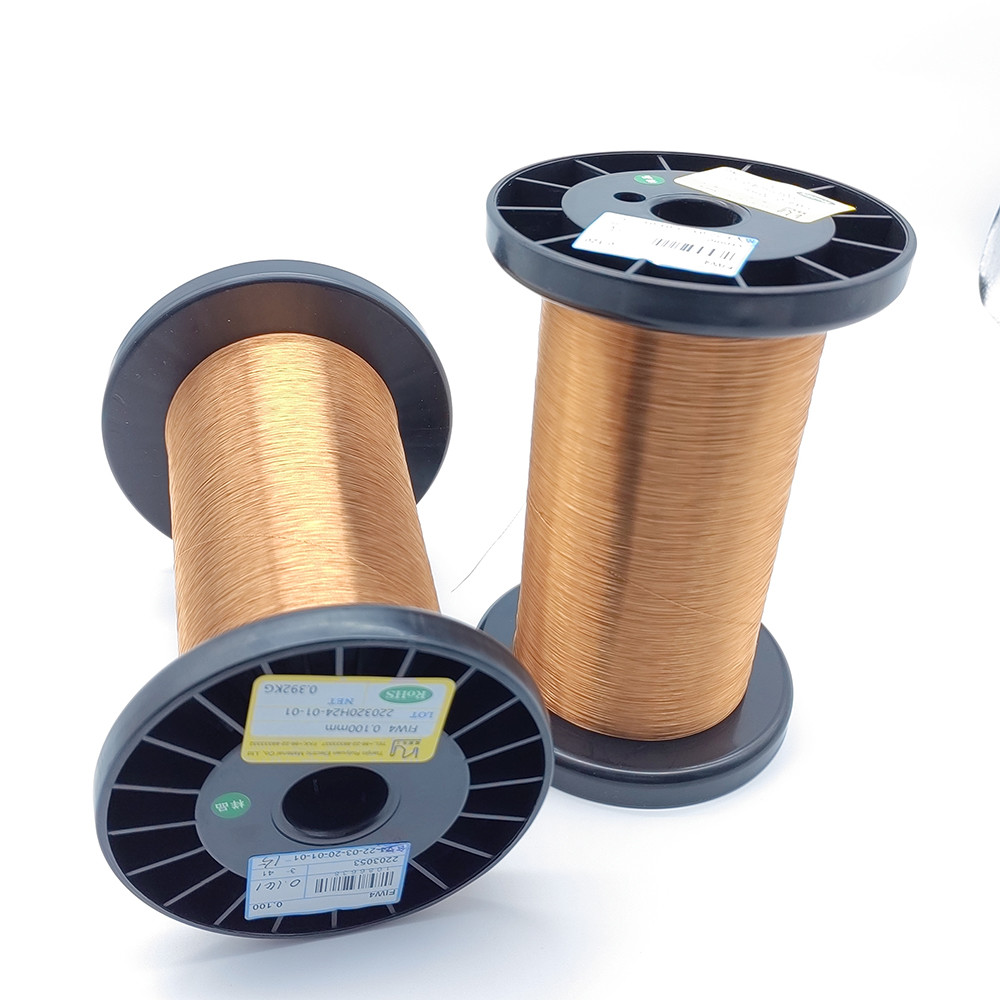

AWG 45 Polyurethane 155 Degree Enameled Copper Wire Solderable Magnet Wire
Enameled copper wire is a copper coated with a very thin layer of insulation.
Application:
It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.
Characteristics | Technical requests | Test Results | Conclusion | ||
Sample 1 | Sample2 | Sample 3 | |||
Surface | Good | OK | OK | OK | OK |
Bare wire diameter | 0.045±0.001 | 0.0450 | 0.0450 | 0.0450 | OK |
Insulation thickness | ≥ 0.006 mm | 0.0090 | 0.0090 | 0.0100 | OK |
Overall diameter | ≤ 0.056 mm | 0.0540 | 0.0540 | 0.0550 | OK |
Electrical resistance | ≤11.339Ω/m | 10.710 | 10.689 | 10.765 | OK |
Elongation | ≥ 11 % | 20 | 19 | 20 | OK |
Breakdown voltage | ≥350 V | 1712 | 1598 | 1654 | OK |
Pinhole test | ≤ 5 hole/5m | 0 | 0 | 0 | OK |
Remark | |||||
Test items | Technical requests | Results | Conclusion | ||
Adhesive | No crack | OK | Approval | ||
Cut-through | 200℃ 2mins no crack | OK | |||
Heat Shock | 175±5℃/30min no crack | OK | |||
Solder Ability | 390± 5℃ 2Sec Smooth | OK |
