| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 40AWG |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Product Name: | Magnet Wire | Diameter: | 40 AWG / 0.08mm |
|---|---|---|---|
| Insulation: | Polyurethane | Thermal Rating: | 155/180 |
| Conductor Material: | Copper | Size Range: | 0.011mm-1.2mm |
| High Light: | 40 awg solderable wire,insulated magnet solderable wire,0.08mm insulated magnet wire |
||

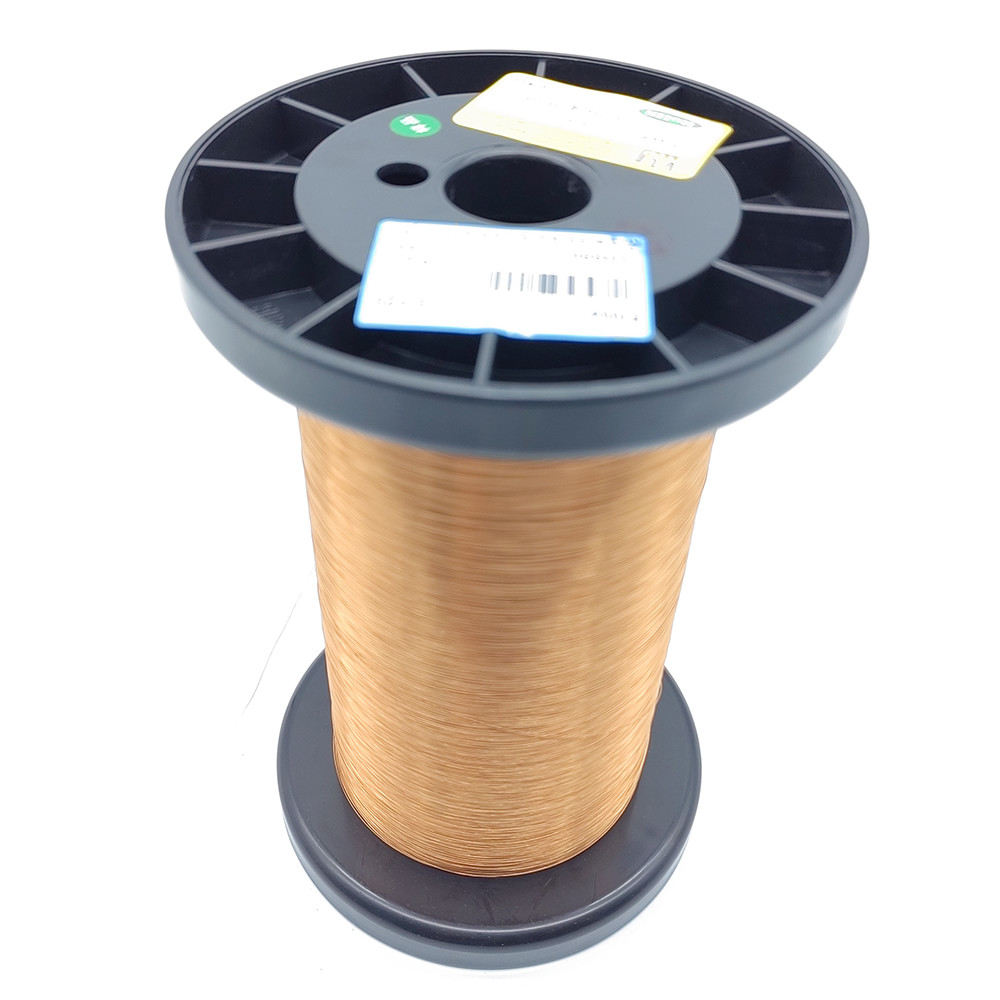

40 AWG 0.08mm 2UEW Solderable Enameled Copper Wire, Magnet Wire
Size range from 0.011mm-0.8mm, class 155/ class 180, widely used in transformer, motor and other electric devices.
We offer samples, around 5kg/spool.
| Characteristics | Technical requests | Test result | |
| Sample a | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 |
0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.437 |
| Elongation | ≥ 16 % | 19 | 20 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1723 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
