Polyurethane Enameled Copper Wire 0.04mm Ultra Fine Insulated

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.04mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.04mm/46AWG
Insulation: Polyurethane Thermal Grade: 155
Conductor Material: Copper Conductor Type: Solid
High Light:

polyurethane enameled copper wire

,

0.04mm enameled copper wire

,

ultra fine insulated copper wire


Product Description

Polyurethane 0.04mm Ultra Fine Enameled Insulated Copper Wire



Features:

1. Solid enough, the wire is not easy to be broken

2. Insulation thickness can be customized

3. Wire can reach almost 0 pinhole

4. High consistency

5. The wire is even and tidy, which is convenient for users to wind

6. Low temperature soldering

7. Bonding method options: Hot air,Solvent and others



Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.040±0.001
0.04
0.04
Coating Thickness
≥ 0.006 mm
0.011
0.01
Overall Diameter
≤ 0.052 mm
0.051
0.05
Conductor Resistance
≤ 14.433 Ω/m
13.736
13.768
Elongation
≥ 11 %
14
15
Breakdown Voltage
≥ 325 V
1178
1076
Pinhole Test
≤ 5 hole /5m
0
0
Continuity
----
----
----
Test Items
Technical Requests
Result

Adhesive
Coating layer is good
OK

Cut-through
200℃ 2min no breakdown
OK

Heat Shock
175±5℃/30min no crack
OK

Solder Ability
390± 5℃ 2Sec Smooth
OK

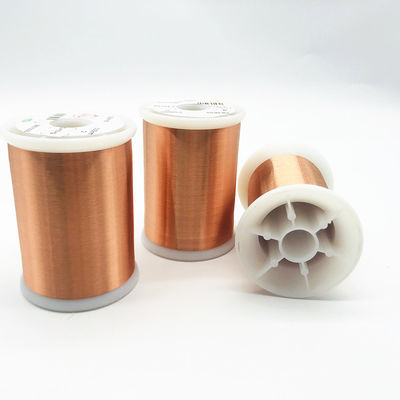

Polyurethane Enameled Copper Wire 0.04mm Ultra Fine Insulated 0
