0.02mm Polyurethane Insulated Copper Enameled Wire For Motor Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Magnet Wire Size: 0.02mm
Insulation: Polyurethane Thermal Grade: 155 / 180
Conductor Material: Copper Breakdown Voltage: Min.130v
High Light:

Polyurethane Insulated copper enameled wire


0.02mm copper enameled wire


Motor Winding copper enameled wire

Product Description

0.02mm Polyurethane Insulated Copper Wire Copper Enameled Wire For Motor Winding


We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

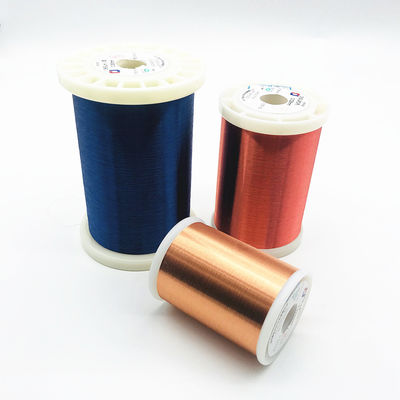

0.02mm Polyurethane Insulated Copper Enameled Wire For Motor Winding 0



Technical requests
Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter 0.020±0.001 0.02 0.02 0.02 OK
Coating Thickness / / / / OK
Overall Diameter 0.022-0.024 0.023 0.023 0.023 OK
Conductor Resistance ≤60.810Ω/m 56.812 56.403 56.514 OK
Elongation ≥8% 10% 10% 11% OK
Breakdown Voltage ≥130V 212 247 262 OK
Pinhole Test ≤ 8 holes/5m 1 0 1 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Cut-through 200℃ 2mins no breakdown OK
Heat Shock 180±5℃/30min no crack OK
Solder Ability 390± 5℃ 2 Sec Smooth OK
