UEW 0.05mm Enameled Copper Magnet Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.05mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Insulation: UEW
Size: 0.05mm Thermal Grade: 155
Conductor Material: Copper Conductor Type: Solid
High Light:

0.05mm Enameled Copper Magnet Wire

,

UEW Enameled Copper Magnet Wire

,

0.05mm enamelled copper winding wire


Product Description

UEW 0.05mm Copper Magnet Wire Ultra Thin Enameled Copper Wire For Winding



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

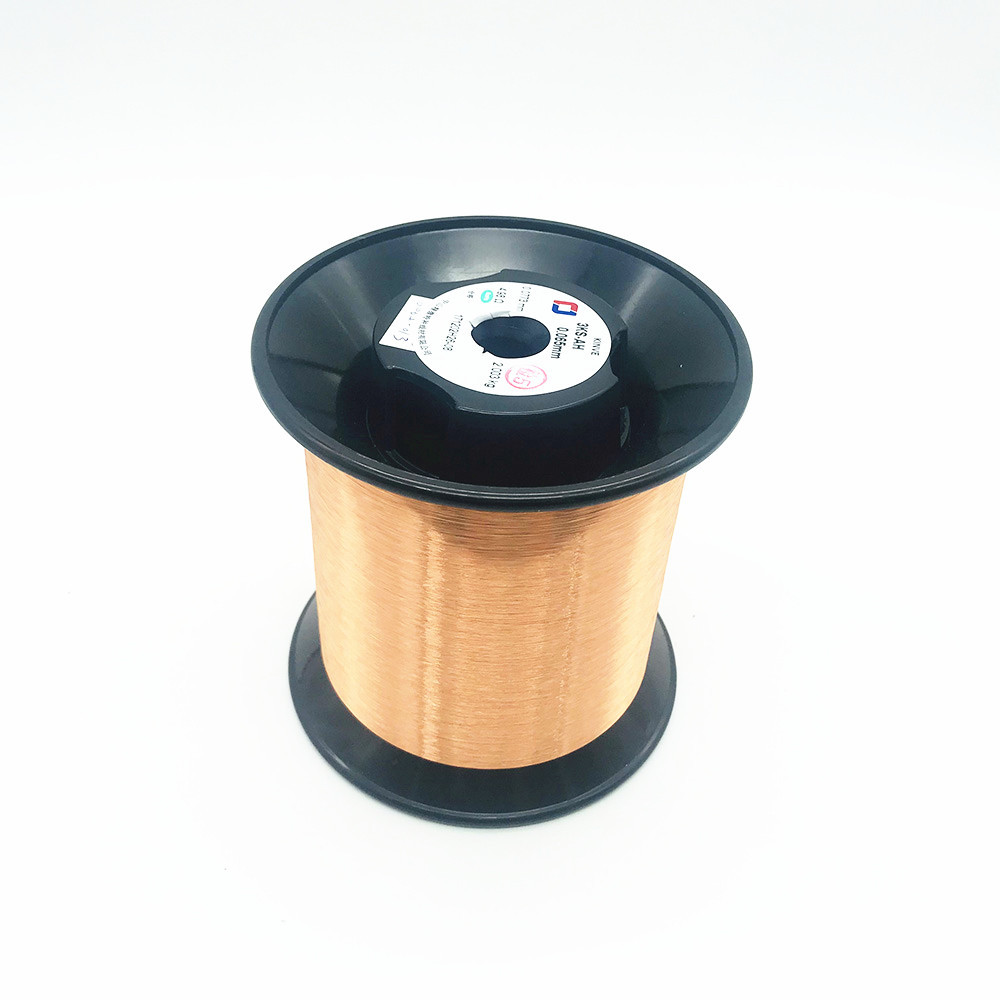

UEW 0.05mm Enameled Copper Magnet Wire For Winding 0





Characteristics

Technical requests

Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter

0.050±

0.002 0.05

0.05

0.05

OK

0.002
Coating Thickness ≥ 0.007 mm 0.011 0.011 0.011 OK
Overall Diameter ≤ 0.063 mm 0.061 0.061 0.06 OK
Conductor Resistance ≤ 9.528 Ω/m 8.756 8.863 8.782 OK
Elongation ≥ 12 % 16 17 17 OK
Breakdown Voltage ≥ 400 V 1493 1638 1382 OK
Pinhole Test ≤ 5 hole /5m 0 0 0 OK
Continuity ≤ 60 hole/30m 0 0 0 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Cut-through 230℃ 2mins no breakdown OK
Heat Shock 200±5℃/30min no crack OK
Solder Ability 390± 5℃ 2Sec Smooth OK
