UEW 155 / 180 0.016mm Enamelled Copper Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.016mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Size: 0.016mm
Insulation: UEW Thermal Grade: 155 / 180
Conductor Material: Copper Conductor Type: Solid
High Light:

0.016mm Enamelled Copper Wire

,

0.016mm Enamelled Copper Motor Wire

,

UEW Enamelled Copper Wire


Product Description

UEW 155 / 180 0.016mm Ultra Fine Magnetic Copper Wire Enameled Copper Wire



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

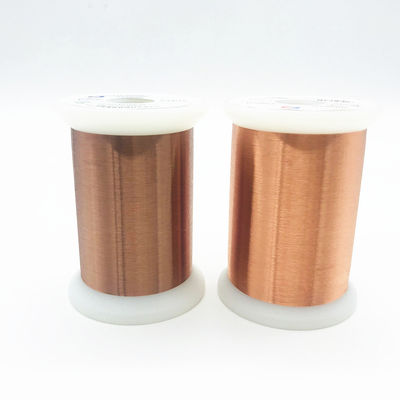

UEW 155 / 180 0.016mm Enamelled Copper Wire For Motor 0 UEW 155 / 180 0.016mm Enamelled Copper Wire For Motor 1





Characteristics

Technical requests

Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter

0.016±

0.001 0.016

0.016

0.016

OK

0.001
Overall diameter ≤ 0.020mm 0.015 0.0195 0.01958 OK
Insulation thickness Min0.001 0.002 0.002 0.002 OK
Self-bonding layer thickness Min0.001 0.0015 0.0015 0.0015 OK
Elongation ≥ 6 % 12 12 12 OK
Breakdown Voltage ≥ 120V 248 260 270 OK
Pinhole Test ≤ 5 hole/5m 0 0 0 OK
Enamel Continuity(50v/30m) ≤ 60 hole/5m 0 0 0 OK
Bonding Strength ≥5 g 10 10 9 OK
Electrical Resistance 84.29-91.37Ω/m 86.3 86.3 86.3 OK
Test Items Technical Requests Results
Adhesive No crack OK
Heat Shock 175℃/1h no crack OK
Solder Ability 390℃±5C/2S Smooth OK
