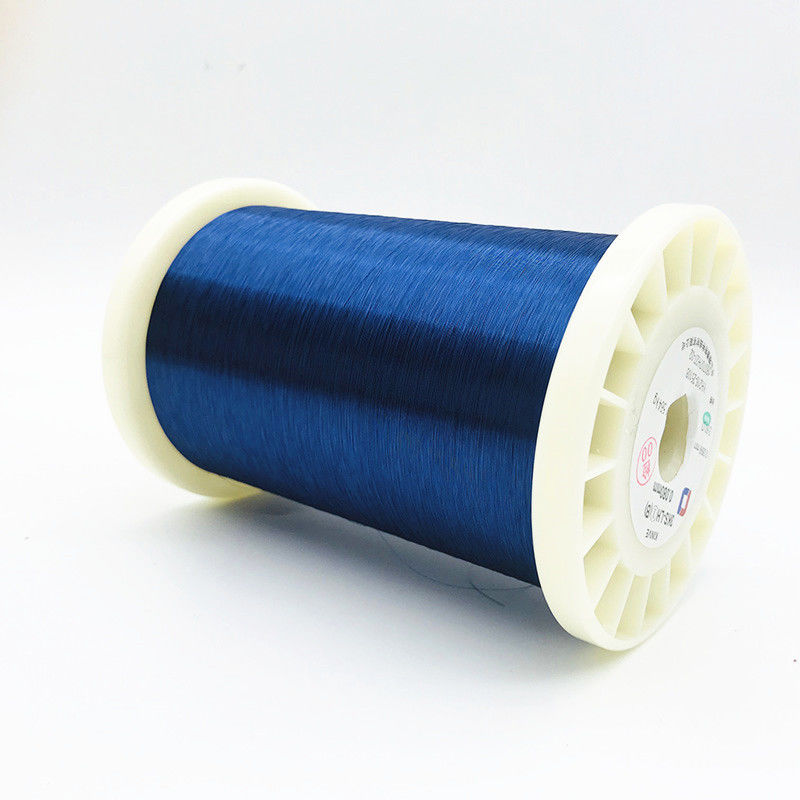

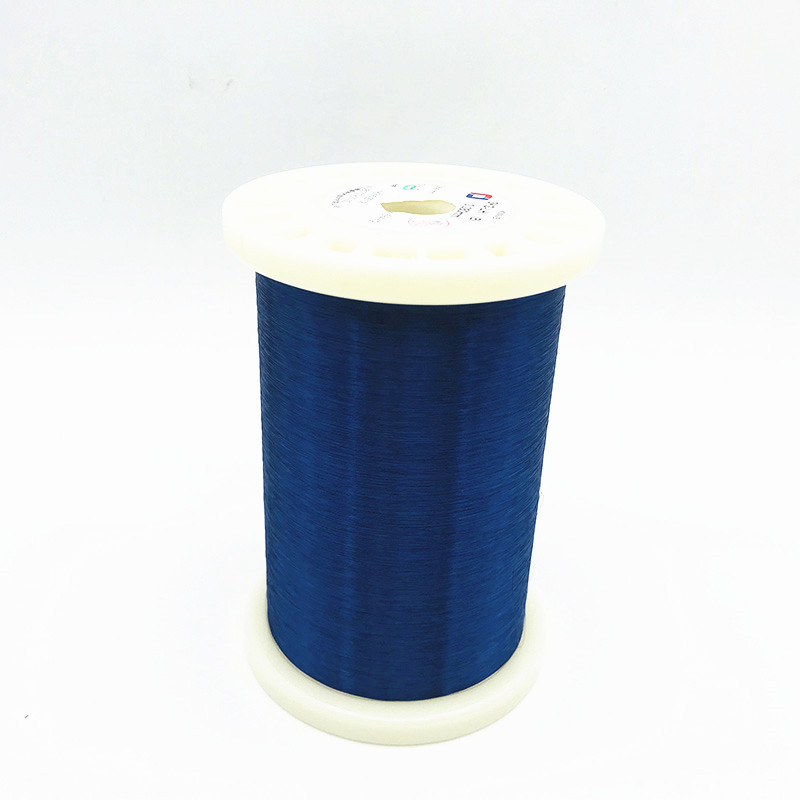

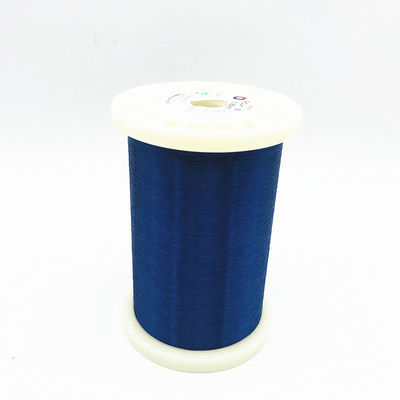

180 Class Winding Copper 0.05mm Blue Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.05mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Conductor Material: Copper
Size: 0.05mm Insulation: UEW
Thermal Grade: 155 / 180 Conductor Type: Solid
High Light:

0.05mm blue magnet wire

,

0.05mm blue magnet Winding wire

,

180 class blue magnet wire


Product Description

Blue Color Winding Using Magnet Wire Copper 0.012 - 0.08 mm Ultra Thin Enameled Copper Wire

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...





FEATURES

1. Temperature Rate: 130/155/180/200/220

2. Great consistency: 0 pinhole, no quality issue for long time storage

3. Excellant winding quality:Higher elongation, seldom broken during high speed winding

4. Marvelous breakdown voltage uniform coating, 3-6times than standard







180 Class Winding Copper 0.05mm Blue Magnet Wire 0





Characteristics

Technical requests

Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter

0.050±

0.002 0.05

0.05

0.05

OK

0.002
Coating Thickness ≥ 0.007 mm 0.011 0.011 0.011 OK
Overall Diameter ≤ 0.063 mm 0.061 0.061 0.06 OK
Conductor Resistance ≤ 9.528 Ω/m 8.756 8.863 8.782 OK
Elongation ≥ 12 % 16 17 17 OK
Breakdown Voltage ≥ 400 V 1493 1638 1382 OK
Pinhole Test ≤ 5 hole /5m 0 0 0 OK
Continuity ≤ 60 hole/30m 0 0 0 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Cut-through 230℃ 2mins no breakdown OK
Heat Shock 200±5℃/30min no crack OK
Solder Ability 390± 5℃ 2Sec Smooth OK
