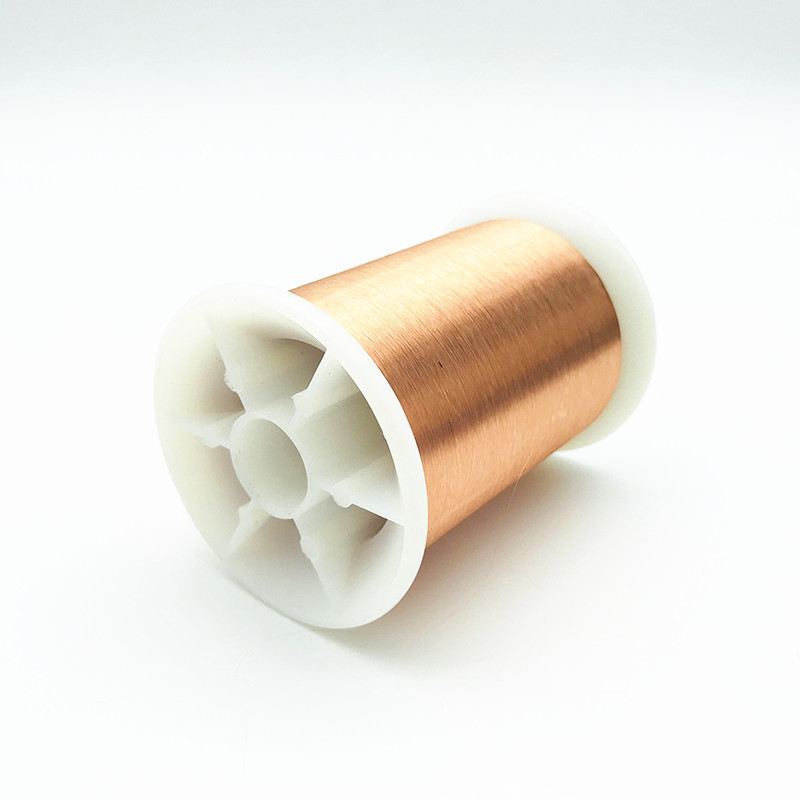

Heat Shock Resistance Ultra Fine UEW 0.032mm Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.032mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product: Magnet Wire Diameter: 0.032mm
Insulation: UEW Thermal Class: 155/180/220
Type: Solid Port: Tianjin
High Light:

UEW 0.032mm Magnet Wire

,

Ultra Fine Magnet Wire

,

Class 155 Magnet Wire


Product Description

High Quality UEW 0.032mm Magnet Wire Ultra Fine Copper Wire Enamel For Motor Winding



The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.Magnet wire has excellent mechanical, electrical and chemical performance, especially in high current output, heat resistance and corrosion resisitance.t is mainly used in high-voltage transformers, electric machines, generator, etc. A special type of enamelled wire is self bonding or adelaide enameleld wire.



Advantages Of Enameled Copper Wire

a) High resistance to heat shock.

b) High temperature.

c) Good performance in cut-through.

d) Suitable for high-speed automated routing.

e) Able to be direct weld, with no pinhole.

f) Resistive to high frequency, wearing, refrigerants and electronics corona.

g) High breakdown voltage, small dielectric loss angle.

h) Environment-friendly.



Specification

Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good

OK
OK
OK
Bare Wire Diameter
0.032±
0.001
0.032
0.032
OK
0.001
Coating Thickness
≥ 0.005 mm
0.009
0.008
OK
Overall Diameter
≤ 0.042 mm
0.041
0.04
OK
Conductor Resistance
≤ 22.843 Ω/m
22.032
22.076
OK
Elongation
≥ 10 %
14
15
OK
Breakdown Voltage
≥ 275 V
1456
1312
OK
Pinhole Test
≤ 5 faults/5m
0
0
OK
Continuity
----
----
----
----
Test Items
Technical Requests
Resulat


Adhesive
Coating layer is good
OK


Cut-through
230℃ 2min no breakdown
OK


Heat Shock
200± 5℃/30min no crack
OK


Solder Ability
390± 5℃ 2Sec Smooth
OK


Solvent Resistance
No blister, no expansion, no shed
OK
