130V 0.02mm Transformer Class 155 Enameled Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product: Magnet Wire Diameter: 0.02mm
Type: Solid Insulation: Polyurethane
Thermal Class: 155/180/220 Port: Tianjin
High Light:

Class 155 Enameled Magnet Wire

,

Transformer Enameled Magnet Wire

,

0.02mm Magnet Wire


Product Description

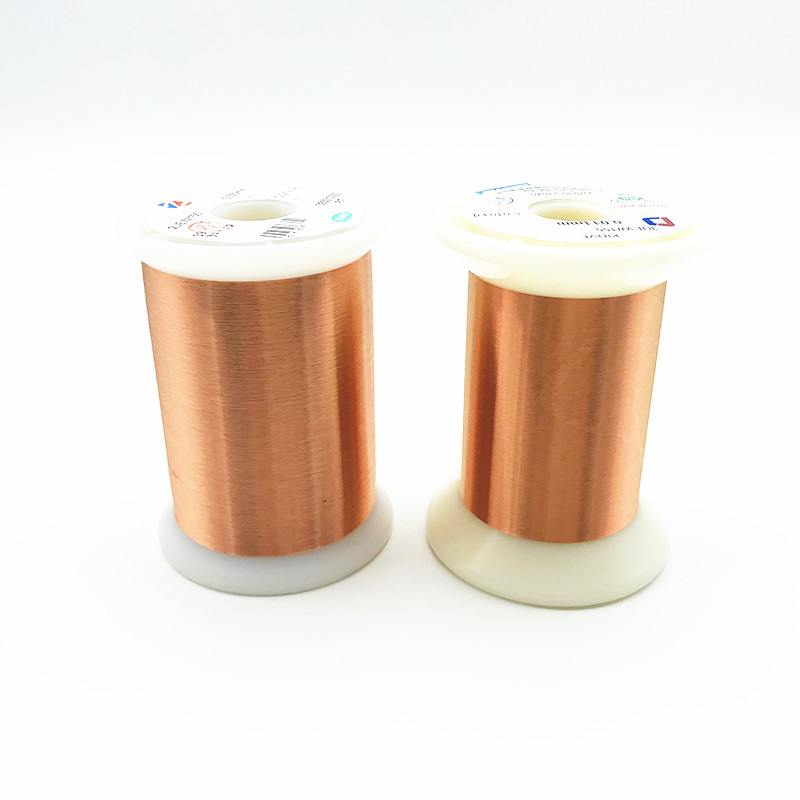

Class 155 / 180 /220 0.02mm Magnte Wire Ultra Fine Copper Wire Enamel For Transformer







The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.


We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


Advantages Of Enameled Copper Wire

a) High resistance to heat shock.

b) High temperature.

c) Good performance in cut-through.

d) Suitable for high-speed automated routing.

e) Able to be direct weld, with no pinhole.

f) Resistive to high frequency, wearing, refrigerants and electronics corona.

g) High breakdown voltage, small dielectric loss angle.

h) Environment-friendly.



Specification



Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2
Surface Good OK OK OK
Bare Wire Diameter 0.020± 0.001 0.02 0.02 OK
0.001
Coating Thickness / / / OK
Overall Diameter 0.022-0.024 0.023 0.023 OK
Conductor Resistance ≤60.810Ω/m 56.812 56.403 OK
Elongation ≥8% 10% 10% OK
Breakdown Voltage ≥130V 212 247 OK
Pinhole Test ≤ 8 holes/5m 1 0 OK
Test Items Technical Requests   Results
Adhesive Coating layer is good   OK
Cut-through 200℃ 2mins no breakdown   OK
Heat Shock 180±5℃/30min no crack   OK
Solder Ability 390± 5℃ 2 Sec Smooth   OK
