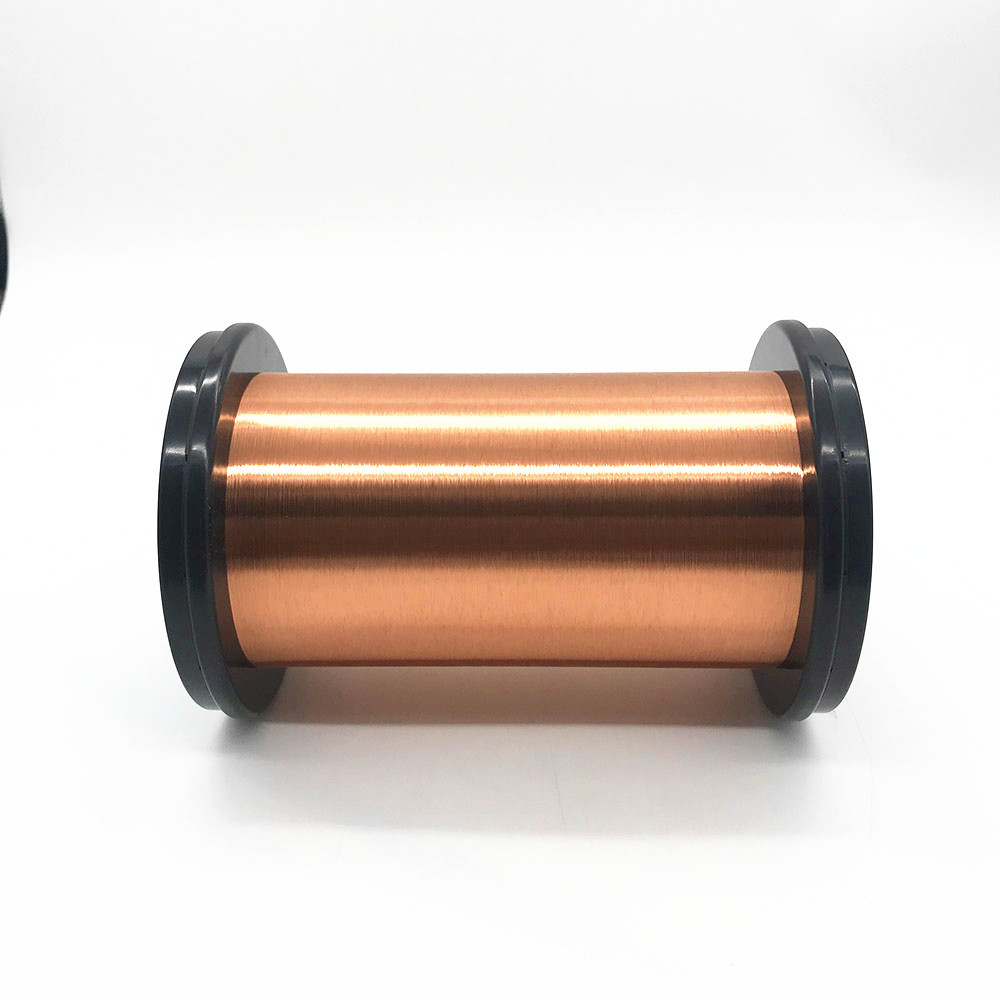

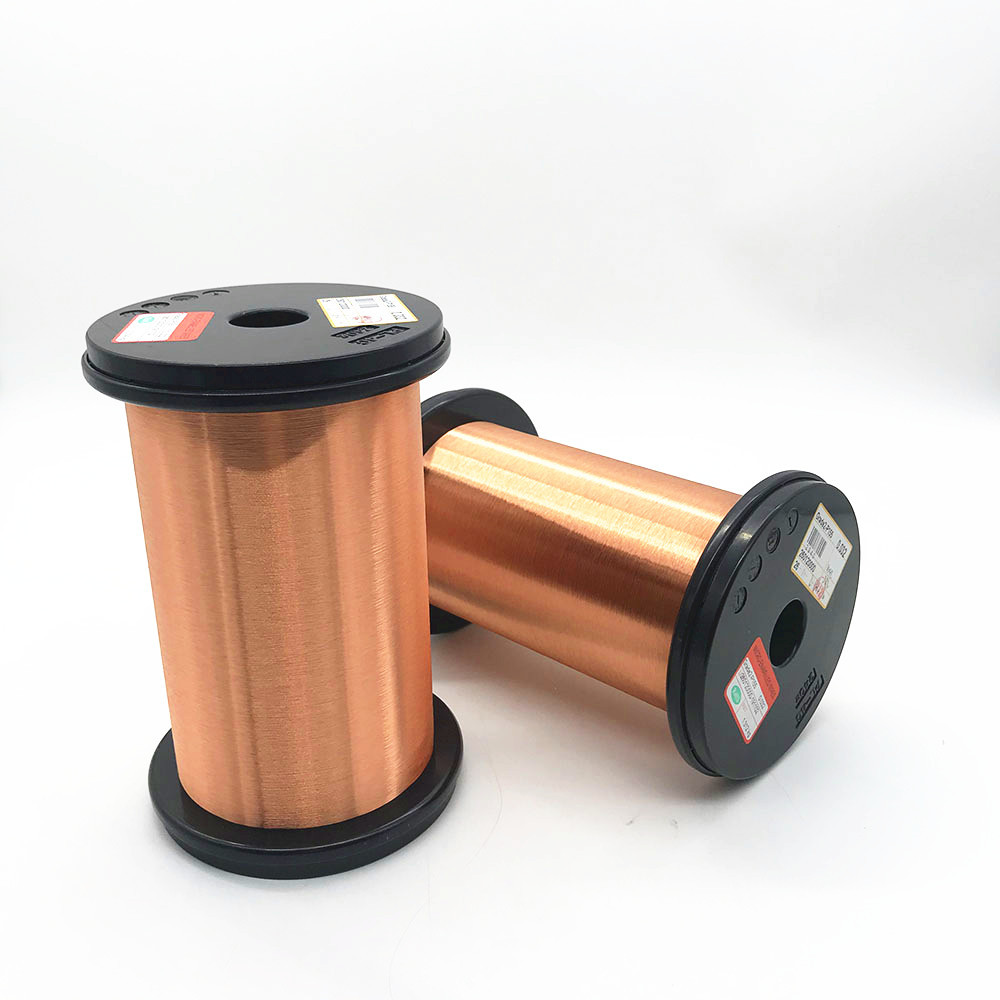

Class 155 Polyurethane Winding Enameled Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.08mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Diameter: 0.08mm Insulation: UEW
Thermal Class: 155 Conductor Type: Solid
Conductor Material: Round Copper Port: Tianjin
High Light:

Winding Enameled Magnet Wire

,

Class 155 Enameled Magnet Wire

,

Polyurethane Enamelled Winding Wire


Product Description

0.012mm - 0.08mm Class 155 Polyurethane Ultra Thin Enameled Copper Wire For Motor Winding

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us assuppliers-Philips, Bosch, Panasonic, Samsung ...

APPLICATION

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.


FEATURES

  • Excellent adhesion and ductility;

  • Excellent conductivity, electrical properties;

  • Good performance at high heat resistance, heat shock and cut through.



Specification

Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter 0.080± 0.002 0.45 0.45 0.45 OK
0.002
Coating Thickness ≥ 0.008 mm 0.011 0.012 0.012 OK
Overall Diameter ≤ 0.094 mm 0.091 0.092 0.092 OK
Conductor Resistance ≤ 3.608 Ω/m 3.456 3.443 3.437 OK
Elongation ≥ 16 % 19 19 20 OK
Breakdown Voltage ≥ 425 V 1578 1496 1723 OK
Pinhole Test ≤ 5 holes/5m 0 0 0 OK
Continuity ≤ 40 holes/30m 0 0 0 OK
Test Items Technical Requests Results   Conclusion: Approved
Adhesive Coating layer is good OK
Cut-through 200℃ 2minsno breakdown OK
Heat Shock 175±5℃/30minno crack OK   Audit by Tested by
