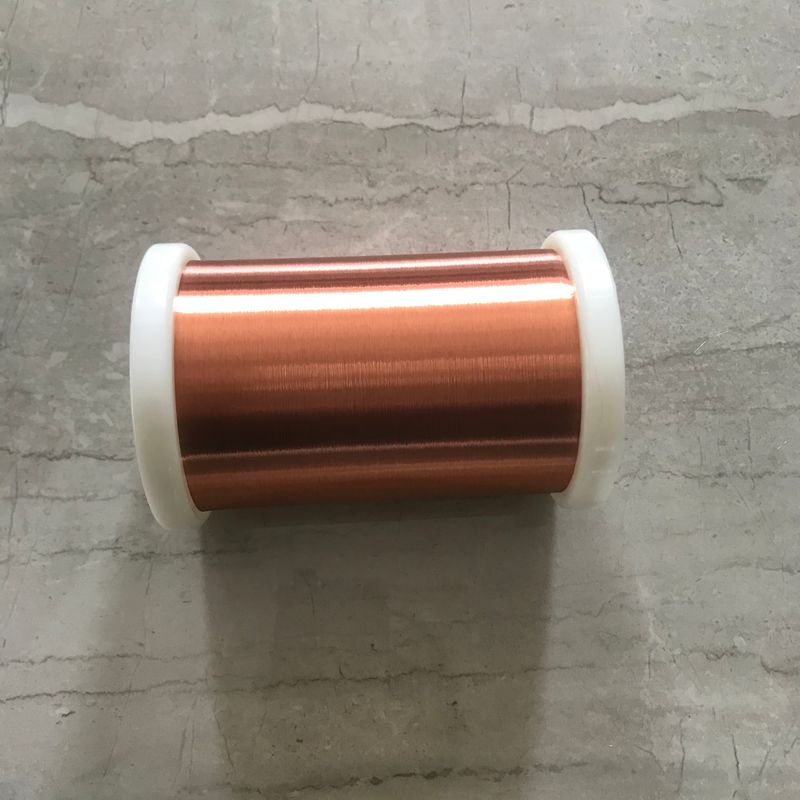

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.012mm - 0.023mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Type: Insulated Conductor Material: Copper
Conductor Type: Solid Insulation Material: Enameled
Thermal Rating: 155-220 Insulation: UEW
High Light:

solderable magnet wire

,

magnetic coil wire


Product Description

0.012mm - 0.023mm ULTRA THIN COPPER WIRE SOLDERABLE MAGNET WIRE FOR TOUCH SCREEN



Touch screen plays an important role in modern society, it is common in devices such as .game consoles, personal computers, tablet computers, electronic voting machines, point of sale systems, and smartphones They can also be attached to computers or, as terminals, to networks. They also play a prominent role in the design of digital appliances such as personal digital assistants (PDAs) and somee-readers.Our enamelled wire has been widedly used in different types of touch screen, and it's been proved great quality and high stabiliy.

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance
mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
        Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
0.02 0.002 0.022 0.024 100 ---- 5 8



Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 0

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 1

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 2

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 3

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 4

Ultra Thin Solderable Magnet Wire Enameled Copper Wire For Touch Screen 5
