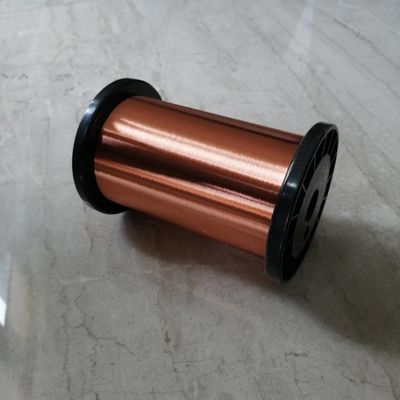

AWG 22 0.63mm Magnet Wire Class 180 H Polyurethane Covered High Performance

Detail Information
Type: Insulated Conductor Material: Copper
Insulation Material: Enameled Conductor Type: Solid
Thermal Class: 180 Insulation: UEW/polyurethane
Highlight:

solderable magnet wire

,

magnetic coil wire


Product Description

AWG 22 0.63MM CLASS 180 H POLYURETHANE COVERED ENAMELED COPPER WIRE MAGNET WIRE





We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers, Bosch, Panasonic, Samsung ...



  Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
1 Surface Good OK OK OK OK
2 Bare Wire Diameter 0.630± 0.005 0.632 0.632 0.632 OK
0.005
3 Coating Thickness ≥ 0.027 mm 0.034 0.034 0.034 OK
4 Overall Diameter ≤ 0.672 mm 0.666 0.666 0.666 OK
5 Conductor Resistance ≤ 0.0562Ω/m 0.0549 0.0555 0.0542 OK
6 Elongation ≥ 28 % 34 35 36 OK
7 Breakdown Voltage ≥ 3500 V 6387 5500 5600 OK
8 Pinhole Test ≤ 5 holes/5m 0 0 0 OK
9 Enamel continuity ≤ 25 holes/30m 0 0 0 OK
Remark:
  Test Items Technical Requests Results Conclusion:
1 Adhesive Coating layer is good OK Approved
2 Cut-through 200℃ 2mins no breakdown OK
3 Heat Shock 180±5℃/30min no crack OK Audit by Tested by
4 Solder Ability 390± 5℃ 2 Sec Smooth OK   Pan Lihong
5 Solvent Resistance No blister, no expansion, no shed OK
