| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AWG 20-56 |
| Minimum Order Quantity: | 20 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Ton/Tons per Month |
| Type: | Insulated | Conductor Material: | Copper |
|---|---|---|---|
| Conductor Type: | Solid | Insulation Material: | Enameled |
| Insulation: | Polyester | Material: | Copper |
| High Light: | solderable magnet wire,magnetic coil wire |
||

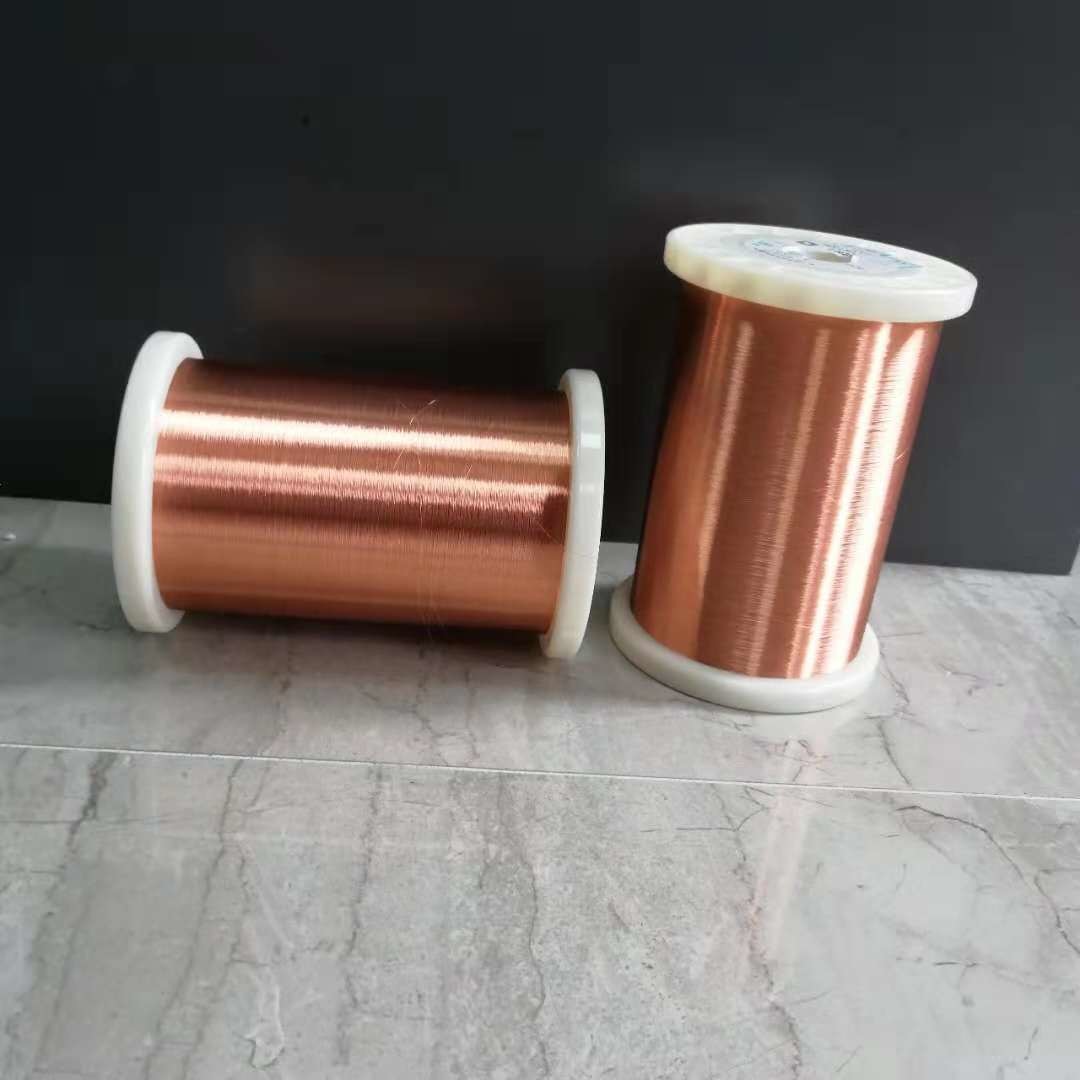

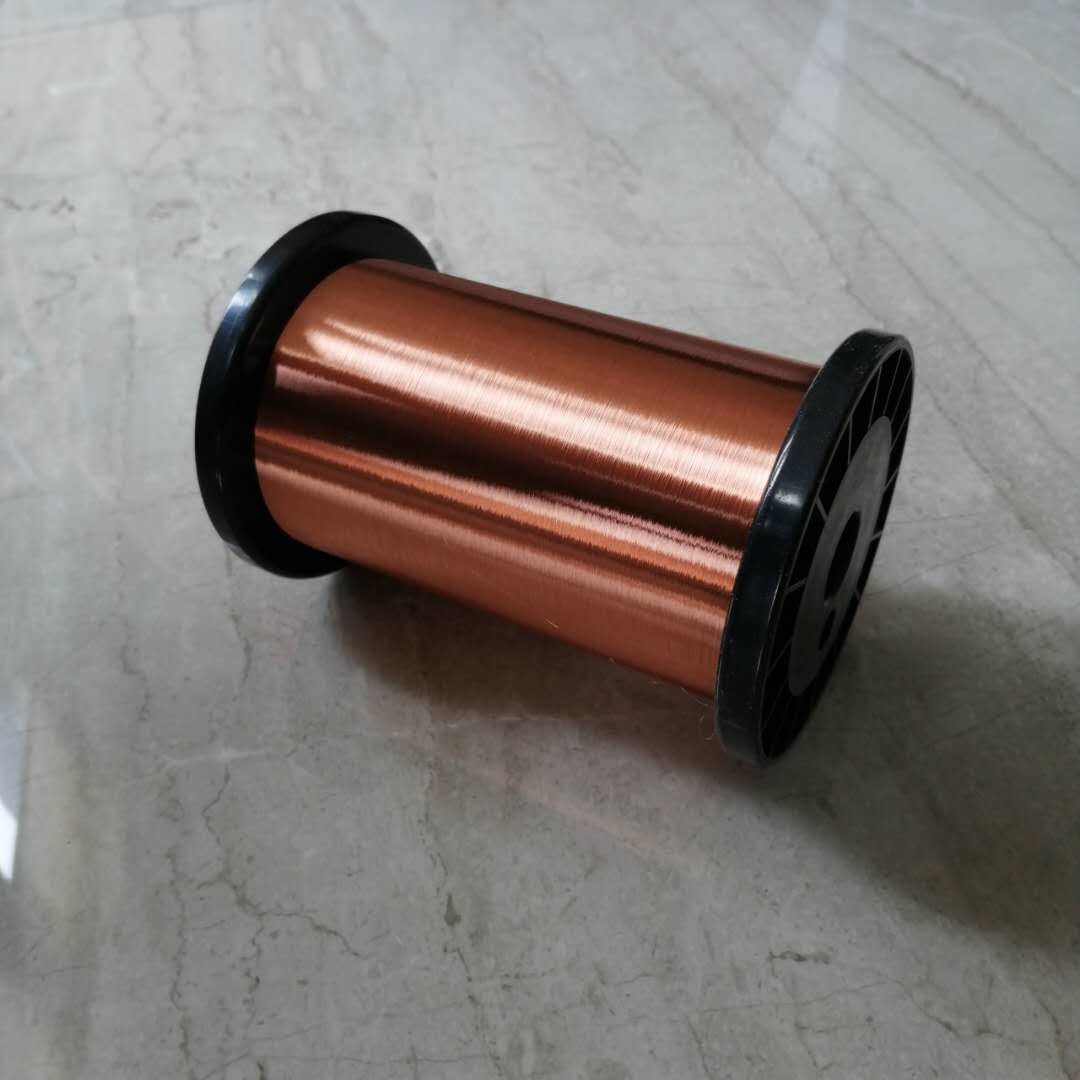

AWG 20-56 UEW SUPERFINE ENAMELED COPPER WIRE SEFL SOLDERABLE MAGNET WIRE FOR WINDING
We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applicationsThermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire
APPLICATION
Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
| 0.085 | ±0.002 | 0.008 | 0.099 | 550.000 | 1200.00 | 16.00 | 5.00 | 2851.00 | 3187.00 |
| 0.090 | ±0.002 | 0.010 | 0.106 | 650.000 | 1200.00 | 16.00 | 5.00 | 2550.00 | 2835.00 |
| 0.095 | ±0.002 | 0.010 | 0.111 | 650.000 | 1200.00 | 17.00 | 5.00 | 2294.00 | 2538.00 |
| 0.100 | ±0.002 | 0.011 | 0.118 | 650.000 | 1200.00 | 17.00 | 5.00 | 2074.00 | 2286.00 |
| 0.110 | ±0.002 | 0.011 | 0.129 | ---- | 1300.00 | 17.00 | 5.00 | 1720.00 | 1882.00 |
| 0.120 | ±0.002 | 0.011 | 0.139 | ---- | 1500.00 | 17.00 | 5.00 | 1450.00 | 1577.00 |
| 0.130 | ±0.002 | 0.011 | 0.149 | ---- | 1500.00 | 18.00 | 5.00 | 1239.00 | 1340.00 |
| 0.140 | ±0.002 | 0.011 | 0.159 | ---- | 1600.00 | 19.00 | 5.00 | 1070.00 | 1153.00 |
| 0.150 | ±0.002 | 0.011 | 0.169 | ---- | 1700.00 | 20.00 | 5.00 | 934.10 | 1002.00 |
| 0.160 | ±0.002 | 0.012 | 0.180 | ---- | 1700.00 | 21.00 | 5.00 | 822.30 | 879.40 |
| 0.170 | ±0.003 | 0.013 | 0.192 | ---- | 2000.00 | 22.00 | 5.00 | 721.10 | 787.10 |
| 0.180 | ±0.003 | 0.014 | 0.204 | ---- | 2000.00 | 22.00 | 5.00 | 644.40 | 700.70 |
| 0.190 | ±0.003 | 0.014 | 0.214 | ---- | 2000.00 | 23.00 | 5.00 | 579.40 | 627.80 |
| 0.200 | ±0.003 | 0.014 | 0.224 | ---- | 2000.00 | 23.00 | 5.00 | 523.70 | 565.70 |
| 0.210 | ±0.003 | 0.014 | 0.234 | ---- | 2000.00 | 23.00 | 5.00 | 475.70 | 512.30 |
| 0.220 | ±0.003 | 0.014 | 0.245 | ---- | 2200.00 | 23.00 | 5.00 | 434.00 | 466.20 |
| 0.230 | ±0.003 | 0.016 | 0.257 | ---- | 2200.00 | 24.00 | 5.00 | 397.50 | 426.00 |
| 0.240 | ±0.003 | 0.016 | 0.267 | ---- | 2200.00 | 24.00 | 5.00 | 365.50 | 390.80 |
| 0.250 | ±0.003 | 0.016 | 0.277 | ---- | 2300.00 | 24.00 | 5.00 | 337.10 | 359.80 |
| 0.260 | ±0.004 | 0.018 | 0.287 | ---- | 2300.00 | 25.00 | 5.00 | 309.60 | 335.00 |
| 0.270 | ±0.004 | 0.018 | 0.297 | ---- | 2300.00 | 25.00 | 5.00 | 287.40 | 310.30 |
| 0.280 | ±0.004 | 0.022 | 0.313 | ---- | 2300.00 | 25.00 | 5.00 | 267.60 | 288.20 |
| 0.290 | ±0.004 | 0.022 | 0.323 | ---- | 2500.00 | 25.00 | 5.00 | 249.70 | 268.40 |
| 0.300 | ±0.004 | 0.022 | 0.334 | ---- | 2500.00 | 25.00 | 5.00 | 233.50 | 250.60 |
| 0.310 | ±0.004 | 0.022 | 0.344 | ---- | 2500.00 | 25.00 | 5.00 | 218.90 | 234.40 |
| 0.315 | ±0.004 | 0.022 | 0.349 | ---- | 2500.00 | 25.00 | 5.00 | 212.10 | 227.00 |
| 0.320 | ±0.004 | 0.023 | 0.355 | ---- | 2700.00 | 25.00 | 5.00 | 205.60 | 219.80 |
| 0.330 | ±0.004 | 0.023 | 0.365 | ---- | 2700.00 | 25.00 | 5.00 | 193.50 | 206.60 |
| 0.350 | ±0.004 | 0.023 | 0.385 | ---- | 2700.00 | 26.00 | 5.00 | 172.20 | 183.40 |
| 0.355 | ±0.004 | 0.023 | 0.390 | ---- | 2700.00 | 26.00 | 5.00 | 167.40 | 178.20 |
| 0.370 | ±0.004 | 0.024 | 0.406 | ---- | 2900.00 | 26.00 | 5.00 | 154.30 | 163.90 |
| 0.380 | ±0.004 | 0.024 | 0.416 | ---- | 2900.00 | 26.00 | 5.00 | 146.40 | 155.30 |
| 0.400 | ±0.004 | 0.025 | 0.437 | ---- | 2900.00 | 27.00 | 5.00 | 132.20 | 140.00 |
| 0.410 | ±0.004 | 0.025 | 0.447 | ---- | 2900.00 | 27.00 | 5.00 | 125.90 | 133.20 |
| 0.440 | ±0.004 | 0.025 | 0.477 | ---- | 2900.00 | 27.00 | 5.00 | 109.50 | 115.50 |
| 0.450 | ±0.004 | 0.025 | 0.487 | ---- | 2900.00 | 27.00 | 5.00 | 104.70 | 110.40 |
| 0.470 | ±0.004 | 0.026 | 0.508 | ---- | 3100.00 | 27.00 | 5.00 | 96.05 | 101.10 |
| 0.500 | ±0.004 | 0.026 | 0.539 | ---- | 3100.00 | 27.00 | 5.00 | 84.96 | 89.23 |
