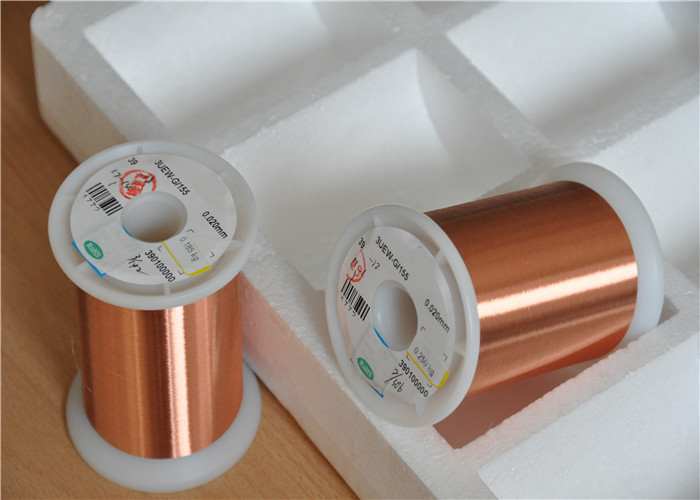

0.012mm 3UEW155 Insulation Enamelled Copper Wire Fine Enameled Winding Wire For Ignition Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001/UL /SGS
Model Number:	3UEW-F

Minimum Order Quantity:	0.5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 workding days
Payment Terms:	T/T,Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Thermal Class:	155℃	Certification:	ISO9001/ISO14001 /UL/SGS
Application:	Ignition Coils/watch Coils/touch Screen	Diameter:	0.012mm
Standard:	GB IEC JIS NEMA	Coating:	Polyurethane
Highlight:	soft copper wire , self solderable copper wire

Product Description

0.012mm 3UEW155 Insulation Enamelled Copper Wire Fine Enameled Winding Wire For Ignition Coils

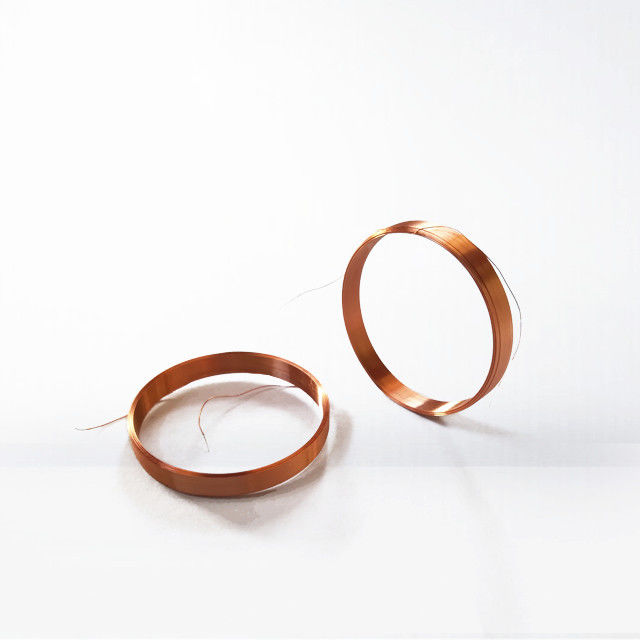

Magnet wire or enameled wire is a copper wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper

FEATURES

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Superior ''Q'' characteristic at high frequencies.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts

SPECIFICATION

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.012mm round enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 155
Enameled types : UEW,QA

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.012±0.001	0.012	0.012
Overall dimensions	≤0.014mm	0.014	0.014
Coating Thickness	≥ 0.001 mm	0.002	0.002
Conductor Resistance(Ω/m at 20℃)	142.64-157.65Ω/m	144.33	144.33
Elongation	≥ 5%	8	8
Breakdown Voltage	≥ 110 V	189
Pinhole Test	≤12holes/5m	0
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2 times no breakdown	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK

0.012mm 3UEW155 Insulation Enamelled Copper Wire Fine Enameled Winding Wire For Ignition Coils 0
