| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.017mm-0.8mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Thermal Rating: | 155 | Insulation Layer: | Polyurethane |
|---|---|---|---|
| AWG Size: | 53 | Size Range: | 0.017-0.8mm |
| Certification: | ISO9001/ISO14001/UL /SGS | Material: | Copper |
| Color: | Nature/Red/Blue | ||
| Highlight: | solderable magnet wire,magnetic coil wire |
||

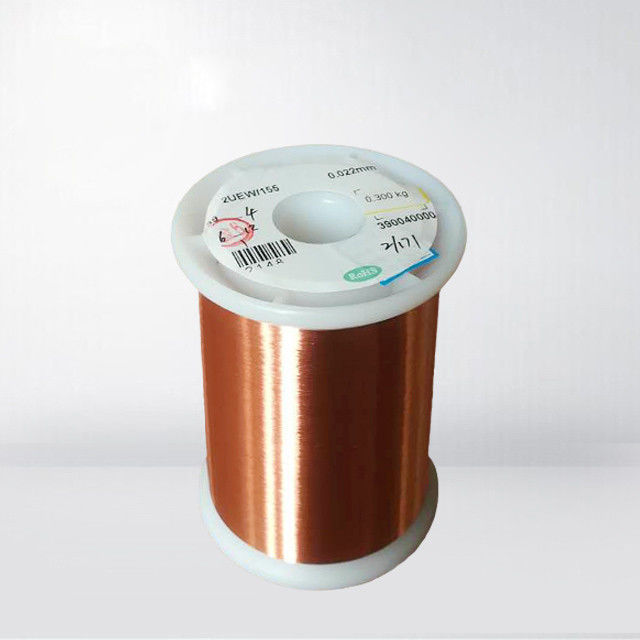

0.017MM-0.8MM ENAMELLED COPPER WINDING WIRE FOR TRANSFORMERS
Ruiyuan offers an industry-leading range of ultra-fine enamelled copper wires. The enamelled wire properties governing proper selection not only require consideration of the end use conditions but system compatibility and ease of use in production. Solderablility, abrasion resistance, bondability, flexibility, insulation builds, etc. are all typical production and design considerations.Higher temperature requirements and more complex systems dictate the need for knowledgeable selectivity of enamelled wires,in addition to the product featured in this catalogue, we can provide custom insulated wires to meet your requirements.
FEATURES AND BENEFITS:
Excellent crazing,abrasion,chemical resistance and provides good thermal stability.
Enamelled Copper Wire Enamelled Copper Wire
PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF.
Enamelled Copper Wire Enamelled Copper Wire
APPLICATIONS:
High frequency coils and transformers Relays,
Solenoids coil, Small motors, Ignition coils.
<
| Nominal Diameter | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | ||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
