| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.015mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Size: | 0.015mm | Certification: | IEC/NEMA/JIS/RoHS/ISO |
|---|---|---|---|
| Temperature: | 155 | Insulation: | UEW |
| Material: | Copper | Standard: | GB IEC JIS NEMA |
| High Light: | soft copper wire,enameled copper magnet wire |
||

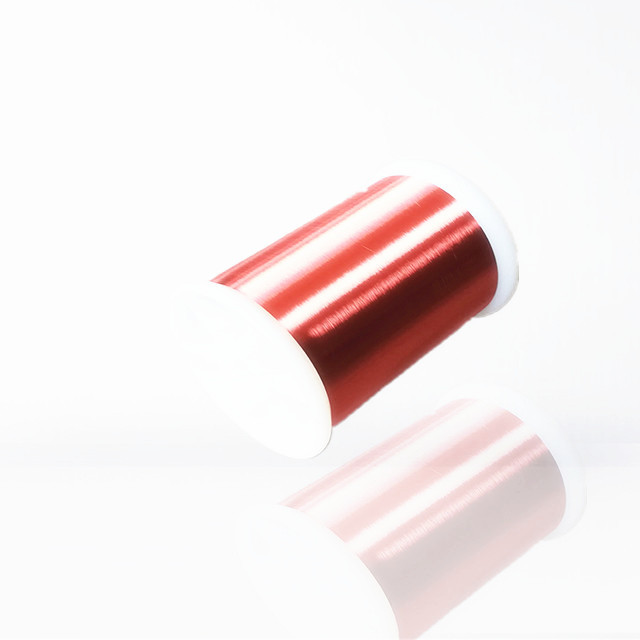

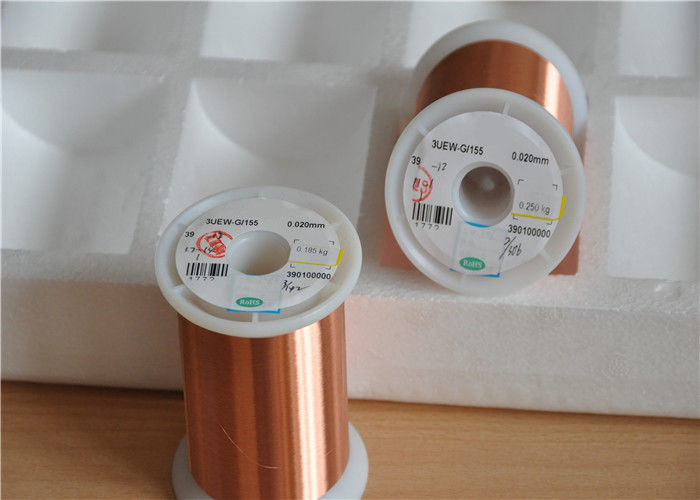

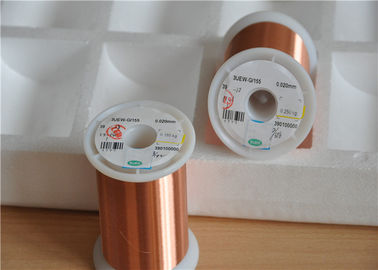

0.015mm 2UWE155 Ultra Fine Enamelled Coated Copper Wire For Watch
Ultra-fine wire - Film-insulated copper magnet wire ranging from AWG 45 (0.018)o AWG 58(.0.012”)
wound with specialized winding anddereeling equipment
The ability to use ultra-ultra fine wire provides important benefits for design engineers.
FEATURES AND BENEFITS
Very good solderable performance.
Very good self-bonding function, suitable bonding strength to meet different application.
Free to color(N,R,G,B,Br)
Easy to unmold.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met
APPLICATIONS
Audio and TV coils
Stator windings
Solenoid coils and air coils
4. Electrical and electronic components
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Max. Overall Diameter |
Breakdown Voltage
|
Electrical Resistance
|
||
|
|
mm |
|
≥ V
|
Ω/km (20℃)
|
||
|
|
|
|
Mandrel Method |
Twisted Method |
Min. |
Max. |
|
0.012 |
---- |
0.015 |
50.000 |
---- |
142.64 |
157.65 |
|
0.013 |
---- |
0.017 |
70.000 |
---- |
118.41 |
133.98 |
|
0.014 |
---- |
0.018 |
70.000 |
---- |
102.64 |
120.45 |
|
0.015 |
---- |
0.020 |
80.000 |
---- |
89.83 |
104.41 |
|
0.016 |
---- |
0.021 |
90.000 |
---- |
74.67 |
97.56 |
|
0.017 |
---- |
0.022 |
90.000 |
---- |
66.60 |
85.75 |
|
0.018 |
---- |
0.023 |
100.000 |
---- |
59.77 |
75.95 |
|
0.019 |
---- |
0.024 |
100.000 |
---- |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.024 |
100.000 |
---- |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.062 |
400.000 |
1200.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.068 |
400.000 |
1200.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.073 |
500.000 |
1200.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.078 |
500.000 |
1200.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.083 |
500.000 |
1200.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.088 |
550.000 |
1200.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.094 |
550.000 |
1200.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.099 |
550.000 |
1200.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.106 |
650.000 |
1200.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.111 |
650.000 |
1200.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.118 |
650.000 |
1200.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.129 |
---- |
1300.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.139 |
---- |
1500.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.149 |
---- |
1500.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.159 |
---- |
1600.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.169 |
---- |
1700.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.180 |
---- |
1700.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.192 |
---- |
2000.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.204 |
---- |
2000.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.214 |
---- |
2000.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.224 |
---- |
2000.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.234 |
---- |
2000.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.245 |
---- |
2200.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.257 |
---- |
2200.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.267 |
---- |
2200.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.277 |
---- |
2300.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.287 |
---- |
2300.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.297 |
---- |
2300.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.313 |
---- |
2300.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.323 |
---- |
2500.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.334 |
---- |
2500.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.344 |
---- |
2500.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.349 |
---- |
2500.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.355 |
---- |
2700.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.365 |
---- |
2700.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.385 |
---- |
2700.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.390 |
---- |
2700.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.406 |
---- |
2900.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.416 |
---- |
2900.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.437 |
---- |
2900.00 |
132.20 |
140.00 |
