0.02mm Polyester Enamelled Copper Wire / Generator Copper Wire For Earphone

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.02mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Temperature: 180℃
Diameter: 0.2mm Material: Copper
Color: Nature/Red Standard: JIS/IEC/NEMA
High Light:

soft copper wire

,

enameled copper magnet wire


Product Description

0.02MM POLYESTER ENAMELED COPPER WIRE GENERATOR COPPER WIRE FOR EARPHONE
Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.
BASE METAL(CONDUCTOR)
The base metal is the material used as the conductor, it is the base of a wire and determine basic features of a wire. It may be copper, or alloy, like CuAg, CuSn, CuNi, CuZn etc.
SIZE
The diameter of base metal is used to describe the size of a wire.
TYPE OF INSULATION
This is the type of enamel used as insulation, including PU,PE, PEI, PAI, PI.
TYPE OF OVER COAT ENAMEL
This is the outer layer insulation, if any, it may be PAI,Nylon, Self Bonding enamel.

FEATURES AND BENEFITS

  • Solderable.

  • Low dielectric loss under high frequency

  • Excellent insulation

  • Excellent performance in high speed winding

  • Free to Color(N,R,G,B,Br)

APPLICATION

  • Transformer for measuring instrument

  • For communication : High frequency coil for transformer, Coil for power source transformer

  • For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures

  • Coil-micro-motor, quartz device, transformer & etc.

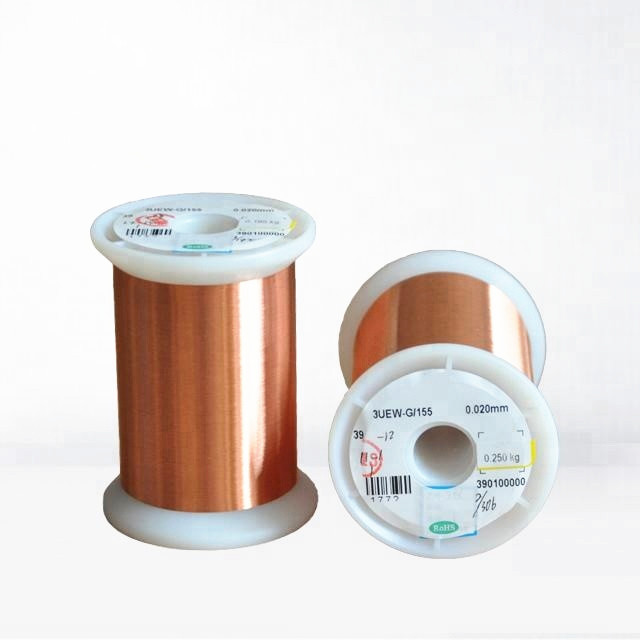

0.02mm Polyester Enamelled Copper Wire / Generator Copper Wire For Earphone 0      0.02mm Polyester Enamelled Copper Wire / Generator Copper Wire For Earphone 1
