Fine Enameled Copper Wire 0.011mm , Polyurethane Coating Electric Motor Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.011-2.00MM
Minimum Order Quantity: 1kg
Price: Negotiation
Packaging Details: Spool with carton
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: Satisfy your demand
Detail Information
Thermal Class: 155 Coating: Polyurethane
Certification: ISO9001/ISO14001 /UL/SGS Color: Red/Green/Normal
Diameter: 0.011-2.00MM Standard: GB IEC JIS NEMA
Conductor: Copper Rated Voltage: 300/500V 450/750V
High Light:

solderable magnet wire

,

magnetic coil wire


Product Description

Fine Enameled Copper Wire 0.011mm , Polyurethane Coating Electric Motor Winding Wire



Enameled wire or magnet wire contains the following elements:

  • Conductor type: The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and Copper-silver alloy, copper-tin alloy, copper-nickel alloy, copper-zinc alloy and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.

  • The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.

  • The thickness of the coating is the thickness of the insulating paint on the conductor. The coating thickness is classified and defined by NEMA, MW1000, JISC3202, and IEC60317 standards. The thickness of the coating determines the pressure level of the enameled wire.

  • Thermal rating refers to the heat resistance level of the enameled wire, showing the temperature index, softening breakdown and thermal shock, etc. It is defined by the NEMA, MW1000, JISC3202, and IEC60317 standards. Thermal rating are 130, 155, 180, 200, 220, 240.



SPOOL SIZE

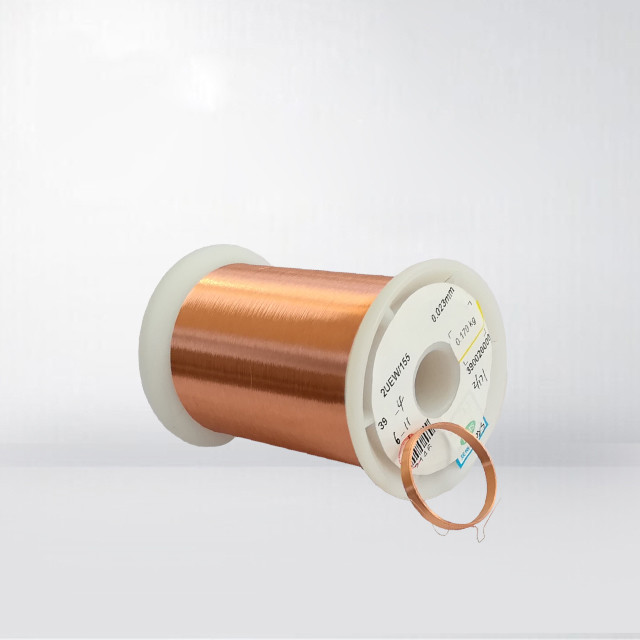

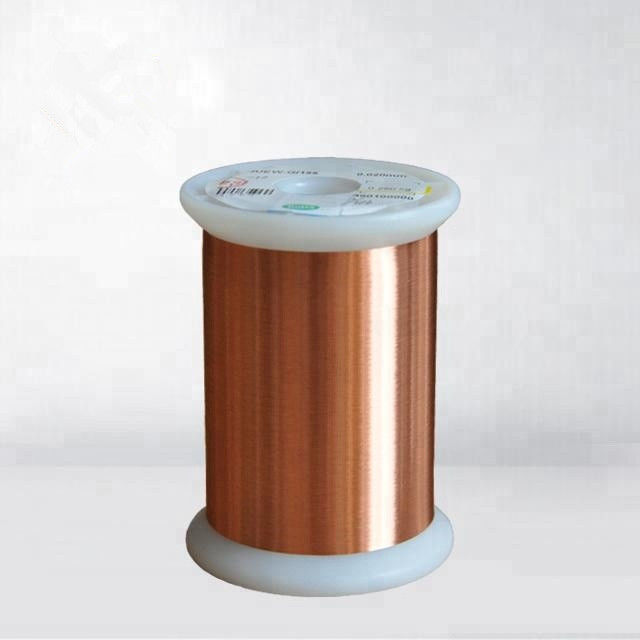

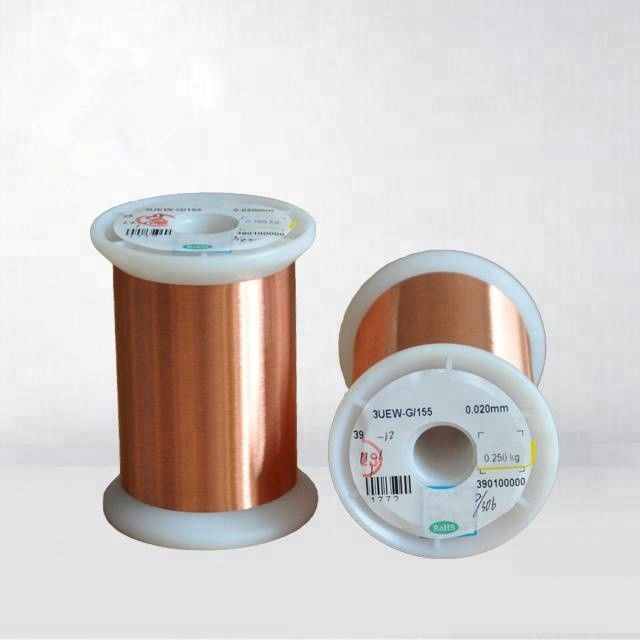

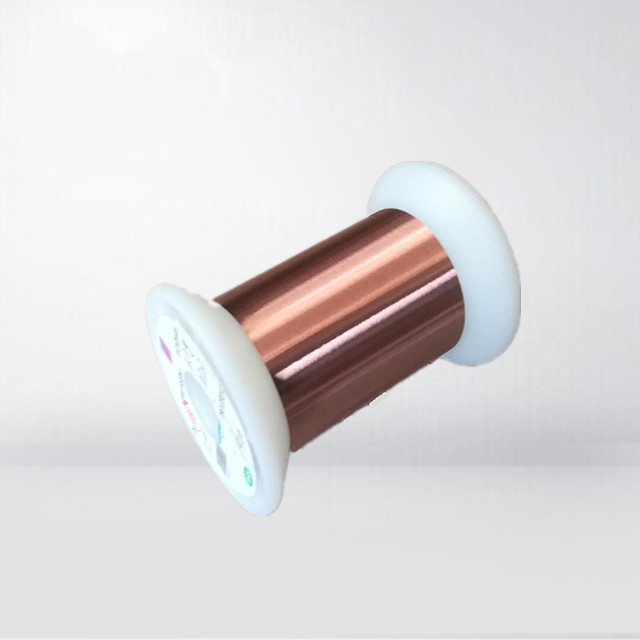

Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 0Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 1


Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 2Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 3
Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 4Fine Enameled Copper Wire 0.011mm  , Polyurethane Coating Electric Motor Winding Wire 5
