Detail Information

Color:	Red/Yellow/Normal	Certification:	ISO9001/ISO14001/UL /SGS
Standard:	IEC NEMA GB JIS	Material:	Copper
Insulation:	Polyester	Diameter:	0.013-3.00mm
Thermal Class:	130/155/180/200/220
High Light:	solderable magnet wire , self bonding magnet wire

Product Description

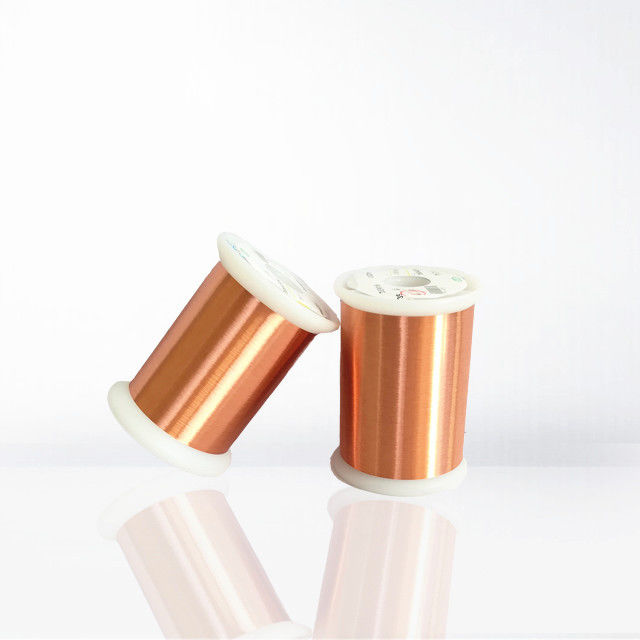

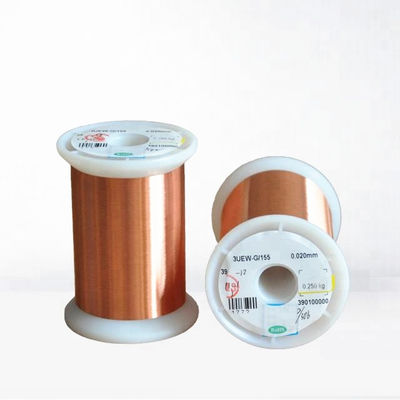

ULTRA FINE COPPER MAGNET WIRE 0.013-3.00MM DIAMETER FOR TRANSFORMER

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

FEATURES

Excellent crazing,abrasion,chemical resistance and provides good thermal stability.
PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF.

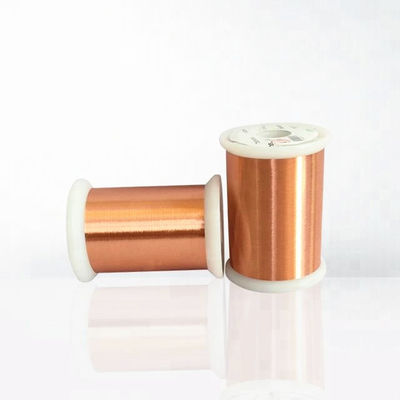

Ultra Fine Copper Magnet Wire 0.013 - 3.00mm Diameter For Transformer 0

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	1200.00	16.00	5.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	16.00	5.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	17.00	5.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	17.00	5.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	17.00	5.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	17.00	5.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	18.00	5.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	19.00	5.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	20.00	5.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	21.00	5.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	22.00	5.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	22.00	5.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	23.00	5.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	23.00	5.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	23.00	5.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	23.00	5.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	24.00	5.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	24.00	5.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	24.00	5.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	25.00	5.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	25.00	5.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	25.00	5.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	25.00	5.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	25.00	5.00	233.50	250.60
0.310	±0.004	0.022	0.344	----	2500.00	25.00	5.00	218.90	234.40
0.315	±0.004	0.022	0.349	----	2500.00	25.00	5.00	212.10	227.00
0.320	±0.004	0.023	0.355	----	2700.00	25.00	5.00	205.60	219.80
0.330	±0.004	0.023	0.365	----	2700.00	25.00	5.00	193.50	206.60
0.350	±0.004	0.023	0.385	----	2700.00	26.00	5.00	172.20	183.40
0.355	±0.004	0.023	0.390	----	2700.00	26.00	5.00	167.40	178.20
0.370	±0.004	0.024	0.406	----	2900.00	26.00	5.00	154.30	163.90
0.380	±0.004	0.024	0.416	----	2900.00	26.00	5.00	146.40	155.30
0.400	±0.004	0.025	0.437	----	2900.00	27.00	5.00	132.20	140.00
0.410	±0.004	0.025	0.447	----	2900.00	27.00	5.00	125.90	133.20
0.440	±0.004	0.025	0.477	----	2900.00	27.00	5.00	109.50	115.50
0.450	±0.004	0.025	0.487	----	2900.00	27.00	5.00	104.70	110.40
0.470	±0.004	0.026	0.508	----	3100.00	27.00	5.00	96.05	101.10
0.500	±0.004	0.026	0.539	----	3100.00	27.00	5.00	84.96	89.23
0.550	±0.004	0.027	0.590	----	3300.00	28.00	5.00	70.31	73.64
0.600	±0.005	0.027	0.640	----	3500.00	28.00	5.00	58.96	62.01
0.650	±0.005	0.027	0.690	----	3500.00	28.00	5.00	50.30	52.77
0.700	±0.005	0.029	0.742	----	3500.00	28.00	5.00	43.42	45.45
0.750	±0.005	0.030	0.794	----	3800.00	28.00	5.00	37.86	39.55
0.800	±0.005	0.032	0.846	----	3800.00	28.00	5.00	33.30	34.73

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	ISO9001/ISO14001/UL/SGS
Model Number:	UEW

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 days
Payment Terms:	T/T, L/C
Supply Ability:	Satisfy your demand
