Motor Winding Enameled Copper Magnet Wire Ultra Fine Self Bonding Wire Uew 155 With Chemical Resistance

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL /SGS
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 days
Payment Terms: T/T, L/C, Negotiation
Supply Ability: Satisfy your demand
Detail Information
Insulation: UEW Certification: ISO9001/ISO14001/UL /SGS
Diameter: 0.012-2.00mm Standard: IEC NEMA GB JIS
Thermal Class: 155 Color: Green Red Normal Black Green
High Light:

soft copper wire

,

enameled copper magnet wire


Product Description

MOTOR WINDING ENAMELED COPPER MAGNET WIRE ULTRA FINE SELF  BONDING WIRE UEW 155 WITH CHEMICAL RESISTANECE

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

FEATURES

  • Excellent crazing,abrasion,chemical resistance and provides good thermal stability.

  • Polyester Enamelled Copper Wire

  • PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF.

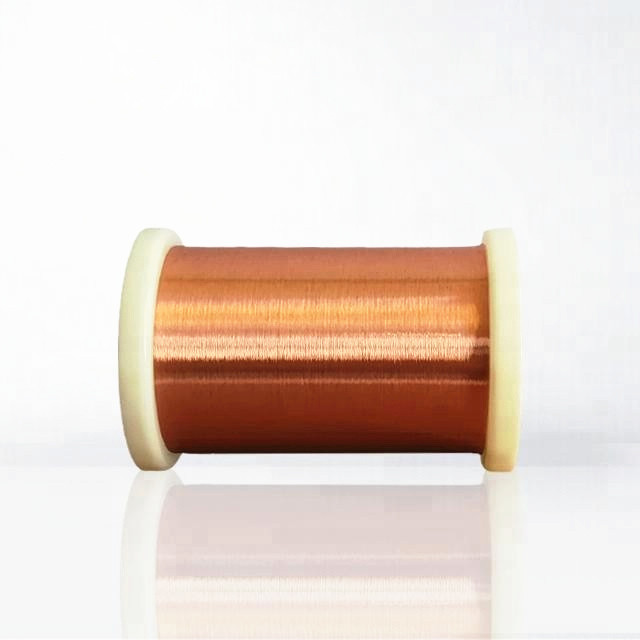

Motor Winding Enameled Copper Magnet Wire Ultra Fine Self Bonding Wire Uew 155 With Chemical Resistance 0

SPECIFICATION

Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50.000

----

5.00

10.00

142.64

157.65

0.013

----

0.015

0.017

70.000

----

5.00

10.00

118.41

133.98

0.014

----

0.016

0.018

70.000

----

5.00

10.00

102.64

120.45

0.015

----

0.017

0.020

80.000

----

5.00

10.00

89.83

104.41

0.016

----

0.018

0.021

90.000

----

5.00

8.00

74.67

97.56

0.017

----

0.019

0.022

90.000

----

5.00

8.00

66.60

85.75

0.018

----

0.020

0.023

100.000

----

5.00

8.00

59.77

75.95

0.019

----

0.021

0.024

100.000

----

5.00

8.00

53.95

67.75

0.020

0.001

0.022

0.024

100.000

----

8.00

8.00

51.83

60.81

0.050

±0.002

0.007

0.062

400.000

1200.00

12.00

5.00

7981.00

9528.00

0.055

±0.002

0.007

0.068

400.000

1200.00

12.00

5.00

6642.00

7815.00

0.060

±0.002

0.007

0.073

500.000

1200.00

14.00

5.00

5614.00

6526.00

0.065

±0.002

0.007

0.078

500.000

1200.00

14.00

5.00

4807.00

5531.00

0.070

±0.002

0.007

0.083

500.000

1200.00

15.00

5.00

4163.00

4747.00

0.075

±0.002

0.007

0.088

550.000

1200.00

15.00

5.00

3640.00

4119.00

0.080

±0.002

0.008

0.094

550.000

1200.00

16.00

5.00

3209.00

3608.00

0.085

±0.002

0.008

0.099

550.000

1200.00

16.00

5.00

2851.00

3187.00

0.090

±0.002

0.010

0.106

650.000

1200.00

16.00

5.00

2550.00

2835.00

0.095

±0.002

0.010

0.111

650.000

1200.00

17.00

5.00

2294.00

2538.00

0.100

±0.002

0.011

0.118

650.000

1200.00

17.00

5.00

2074.00

2286.00

0.110

±0.002

0.011

0.129

----

1300.00

17.00

5.00

1720.00

1882.00

0.120

±0.002

0.011

0.139

----

1500.00

17.00

5.00

1450.00

1577.00

0.130

±0.002

0.011

0.149

----

1500.00

18.00

5.00

1239.00

1340.00

0.140

±0.002

0.011

0.159

----

1600.00

19.00

5.00

1070.00

1153.00

0.150

±0.002

0.011

0.169

----

1700.00

20.00

5.00

934.10

1002.00

0.160

±0.002

0.012

0.180

----

1700.00

21.00

5.00

822.30

879.40

0.170

±0.003

0.013

0.192

----

2000.00

22.00

5.00

721.10

787.10

0.180

±0.003

0.014

0.204

----

2000.00

22.00

5.00

644.40

700.70

0.190

±0.003

0.014

0.214

----

2000.00

23.00

5.00

579.40

627.80

0.200

±0.003

0.014

0.224

----

2000.00

23.00

5.00

523.70

565.70

0.210

±0.003

0.014

0.234

----

2000.00

23.00

5.00

475.70

512.30

0.220

±0.003

0.014

0.245

----

2200.00

23.00

5.00

434.00

466.20

0.230

±0.003

0.016

0.257

----

2200.00

24.00

5.00

397.50

426.00

0.240

±0.003

0.016

0.267

----

2200.00

24.00

5.00

365.50

390.80

0.250

±0.003

0.016

0.277

----

2300.00

24.00

5.00

337.10

359.80

0.260

±0.004

0.018

0.287

----

2300.00

25.00

5.00

309.60

335.00

0.270

±0.004

0.018

0.297

----

2300.00

25.00

5.00

287.40

310.30

0.280

±0.004

0.022

0.313

----

2300.00

25.00

5.00

267.60

288.20

0.290

±0.004

0.022

0.323

----

2500.00

25.00

5.00

249.70

268.40

0.300

±0.004

0.022

0.334

----

2500.00

25.00

5.00

233.50

250.60

0.310

±0.004

0.022

0.344

----

2500.00

25.00

5.00

218.90

234.40

0.315

±0.004

0.022

0.349

----

2500.00

25.00

5.00

212.10

227.00

0.320

±0.004

0.023

0.355

----

2700.00

25.00

5.00

205.60

219.80

0.330

±0.004

0.023

0.365

----

2700.00

25.00

5.00

193.50

206.60

0.350

±0.004

0.023

0.385

----

2700.00

26.00

5.00

172.20

183.40

0.355

±0.004

0.023

0.390

----

2700.00

26.00

5.00

167.40

178.20

0.370

±0.004

0.024

0.406

----

2900.00

26.00

5.00

154.30

163.90

0.380

±0.004

0.024

0.416

----

2900.00

26.00

5.00

146.40

155.30

0.400

±0.004

0.025

0.437

----

2900.00

27.00

5.00

132.20

140.00

0.410

±0.004

0.025

0.447

----

2900.00

27.00

5.00

125.90

133.20

0.440

±0.004

0.025

0.477

----

2900.00

27.00

5.00

109.50

115.50

0.450

±0.004

0.025

0.487

----

2900.00

27.00

5.00

104.70

110.40

0.470

±0.004

0.026

0.508

----

3100.00

27.00

5.00

96.05

101.10

0.500

±0.004

0.026

0.539

----

3100.00

27.00

5.00

84.96

89.23

0.550

±0.004

0.027

0.590

----

3300.00

28.00

5.00

70.31

73.64

0.600

±0.005

0.027

0.640

----

3500.00

28.00

5.00

58.96

62.01

0.650

±0.005

0.027

0.690

----

3500.00

28.00

5.00

50.30

52.77

0.700

±0.005

0.029

0.742

----

3500.00

28.00

5.00

43.42

45.45

0.750

±0.005

0.030

0.794

----

3800.00

28.00

5.00

37.86

39.55

0.800

±0.005

0.032

0.846

----

3800.00

28.00

5.00

33.30

34.73
