Polyester Enameled Coated Copper Wire Nema Iec Ultra Fine Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /SGS/UL
Model Number: PEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Supply Ability: Satisfy your demand
Detail Information
Conductor: Copper Insulation: Polyester
Certification: ISO9001/ISO14001/UL /SGS Diameter: 0.013-2.00mm
Standard: IEC NEMA GB JIS Thermal Class: 155
High Light:

soft copper wire

,

self solderable copper wire


Product Description

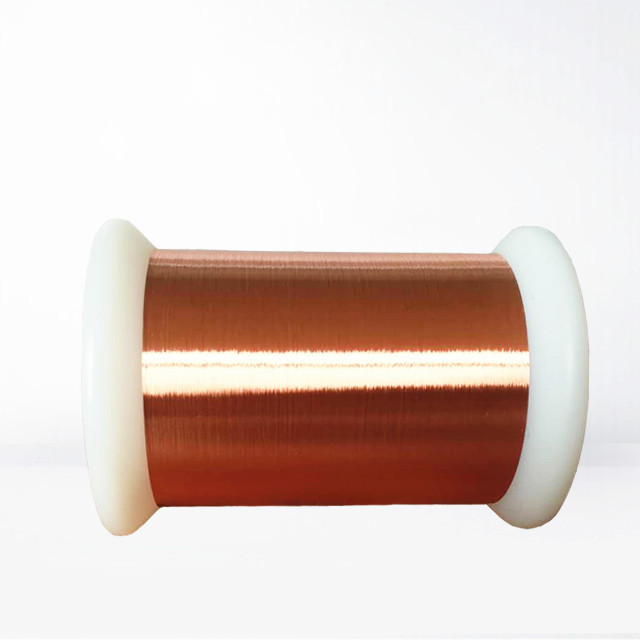

POLYESTER ENAMELED COATED COPPER WIRE NEMA LEC ULTRA FINE MAGNET WIRE

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

FEATURES AND BENEFITS

1) Excellent crazing,abrasion,chemical resistance and provides good thermal stability.
Polyester Enameled Copper Wire
2) PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF.

ISULATION DESCRIPTION

PEW is a film insulation compcsed of Polyisocy-anate & Polyol. designed for continuous peration at 155, provids good thermal stability and excellent dielectric performance.

Polyester Enameled Coated Copper Wire Nema Iec Ultra Fine Magnet Wire 0

Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50.000

----

5.00

10.00

142.64

157.65

0.013

----

0.015

0.017

70.000

----

5.00

10.00

118.41

133.98

0.014

----

0.016

0.018

70.000

----

5.00

10.00

102.64

120.45

0.015

----

0.017

0.020

80.000

----

5.00

10.00

89.83

104.41

0.016

----

0.018

0.021

90.000

----

5.00

8.00

74.67

97.56

0.017

----

0.019

0.022

90.000

----

5.00

8.00

66.60

85.75

0.018

----

0.020

0.023

100.000

----

5.00

8.00

59.77

75.95

0.019

----

0.021

0.024

100.000

----

5.00

8.00

53.95

67.75

0.020

0.001

0.022

0.024

100.000

----

8.00

8.00

51.83

60.81

0.050

±0.002

0.007

0.062

400.000

1200.00

12.00

5.00

7981.00

9528.00

0.055

±0.002

0.007

0.068

400.000

1200.00

12.00

5.00

6642.00

7815.00

0.060

±0.002

0.007

0.073

500.000

1200.00

14.00

5.00

5614.00

6526.00

0.065

±0.002

0.007

0.078

500.000

1200.00

14.00

5.00

4807.00

5531.00

0.070

±0.002

0.007

0.083

500.000

1200.00

15.00

5.00

4163.00

4747.00

0.075

±0.002

0.007

0.088

550.000

1200.00

15.00

5.00

3640.00

4119.00

0.080

±0.002

0.008

0.094

550.000

1200.00

16.00

5.00

3209.00

3608.00

0.085

±0.002

0.008

0.099

550.000

1200.00

16.00

5.00

2851.00

3187.00

0.090

±0.002

0.010

0.106

650.000

1200.00

16.00

5.00

2550.00

2835.00

0.095

±0.002

0.010

0.111

650.000

1200.00

17.00

5.00

2294.00

2538.00

0.100

±0.002

0.011

0.118

650.000

1200.00

17.00

5.00

2074.00

2286.00

0.110

±0.002

0.011

0.129

----

1300.00

17.00

5.00

1720.00

1882.00

0.120

±0.002

0.011

0.139

----

1500.00

17.00

5.00

1450.00

1577.00

0.130

±0.002

0.011

0.149

----

1500.00

18.00

5.00

1239.00

1340.00

0.140

±0.002

0.011

0.159

----

1600.00

19.00

5.00

1070.00

1153.00

0.150

±0.002

0.011

0.169

----

1700.00

20.00

5.00

934.10

1002.00

0.160

±0.002

0.012

0.180

----

1700.00

21.00

5.00

822.30

879.40

0.170

±0.003

0.013

0.192

----

2000.00

22.00

5.00

721.10

787.10

0.180

±0.003

0.014

0.204

----

2000.00

22.00

5.00

644.40

700.70

0.190

±0.003

0.014

0.214

----

2000.00

23.00

5.00

579.40

627.80

0.200

±0.003

0.014

0.224

----

2000.00

23.00

5.00

523.70

565.70

0.210

±0.003

0.014

0.234

----

2000.00

23.00

5.00

475.70

512.30

0.220

±0.003

0.014

0.245

----

2200.00

23.00

5.00

434.00

466.20

0.230

±0.003

0.016

0.257

----

2200.00

24.00

5.00

397.50

426.00

0.240

±0.003

0.016

0.267

----

2200.00

24.00

5.00

365.50

390.80

0.250

±0.003

0.016

0.277

----

2300.00

24.00

5.00

337.10

359.80

0.260

±0.004

0.018

0.287

----

2300.00

25.00

5.00

309.60

335.00

0.270

±0.004

0.018

0.297

----

2300.00

25.00

5.00

287.40

310.30

0.280

±0.004

0.022

0.313

----

2300.00

25.00

5.00

267.60

288.20

0.290

±0.004

0.022

0.323

----

2500.00

25.00

5.00

249.70

268.40

0.300

±0.004

0.022

0.334

----

2500.00

25.00

5.00

233.50

250.60

0.310

±0.004

0.022

0.344

----

2500.00

25.00

5.00

218.90

234.40

0.315

±0.004

0.022

0.349

----

2500.00

25.00

5.00

212.10

227.00

0.320

±0.004

0.023

0.355

----

2700.00

25.00

5.00

205.60

219.80

0.330

±0.004

0.023

0.365

----

2700.00

25.00

5.00

193.50

206.60

0.350

±0.004

0.023

0.385

----

2700.00

26.00

5.00

172.20

183.40

0.355

±0.004

0.023

0.390

----

2700.00

26.00

5.00

167.40

178.20

0.370

±0.004

0.024

0.406

----

2900.00

26.00

5.00

154.30

163.90

0.380

±0.004

0.024

0.416

----

2900.00

26.00

5.00

146.40

155.30

0.400

±0.004

0.025

0.437

----

2900.00

27.00

5.00

132.20

140.00

0.410

±0.004

0.025

0.447

----

2900.00

27.00

5.00

125.90

133.20

0.440

±0.004

0.025

0.477

----

2900.00

27.00

5.00

109.50

115.50

0.450

±0.004

0.025

0.487

----

2900.00

27.00

5.00

104.70

110.40

0.470

±0.004

0.026

0.508

----

3100.00

27.00

5.00

96.05

101.10

0.500

±0.004

0.026

0.539

----

3100.00

27.00

5.00

84.96

89.23

0.550

±0.004

0.027

0.590

----

3300.00

28.00

5.00

70.31

73.64

0.600

±0.005

0.027

0.640

----

3500.00

28.00

5.00

58.96

62.01

0.650

±0.005

0.027

0.690

----

3500.00

28.00

5.00

50.30

52.77

0.700

±0.005

0.029

0.742

----

3500.00

28.00

5.00

43.42

45.45

0.750

±0.005

0.030

0.794

----

3800.00

28.00

5.00

37.86

39.55

0.800

±0.005

0.032

0.846

----

3800.00

28.00

5.00

33.30

34.73
