| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.02 - 1.8mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Flat Wire | Insulation: | AIW/EIW/UEW |
|---|---|---|---|
| Thermal Class: | 155-220℃ | Color: | Red/blue/green |
| Conductor Material: | Flat Copper | Width Range: | 0.155-7.5mm |
| High Light: | square magnet wire,high voltage copper wire |
||

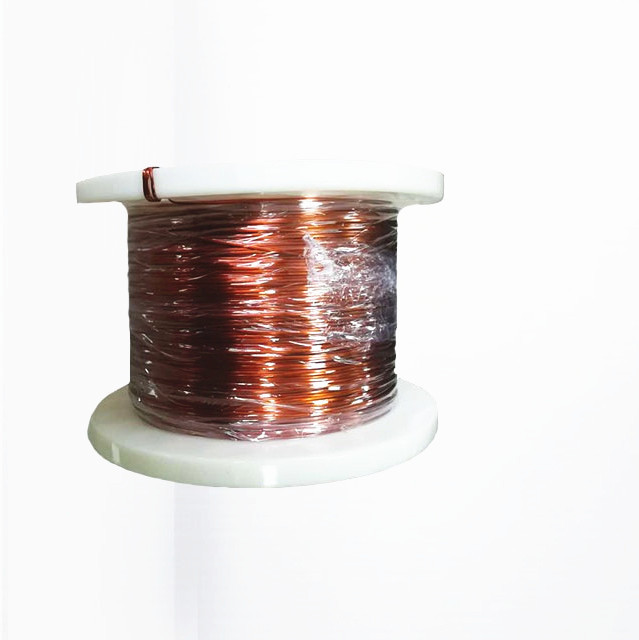

0.02 - 1.8MM ENAMEL COATED COPPER WIRE SUPER THIN FLAT RECTANGULAR MAGNET COPPER WIRE
Enamelled Rectangular Copper Magnet wire are used as the wire in electromagnets that use electricity to generate a magnetic field. Enameled Rectangular Wire and Enameled Rectangular or Flat Copper Wire /Strip is wrapped in a tight coil. When an electric charge is applied, the wires generate the magnetic field. Flat Enamelled copper wire have a wide variety of applications, including use in automobiles, motors, transformers and industrial machineries.
FEATURES AND BENEFITS
High conductivity
Shock resistance
Excellent durability
Superior strength
Rust resistant
Low maintenance
Affordability
APPLICATION
Excellent bending property
High flexibility of the enamel
Good resistance to abrasion
High mechanical property
Higher thermal property
Good resistance to refrigerant
|
Product |
Class |
Solderable |
Self bonding |
Product Range |
||
|
Width(mm) |
Thickness(mm) |
Width-Thickness Ratio |
||||
|
AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AIWJ |
200℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EIWJ |
180℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
SEIWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
155℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
130℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/SBWJ |
180℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
SEI/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
155℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
130℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
