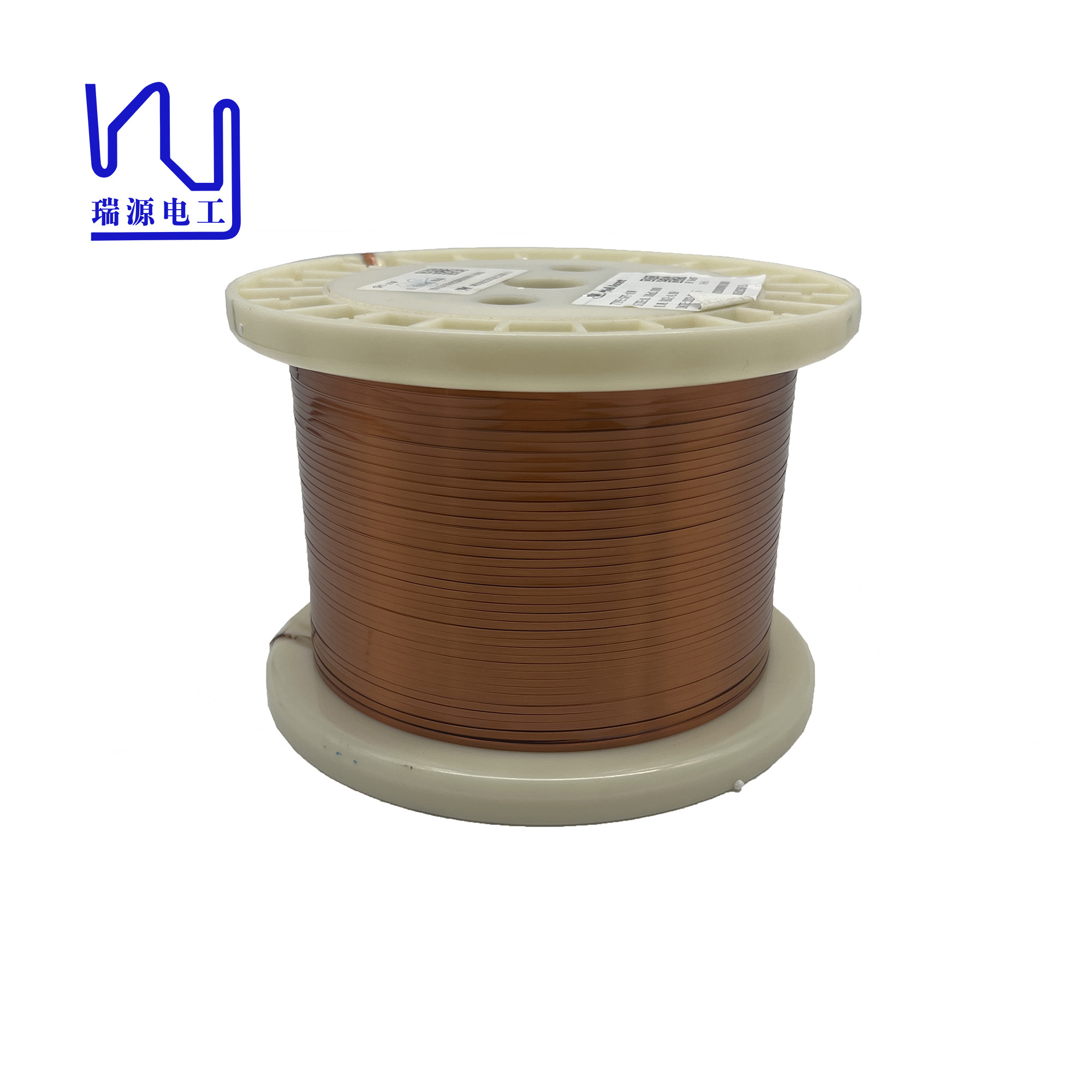

Name: 2.0mm x 0.1mm Enameled Flat Copper Wire for Energy Vehicles
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: AIW220
Price: 24.06 USD
Availability: InStock

2.0mm x 0.1mm Enameled Flat Copper Wire for Energy Vehicles

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	AIW220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	T/T, Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width Of Conductor:	2.0mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness Of Conductor:	0.1mm
Applications:	Transformers,motors, Vehicles, And Other Industries	Thermal Grade:	220
Key Word:	2.0mm X 0.1mm Enameled Flat Copper Wire For Energy Vehicles
Highlight:	2mm Enameled Flat Copper Wire , 0.1mm Enameled Flat Copper Wire

Product Description

2mm x 0.1mm Enameled Flat Copper Wire for Energy Vehicles

AIW220 flat enameled copper wire is perfect for a variety of applications. It can be used for motor winding in various industries, including automotive, aerospace, and even in household appliances. Copper wire is the perfect material for motor winding because of its excellent conductivity and durability.

The breakdown voltage of this copper wire is 1.067kv, making it ideal for high-voltage applications. Its overall dimension is 0.1mm, making it easy to handle and install. The rectangular shape of this product ensures that it fits perfectly in motor windings, making the motor more efficient and reliable.

TEST REPORT
Model		SFT-AIW					Date
Size(mm):		0.100 × 2.000					Lot
Item		Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown
Item		Thickness	Width	Thickness	Width	Thickness	Width	voltage
Unit		mm	mm	mm	mm	mm	mm	kv
SPEC	Ave	0.1	2	0.025	0.025
	Max	0.109	2.06	0.04	0.04	0.15	2.1
	Min	0.091	1.94	0.01	0.01			0.7
No. 1		0.104	2.003	0.021	0.012	0.146	2.027	1.063
No. 2								1.085
No. 3								1.132
No. 4								1.041
No. 5								1.015
Avg		0.104	2.003	0.021	0.012	0.146	2.027	1.067
Number of reading		1	1	1	1	1	1	5
Min. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.015
Max. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.132
Range		0	0	0	0	0	0	0.117
