Super Thin Rectangular Magnet Wire , 0.04 - 1.8mm Flat Copper Wire For Automotive

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.04 - 1.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Size Range: 0.04-1.8mm Color: Red/Purple/Gold
Material: Rectangular Copper Standard: IEC/JIS/NEMA
Solderability: Directly Conductor: Copper
Conductor Width: 0.155~7.5mm
High Light:

rectangular magnet wire

,

square magnet wire


Product Description

ULTRA FINE MAGNET WIRE SUPER THIN RECTANGULAR-SHAPE COPPERWIRE

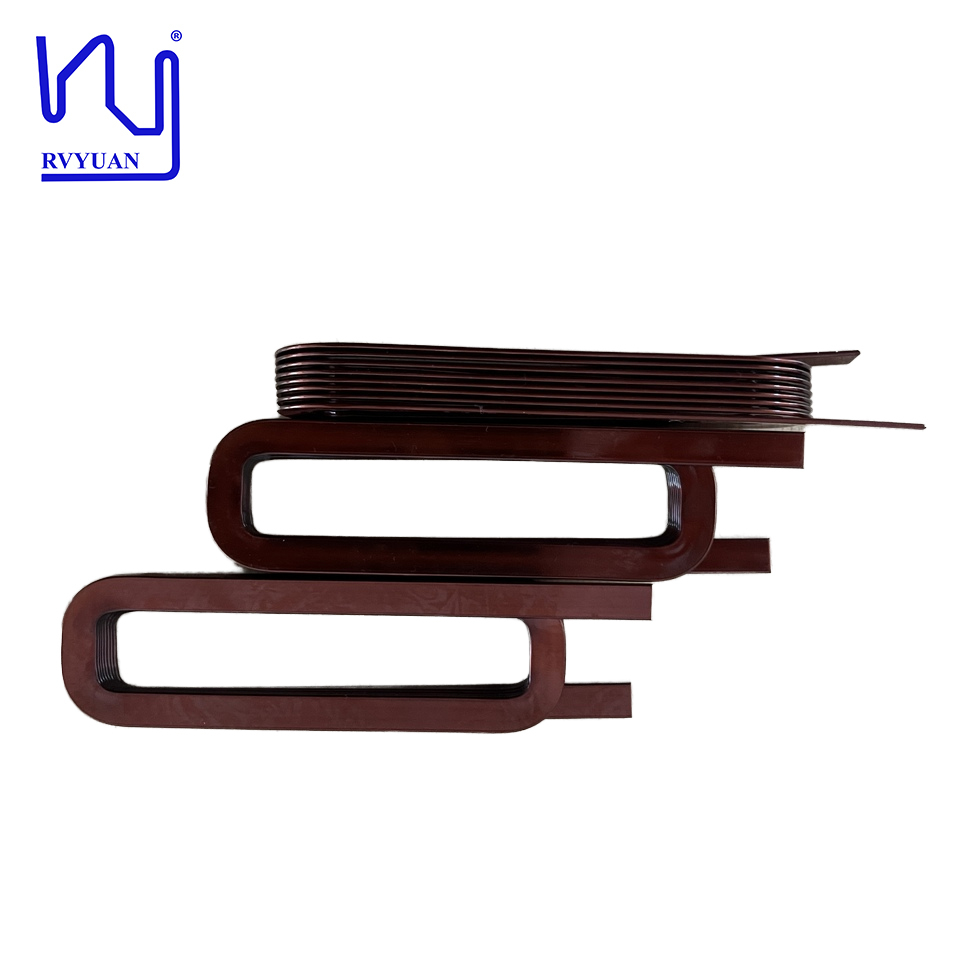

Super Thin Rectangular Magnet Wire , 0.04 - 1.8mm Flat Copper Wire For Automotive 0   Super Thin Rectangular Magnet Wire , 0.04 - 1.8mm Flat Copper Wire For Automotive 1

Enamelled Rectangular Copper Magnet wire are used as the wire in electromagnets that use electricity to generate a magnetic field. Enameled Rectangular or Flat Aluminium Wire and Enameled Rectangular or Flat Copper Wire /Strip is wrapped in a tight coil. When an electric charge is applied, the wires generate the magnetic field. Flat Enamelled Aluminium Wire and Flat Enamelled copper wire have a wide variety of applications, including use in automobiles, motors, transformers and industrial machineries. Round Enameled Aluminium Wire and Round Enameled copper wire are also found in smaller devices and home appliances, such as computers, televisions etc.

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

FEATURE

1. Conductor thickness: 0.04~1.8mm
2. Conductor width: 0.155~7.5mm
3. Equivalent round wire diameter:0.12~3.2mm
4. Width-Thickness Ratio: 1:1.5~1:25 ( Flat Wire)
5. Width-Thickness Ratio: 1:1 ( Square Wire)

APPLICATION

1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine application





SPECIFICATION

Parameter

Class 130

Class 155

Class-180

Class-200

Class220

Class-240

Standards

IEC60317-16 GB/T7095.7

60317-16 GB/T7095.3

60317-28 GB/T7095.4

MW 36 60317-29 BS6811 GB/T7095.6

MW 18 60317-18 GB/T7095.2

MW 20 60317-47 GB/T7095.5

Thermal Class

130°C

155°C

180°C

200°C

120°C

240°C

Enamel Base Coat

Polyester

Modified Polyester

Polyester-Imide

Polyester-Imide

Polyester-formal

Polyimide

Enamel Top Coat







Polyester-Imide





Range of insulation thickness

IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm

Performance

Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property5.

1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance

1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent thermal resistance suitable for any electric equipment

that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation.

Application

Dry and oil-immersed 2.Electrical equipment

1.Dry and oil-immersed 2.Electrical equipment

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coi1.

Dry and oil-immersed transformer 2.Electrical equipment

1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability

Heat shock

155°C

175°C

200°C

220°C

155°C

300°C
