Self Bonding Fine Rectangular Copper Wire Enamelled Copper Wire For Small Generator

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.155-7.5mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Conductor Width: 0.155-7.5mm Insulation: AIW/EIW/EI/UEW
Conductor: Rectangular Copper Width Thickness Ratio: 1:1.5-1:25
Standard: JIS/NEMA/IEC Size: 0.02-1.8

Product Description

SELF BONDING FINE RECTANGULAR COPPER WIRE ENAMELED COPPER WIRE FOR SMALL GENERATOR

Enameled Rectangular or Flat Copper Wire /Strip is wrapped in a tight coil. When an electric charge is applied, the wires generate the magnetic field.   Flat Enamelled copper wire have a wide variety of applications, including use in automobiles, motors, transformers and industrial machineries. Round  Enameled copper wire are also found in smaller devices and home appliances, such as computers, televisions etc.

FEATURES AND BENEFITS

  • High cubage ratio creates possibility of smaller and lighter electronic coils or electric motors.

  • High conductor density in unit area, small size coil can reach high electricity efficiency.

  • Outstanding better radiation performance and electromagnetic effects compared with round copper wires

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

APPLICATION
  • Small type Gerators ( For no-Utility generation )

  • Standard motor

  • Small type motor ( Electric household appliance, Toys & etc. )

  • Motors for electric tool ( Grinders drills, saws, planers & etc. )

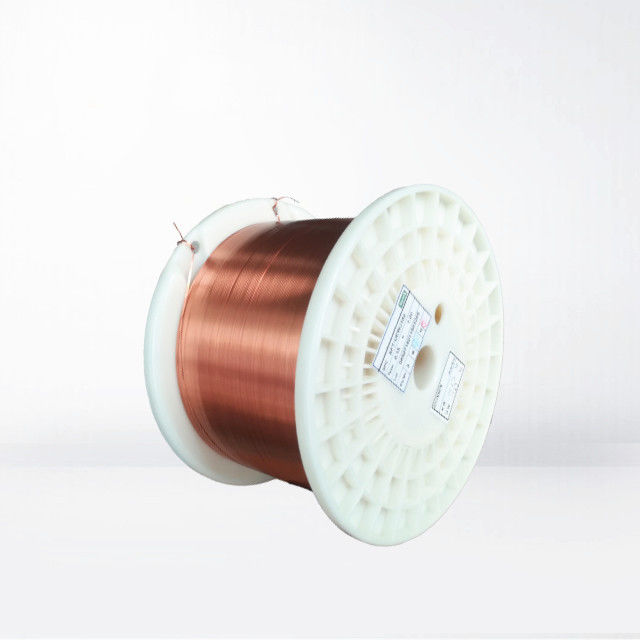

Self Bonding Fine Rectangular Copper Wire Enamelled Copper Wire For Small Generator

SPECIFICATION

Insulation

Thermal Class

Solder ability

Self-bonding

Size Range

Width(mm)

Thickness(mm)

Ratio

AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200℃

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180℃

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130℃

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180℃

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130℃

0

0

0.155--7.5

0.02-1.8

1.25
