| Product Name: | Rectangular Enamelled Magnet Wire | Conductor Width: | 0.155-7.5mm |
|---|---|---|---|
| Insulation: | PEW/UEW/EIW | Conductor: | Rectangular Copper |
| Conductor Type: | SOLID | Standard: | JIS/NEMA/IEC |
| Size: | 0.02-1.8 | ||
| Highlight: | square magnet wire,high voltage copper wire |
||

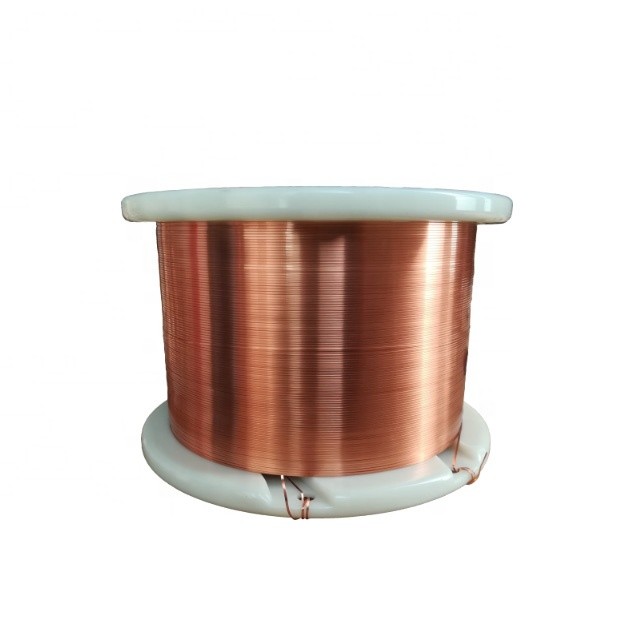

0.155-7.5MM COLORED ENAMELED COPPER WIRE RECTANGULAR ENAMELED COPPER WINDING WIRE
In the electrical industry, rectangular wires with defined corner radii are used in motors, generators and transformers.In comparison with round wires, rectangular wires have the advantage of allowing more compact windings, thereby delivering both space and weight savings. The electrical efficiency is also better, which saves energy.Especially when the wires are meant to be insulated with enamel, the precision of width and thickness as well as the geometry of the corner radius is of great importance for the defect-free use in electrical coil
FEATURES AND BENEFITS
High resistance to thermoplastic flow.
Solvents resistance.
Compatibility with varnishes
Solder able without previous removal of film.
Excellent dielectric characterist
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
APPLICATIONS
Small type Gerators ( For no-Utility generation )
Standard motor
Small type motor ( Electric household appliance, Toys & etc. )
Motors for electric tool ( Grinders drills, saws, planers & etc. )
|
Parameter |
130 |
155 |
180 |
200 |
120 |
40 |
|
Standars |
IEC60317-16 GB/T7095.7 |
60317-16 GB/T7095.3 |
60317-28 GB/T7095.4 |
MW 36 60317-29 BS6811 GB/T7095.6 |
MW 18 60317-18 GB/T7095.2 |
MW 20 60317-47 GB/T7095.5 |
|
Thermal Class |
130°C |
155°C |
180°C |
200°C |
120°C |
240°C |
|
Enamel Base Coat |
Polyester |
Modified Polyester |
Polyester-Imide |
Polyester-Imide |
Polyester-formal |
Polyimide |
|
Enamel Top Coat |
|
|
|
Polyester-Imide |
|
|
|
Range of insulation thickness |
IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm |
|||||
|
Performance |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property |
1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance |
1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
|
Application |
1.Dry and oil-immersed 2.Electrical equipment |
1.Dry and oil-immersed 2.Electrical equipment |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
|
Heat shock |
155°C |
175°C |
200°C |
220°C |
155°C |
300°C |
